TP-Link EAP683 UR Omada AX6000 Ceiling Mount Wi-Fi 6 Access Point

SKU: EAP683-UR MPN: EAP683 UR TP-Link

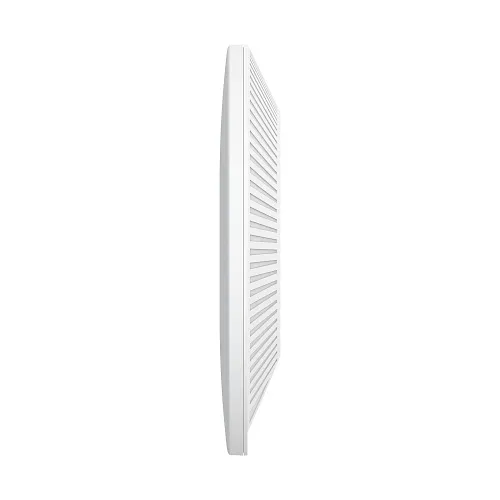

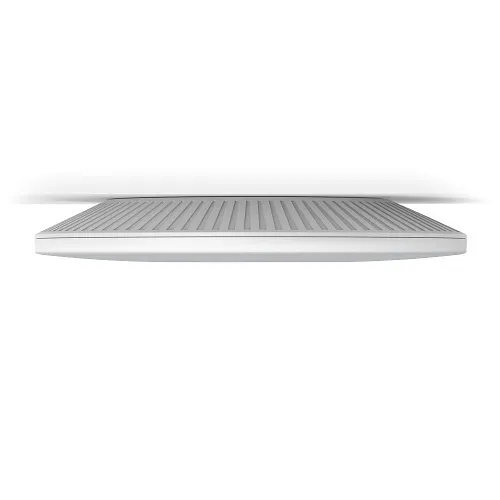

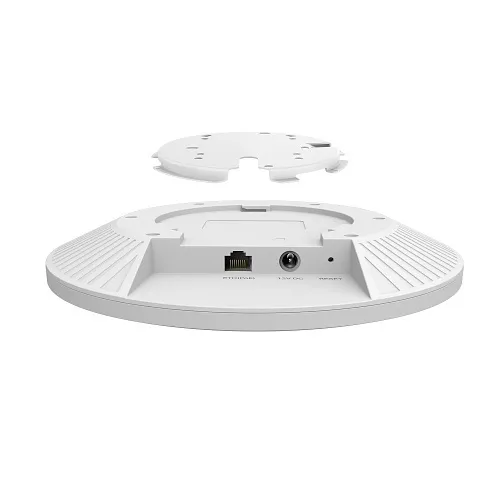

Image of FP-EAP683UR
Product images for TP-Link EAP683 UR Omada AX6000 Ceiling Mount Wi-Fi 6 Access Point. 4 image(s) available. Click on image to view full size.

Key Features

  • High-capacity Wi‑Fi 6 performance that supports dense device environments and smooth high-bandwidth applications like video surveillance and monitoring
  • 5.81 Gbps combined AX6000 throughput plus dual-band radios for low-latency connectivity and reliable client experience
  • 2.5GbE wired uplink for faster backhaul and smoother aggregation to switches or NVRs in security and monitoring systems
  • Centralized Omada SDN cloud management for simplified deployment, monitoring and firmware updates across multiple sites
  • Flexible ceiling or wall mount design with discreet internal antennas for clean installations in offices, retail, hotels and secure facilities

Quick Specifications

Product Model
EAP683 UR
Brand Name
TP-Link
Product Line
Omada
Product Name
Omada EAP683 UR Wireless Access Point
View Full Technical Specifications

Product Information Tabs

Overview

Deliver fast, reliable wireless for demanding business and security environments with the TP‑Link Omada EAP683 UR AX6000 ceiling mount Wi‑Fi 6 access point. Purpose-built for high-density deployments, this TP-Link wireless access point combines Wi‑Fi 6 efficiency with up to 5.81 Gbps combined throughput and dual‑band performance to keep IP cameras, access control, mobile clients and point-of-sale systems responsive. A 2.5GbE port provides a high-speed wired uplink to switches or NVRs, reducing bottlenecks in surveillance and monitoring networks. Omada’s Software Defined Networking (SDN) gives IT teams centralized cloud management for provisioning, monitoring and security policy enforcement across multiple sites, simplifying large-scale rollouts. Enterprise-grade encryption including WPA3 ensures robust protection for sensitive data and connected devices. The low-profile ceiling/wall mount and internal antennas deliver unobtrusive coverage for offices, retail stores, hospitality sites and secure facilities. Scale your network with confidence — ideal for networking, security, surveillance and monitoring applications. Contact sales or add to cart to start deploying reliable business Wi‑Fi today.

Features

  • High-capacity Wi‑Fi 6 performance that supports dense device environments and smooth high-bandwidth applications like video surveillance and monitoring
  • 5.81 Gbps combined AX6000 throughput plus dual-band radios for low-latency connectivity and reliable client experience
  • 2.5GbE wired uplink for faster backhaul and smoother aggregation to switches or NVRs in security and monitoring systems
  • Centralized Omada SDN cloud management for simplified deployment, monitoring and firmware updates across multiple sites
  • Flexible ceiling or wall mount design with discreet internal antennas for clean installations in offices, retail, hotels and secure facilities
General Information
Brand Name TP-Link
Manufacturer TP-LINK Technologies Co., Ltd
Product Line Omada
Product Name Omada EAP683 UR Wireless Access Point
Product Type Wireless Access Point
Product Model EAP683 UR
Manufacturer Part Number EAP683UR
Technical Information
Network Band Dual Band
Data Encryption Yes
MIMO Technology Yes
Wi-Fi Generation Wi-Fi 6
Power Consumption 20.43W
Wireless LAN Standard 802.11 a/b/g/n/ac/ax
Beamforming Technology Yes
Wireless Transmission Speed 5.81 Gbps
Interfaces/Ports
Number of Network (RJ-45) Ports 1
Network & Communication
Ethernet Technology 2.5 Gigabit Ethernet
Others
Model Number Replaces EAP683 LR
Physical Characteristics
Color White
Depth 8.7"
Width 8.7"
Height 1.3"
Form Factor Ceiling Mount, Wall Mount
Antenna Form Factor Internal
Product Information
Mount Type Ceiling Mount, Wall Mount
Tuner
Frequency Band 2.40GHz, 5GHz
Wireless Specifications
Encryption Standard WPA2-ENT, WPA2-PSK, WPA3-ENT, WPA3-Personal, WPA-ENT, WPA-PSK
Miscellaneous
Package Contents Ceiling/Wall Mounting Kits, EAP683 UR, Installation Guide
Environmentally Friendly Yes
Environmental Certification CE, FCC, RoHS
