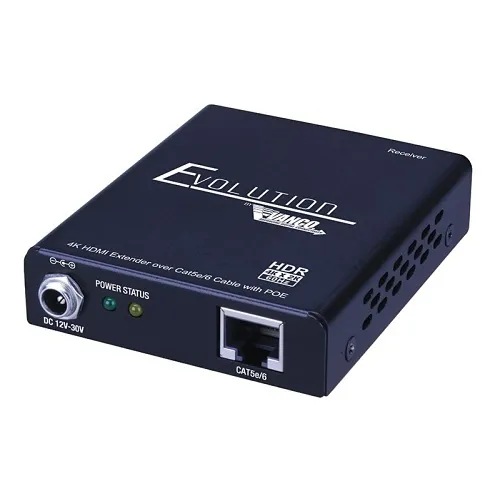

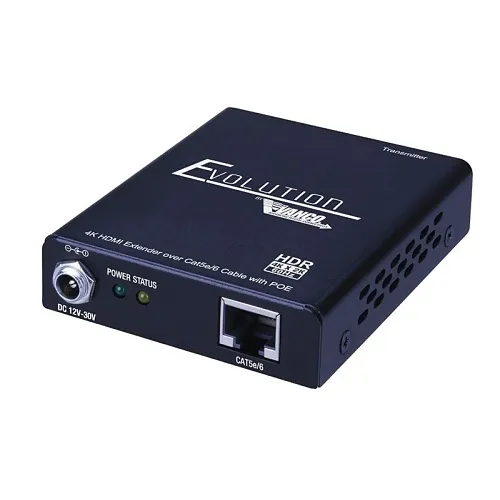

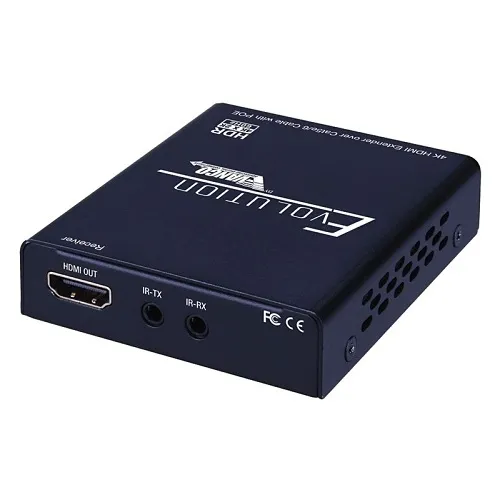

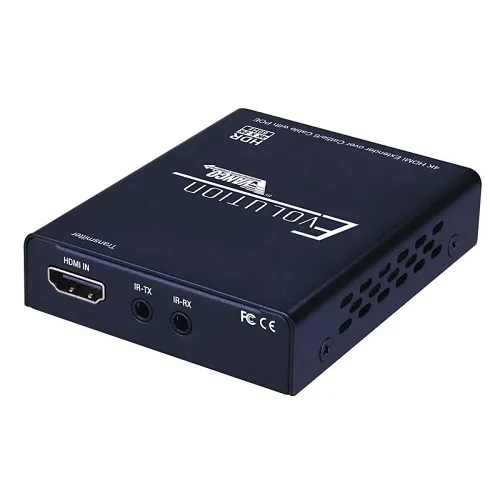

Evolution EV4K2006 4K HMDI Extender
Image of 8
Key Features
- Extend 4K60 HDR video up to 164ft/50m over a single Cat5e/6 cable for remote displays and surveillance cameras
- Bidirectional PoE lets you power either the transmitter or receiver from one supply, reducing outlets and installation time
- Auto EDID and EQ provide true plug-and-play compatibility with displays and sources, minimizing setup and support calls
- Bi-directional wideband IR enables remote control of sources or displays—ideal for monitoring, security and digital signage
- Slim, compact housings simplify rack, cabinet or discreet wall-mount installations in commercial AV and security systems
Quick Specifications
- Product Model
- EV4K2006
- Brand Name
- Evolution by Vanco
- Product Line
- Evolution
- Product Name
- Evolution 4K HDMI Extender
Frequently Bought Together
Evolution EV4K2006 4K HMDI Extender
$309.04
8 items selected
Total: $2,546.46
Explore the details
Product information
EV4K2006
Overview

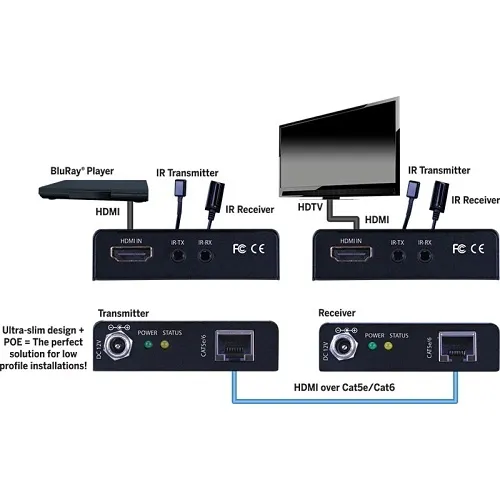

Extend crystal‑clear 4K video and remote control to distant displays using a single, cost-effective Ethernet run—perfect for security, surveillance, monitoring stations and commercial AV. The Evolution by Vanco EV4K2006 4K HDMI Extender set delivers 4K60 with 4:4:4 chroma and HDR support up to 164ft/50m (4K30 up to 130ft/40m), while remaining HDCP 2.2 and HDR10 compatible for modern video sources. Bidirectional PoE allows either the transmitter or receiver to be powered over Cat5e/6, cutting power cabling and simplifying installs at remote camera heads, control rooms, or digital signage endpoints. Automatic EDID and EQ management remove manual tuning—ensuring reliable color, audio and handshake compatibility with displays and recorders. Wideband bi-directional IR pass-through plus support for DTS‑HD and Dolby TrueHD make this a complete AV extension solution for installers and integrators. The EV4K2006’s slim, compact design fits tight spaces and reduces rack clutter. For dependable long-distance HDMI extension in security, surveillance and AV monitoring projects, choose the EV4K2006 to streamline installation and improve system reliability.
Features
- Extend 4K60 HDR video up to 164ft/50m over a single Cat5e/6 cable for remote displays and surveillance cameras
- Bidirectional PoE lets you power either the transmitter or receiver from one supply, reducing outlets and installation time
- Auto EDID and EQ provide true plug-and-play compatibility with displays and sources, minimizing setup and support calls
- Bi-directional wideband IR enables remote control of sources or displays—ideal for monitoring, security and digital signage
- Slim, compact housings simplify rack, cabinet or discreet wall-mount installations in commercial AV and security systems
| General Information | |
|---|---|
| Brand Name | Evolution by Vanco |
| Manufacturer | Vanco International, Inc |
| Product Line | Evolution |
| Product Name | Evolution 4K HDMI Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Product Model | EV4K2006 |
| Country of Origin | CN |
| Manufacturer Part Number | EV4K2006 |
| Technical Information | |
| Cable Type | Category 6 |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 164' |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Display & Graphics | |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Physical Characteristics | |
| Color | Black |
| Depth | 3.25" |
| Width | 2.70" |
| Height | 0.70" |
| Weight | 0.35lb |
| Product Information | |
| Length | 3.50" |
| Video | |
| Graphics Mode | 4K UHD |
| Warranty | |
| Limited Warranty | 10-Year |
