Evolution EVEX2006 Ultra Slim HMDI Over Single CAT5e/CAT6 Cable Extender with PoE
Image of 7
Key Features
- Extend Full HD HDMI up to 164ft (50m) over a single Cat5e/Cat6 cable to simplify long-distance AV runs for surveillance, monitoring, digital signage and conference rooms.
- Built-in PoE powers both transmitter and receiver from one supply, reducing installation time, power outlets and cabling costs in security and networked AV deployments.
- Ultra-slim, compact design for discreet mounting in tight spaces, behind displays or inside equipment racks—keeps installations neat and professional.
- Wideband bi-directional IR (20–60kHz) enables remote control of source or display for centralized monitoring and seamless user control across distributed systems.
- Plug-and-play reliability with Auto EDID/EQ and HDCP compliance for consistent 1080p video, 3D support and pure uncompressed 7.1 channel audio across your network.
Quick Specifications
- Product Model
- EVEX2006
- Brand Name
- Evolution by Vanco
- Product Line
- Evolution
- Product Name
- Evolution EVEX2006 Video Console/Extender
Frequently Bought Together
Evolution EVEX2006 Ultra Slim HMDI Over Single CAT5e/CAT6 Cable Extender with PoE
$215.00
7 items selected
Total: $2,377.14
Explore the details
Product information
EVEX2006
Overview

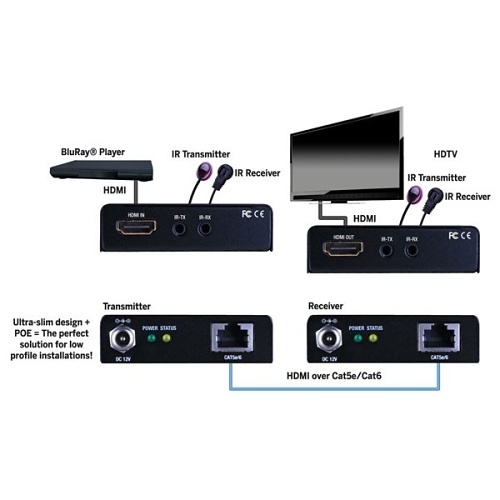

For professional AV and security installations that need clean, reliable HDMI distribution, the Evolution by Vanco EVEX2006 Ultra Slim HDMI over Single Cat5e/Cat6 Extender delivers full-featured performance in a compact package. This HDMI extender pair uses Power over Ethernet (PoE) to power both transmitter and receiver from a single supply, reducing cabling and simplifying installs for surveillance, monitoring stations, digital signage and boardrooms. Transmit uncompressed Full HD 1080p video (and 3D) with 7.1-channel digital audio up to 50m (164ft) over a single Cat5e/Cat6 cable while maintaining HDCP compatibility. Auto EDID and EQ management ensure plug-and-play setup and consistent image quality, and the wideband bi-directional IR (20–60kHz) lets operators control sources or displays remotely—ideal for security control rooms and distributed AV systems. Slim, durable enclosures integrate neatly behind displays or into rack systems, and the unit supports cascading for larger distribution networks. Choose the EVEX2006 to simplify your networked AV and security deployments—perfect for surveillance, monitoring, retail signage and corporate AV installations.
Features
- Extend Full HD HDMI up to 164ft (50m) over a single Cat5e/Cat6 cable to simplify long-distance AV runs for surveillance, monitoring, digital signage and conference rooms.
- Built-in PoE powers both transmitter and receiver from one supply, reducing installation time, power outlets and cabling costs in security and networked AV deployments.
- Ultra-slim, compact design for discreet mounting in tight spaces, behind displays or inside equipment racks—keeps installations neat and professional.
- Wideband bi-directional IR (20–60kHz) enables remote control of source or display for centralized monitoring and seamless user control across distributed systems.
- Plug-and-play reliability with Auto EDID/EQ and HDCP compliance for consistent 1080p video, 3D support and pure uncompressed 7.1 channel audio across your network.
| General Information | |
|---|---|
| Brand Name | Evolution by Vanco |
| Manufacturer | Vanco International, Inc |
| Product Line | Evolution |
| Product Name | Evolution EVEX2006 Video Console/Extender |
| Product Type | Video Extender Transmitter/Receiver |
| Product Model | EVEX2006 |
| Country of Origin | TW |
| Manufacturer Part Number | EVEX2006 |
| Technical Information | |
| Cable Type | Category 6 |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 164.00' |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Physical Characteristics | |
| Color | Black |
| Depth | 3.25" |
| Width | 2.70" |
| Height | 0.70" |
| Weight | 0.20lb |
| Dimensions | 2.7" x 0.7" x 3.25" |
| Product Information | |
| Length | 3.50" |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | EVEX2005 |
| Video | |
| Graphics Mode | Full HD |
| Warranty | |
| Limited Warranty | 2-Year |
