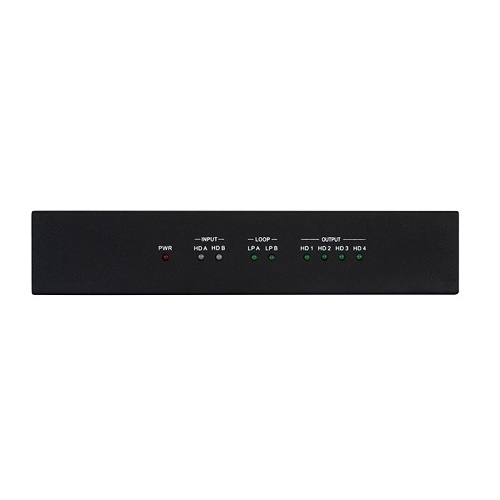

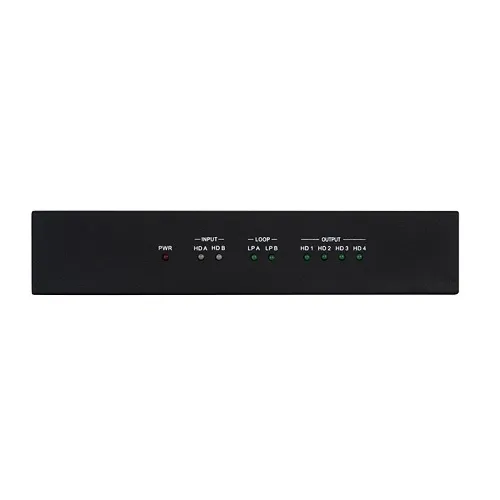

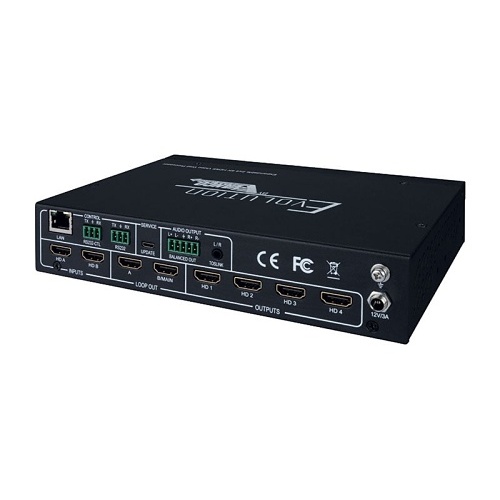

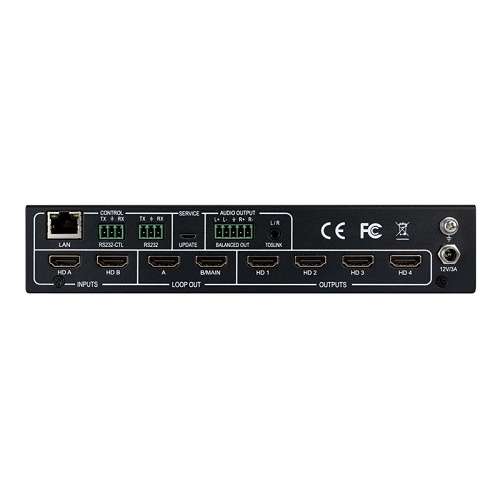

Evolution EVSP24VW Evolution Expandable 4k 2x4 HDMI Video Wall Processor
Image of 5
Key Features
- Scalable video wall performance: expand from a 2×4 out-of-the-box layout to a custom video wall up to 16×16 by daisy-chaining units, ideal for growing surveillance or control-room deployments
- Multi-source flexibility: two HDMI 2.0 inputs and flexible switching let you combine or swap sources without interrupting monitoring or digital signage
- Crisp 4K image quality with scaling: passes 4K@60Hz with HDR and includes resolution scaling to ensure clear, detailed footage for security and situational awareness
- Integrated audio and system integration: TOSLINK digital and balanced analog outputs plus RS232/TCP-IP control simplify integration with PA, recording and third‑party control systems
- Installation-ready controls: bezel adjustment, 180° screen rotation and HDMI loop-outs support precise alignment and easy setup in tight or complex installation spaces
Quick Specifications
- Product Model
- EVSP24VW
- Brand Name
- Evolution by Vanco
- Product Line
- Evolution
- Product Name
- Expandable 4K 2×4 HDMI Video Wall Processor
Frequently Bought Together
Evolution EVSP24VW Evolution Expandable 4k 2x4 HDMI Video Wall Processor
$1,101.65
5 items selected
Total: $5,183.30
Explore the details
Product information
EVSP24VW
Overview

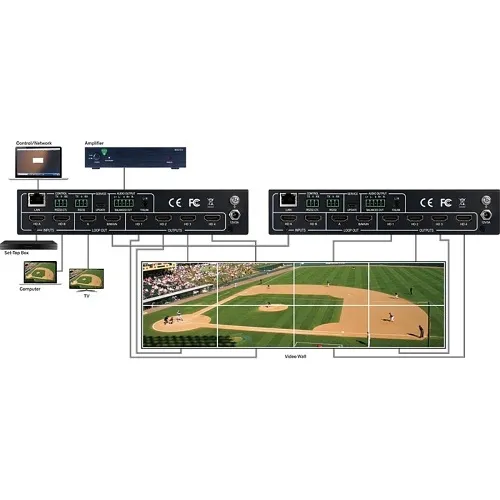

The Evolution by Vanco EVSP24VW video wall processor delivers a scalable, professional solution for command centers, security operations, retail displays and monitoring environments. Designed to display a single source or multiple sources across an array of displays, the EVSP24VW ships as a 2×4 4K video wall processor and can be expanded via HDMI loop-outs to support video walls up to 16×16—making it easy to grow your system as needs change.
With two HDMI 2.0 inputs, four outputs, 4K@60Hz with HDR support and onboard scaling, the EVSP24VW preserves image clarity for critical surveillance and monitoring tasks. Built-in TOSLINK digital and balanced analog audio outputs let you route audio to amplifiers or recorders, while RS232 and TCP/IP control enable integration with existing control systems and automation platforms. Adjustable bezel compensation and 180° rotation support help achieve seamless tiled displays in tight installations.
Whether you’re building a security operations center, retail video wall or network monitoring room, the EVSP24VW provides dependable, expandable performance. Contact our sales team to configure and deploy your next video wall solution.
Features
- Scalable video wall performance: expand from a 2×4 out-of-the-box layout to a custom video wall up to 16×16 by daisy-chaining units, ideal for growing surveillance or control-room deployments
- Multi-source flexibility: two HDMI 2.0 inputs and flexible switching let you combine or swap sources without interrupting monitoring or digital signage
- Crisp 4K image quality with scaling: passes 4K@60Hz with HDR and includes resolution scaling to ensure clear, detailed footage for security and situational awareness
- Integrated audio and system integration: TOSLINK digital and balanced analog outputs plus RS232/TCP-IP control simplify integration with PA, recording and third‑party control systems
- Installation-ready controls: bezel adjustment, 180° screen rotation and HDMI loop-outs support precise alignment and easy setup in tight or complex installation spaces
| General Information | |
|---|---|
| Brand Name | Evolution by Vanco |
| Manufacturer | Vanco International, Inc |
| Product Line | Evolution |
| Product Name | Expandable 4K 2×4 HDMI Video Wall Processor |
| Product Type | HDMI Splitter |
| Product Model | EVSP24VW |
| Country of Origin | CN |
| Manufacturer Part Number | EVSP24VW |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Physical Characteristics | |
| Depth | 5.70" |
| Width | 5.80" |
| Weight | 2.40lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | WEEE |
