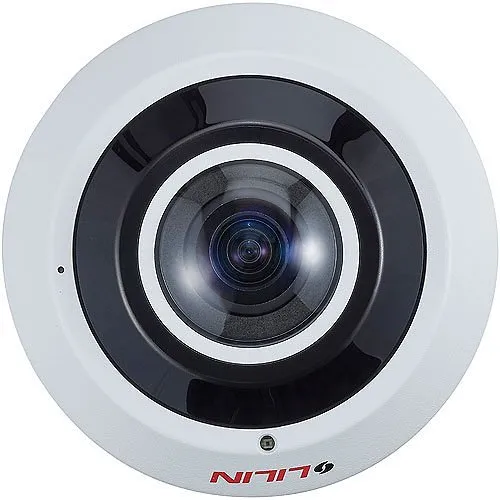

LILIN F2R36C2IM 12MP Fixed IR Vandal Resistant Fisheye IP Camera, 1.2mm Lens, White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 2
Key Features
- Capture critical detail across large areas with 12MP resolution for clearer identification and evidence-grade surveillance
- Single 1.2mm fisheye lens with up to 185° field of view eliminates blind spots and reduces the number of cameras needed
- IK10 vandal-resistant housing and IP67 weatherproofing protect your investment in high-risk or outdoor locations
- Sense Up+ IR night vision and WDR maintain usable images in low light and challenging contrast situations (night range ~65 ft)
- Efficient H.264/H.265 compression plus onboard SD storage lower bandwidth and simplify network storage costs
- Remote management via LILINViewer and smart alarm functions enable real-time monitoring, alerts, and easy integration into security systems
Quick Specifications
- Product Model
- F2R36C2IM
- Brand Name
- Merit LILIN
- Product Name
- 12MP Day & Night Fixed IR Vandal Resistant Panoramic IP Camera
- Product Type
- Network Camera
Frequently Bought Together
LILIN F2R36C2IM 12MP Fixed IR Vandal Resistant Fisheye IP Camera, 1.2mm Lens, White
6 items selected
Total: $1,195.28
Product Information Tabs
Overview
For facilities that demand comprehensive, reliable surveillance, the Merit LILIN F2R36C2IM 12MP fisheye panoramic IP camera delivers full-area monitoring with evidence-quality detail. This Merit LILIN panoramic camera pairs a 1.2mm fixed fisheye lens and a 12MP sensor (3008 x 3000) to cover large retail floors, lobbies, and outdoor perimeters with fewer devices, reducing installation complexity and total cost of ownership. Built for tough environments, the IK10-rated vandal-resistant dome and IP67 ingress protection ensure continued operation in high-risk and all-weather locations. Advanced imaging features—Sense Up+ IR for night visibility (up to about 65 ft) and Wide Dynamic Range—preserve critical details in low light and mixed lighting conditions, while H.265 compression and local SD card storage lower bandwidth and storage expenses. Easy remote access through the LILINViewer app and smart alarm functions streamline monitoring and incident response. Ideal for retail, transportation hubs, education campuses, and industrial sites, the F2R36C2IM is a robust, high-resolution solution for professional security and monitoring. Upgrade your surveillance setup today and safeguard assets with panoramic coverage and durable protection.
Features
- Capture critical detail across large areas with 12MP resolution for clearer identification and evidence-grade surveillance
- Single 1.2mm fisheye lens with up to 185° field of view eliminates blind spots and reduces the number of cameras needed
- IK10 vandal-resistant housing and IP67 weatherproofing protect your investment in high-risk or outdoor locations
- Sense Up+ IR night vision and WDR maintain usable images in low light and challenging contrast situations (night range ~65 ft)
- Efficient H.264/H.265 compression plus onboard SD storage lower bandwidth and simplify network storage costs
- Remote management via LILINViewer and smart alarm functions enable real-time monitoring, alerts, and easy integration into security systems
| General Information | |
|---|---|
| Brand Name | Merit LILIN |
| Manufacturer | Merit LILIN Ent. Co., Ltd |
| Product Name | 12MP Day & Night Fixed IR Vandal Resistant Panoramic IP Camera |
| Product Type | Network Camera |
| Product Model | F2R36C2IM |
| Product Series | F2 |
| Manufacturer Part Number | F2R36C2IM |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2.2 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 25fps |
| Minimum Focal Length | 1.2mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 185° |
| Field of View (Horizontal) | 185° |
| Effective Camera Resolution | 12MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 65.62 ft |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 3008 x 3000 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Longest Shutter Speed | 1/25 Second |
| Shortest Shutter Speed | 1/30000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 1.2mm |
| Lens Included | Yes |
| Maximum Focal Length | 1.2mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 1.29lb |
| Durability | Dust Resistant, Impact Resistant, Moisture Resistant, Rain Resistant, Vandal Resistant, Vandalproof, Waterproof, Weatherproof, Wind Resistant |
| Form Factor | Fisheye |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 4.7" |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | 3D Noise Reduction, Alarm Detection, Auto Gain Control, Back Light Compensation (BLC), Day/Night, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
| Country of Origin | TW |
| Impact Protection Rating | IK10 |
