Speco H16HRLN 16-Channel Hybrid DVR, 2TB HDD, Black

SKU: H16HRLN2TB Speco Technologies

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Speco H16HRLN 16-Channel Hybrid DVR, 2TB

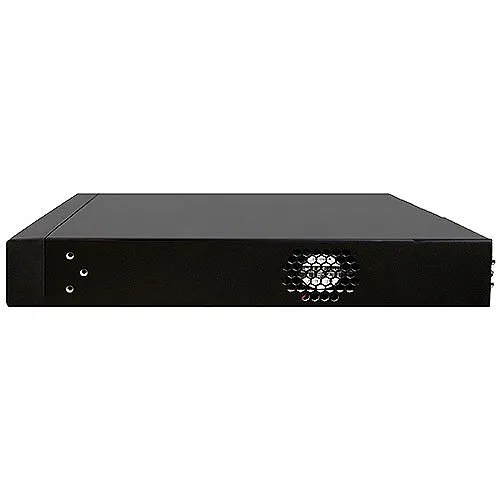

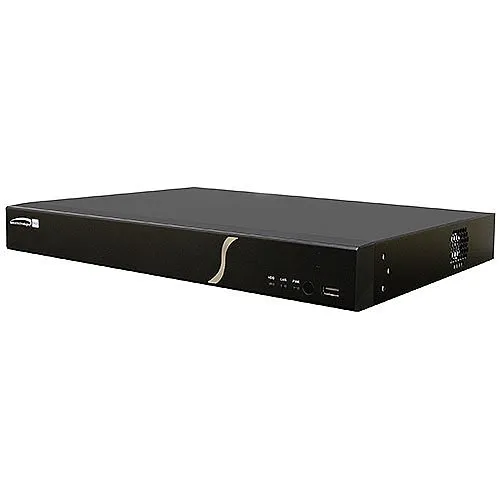

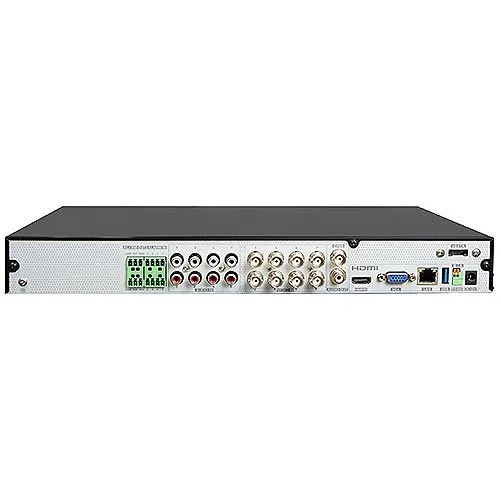

Product images for Speco H16HRLN 16-Channel Hybrid DVR, 2TB HDD, Black. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Centralize surveillance across up to 16 cameras (HD‑TVI + IP) for consistent monitoring and simplified system management
  • H.265 compression and included 2TB HDD reduce storage costs while preserving high‑quality footage
  • Scalable storage (2 SATA + eSATA) and 4K HDMI output let you expand retention and view ultra‑clear video when needed
  • Smart analytics (object/line crossing detection, Smart Search) speed investigations and cut review time
  • Remote access, two‑way audio and NDAA compliance provide secure, flexible deployment and long‑term reliability

Quick Specifications

Product Model
H16HRLN
Bandwidth
192Mbps
Brand Name
Speco Technologies
Product Name
16-Channel H.265 Hybrid DVR (2TB)
View Full Technical Specifications

Explore the details

Product information

H16HRLN2TB

Overview

Built for businesses that need reliable, expandable video surveillance, the Speco H16HRLN 16‑Channel Hybrid DVR delivers streamlined monitoring and secure footage management. This Speco Technologies hybrid video recorder supports both HD‑TVI and IP cameras, giving installers flexibility to mix camera types while recording up to 16 channels. With H.265 compression and a 2TB HDD included, the unit minimizes storage costs and keeps bandwidth efficient without sacrificing image quality. Expand storage easily via two internal SATA bays (up to 32TB) and an eSATA port for offload. Operators benefit from 4K HDMI output and 4K IP support on select channels for crystal‑clear evidence capture and fast on‑site review. Built‑in smart analytics — including object/line crossing detection and Smart Search — reduce investigation time, while two‑way audio and free US‑based DDNS/P2P enable secure remote monitoring. NDAA compliance and a 5‑year limited warranty make this recorder a dependable choice for retail, commercial, and institutional security applications. Upgrade your surveillance deployment with the H16HRLN for robust monitoring and simplified management.

Features

  • Centralize surveillance across up to 16 cameras (HD‑TVI + IP) for consistent monitoring and simplified system management
  • H.265 compression and included 2TB HDD reduce storage costs while preserving high‑quality footage
  • Scalable storage (2 SATA + eSATA) and 4K HDMI output let you expand retention and view ultra‑clear video when needed
  • Smart analytics (object/line crossing detection, Smart Search) speed investigations and cut review time
  • Remote access, two‑way audio and NDAA compliance provide secure, flexible deployment and long‑term reliability
39 of 39 specifications
Technical specifications for Speco H16HRLN 16-Channel Hybrid DVR, 2TB HDD, Black
General Information
Bandwidth 192Mbps
Brand Name Speco Technologies
Manufacturer Speco Technologies
Product Name 16-Channel H.265 Hybrid DVR (2TB)
Product Type Video Surveillance System
Product Model H16HRLN
Product Series HRLN
Application/Usage Commercial Security, Education, Retail, Small/Medium-sized Business
Country of Origin CN
Manufacturer Part Number H16HRLN2TB
Maximum Supported Storage Capacity 40TB
Technical Information
Video Formats H.265 / HEVC
Power Consumption 30W
Maximum Frame Rate 30fps
Number of Channels 16
Video Signal Format NTSC, PAL
Connectivity Technology Wired
Effective Camera Resolution 8MP
Audio
Video Encoding H.265 (HEVC)
Certifications
NDAA Compliant Yes
Environmental Conditions
Operating Temperature (T-T) 14-122°F
Interfaces/Ports
HDMI Yes
Composite Video In Yes
Composite Video Out Yes
Number of USB Ports 1
Number of HDMI Outputs 1
Network & Communication
Ethernet Yes
Remote Management Yes
Physical Characteristics
Color Black
Depth 10.6"
Width 15.0"
Height 1.8"
Product Information
Mount Type Desktop Mount, Rack Mount
Product Replacements & Other Alternatives
Model Number Replaces D8CS2TB, D8HT1TB, D8HT2TB, D8HU2TB, D8VN2TB, D8VT2TB, D8WVXP4TB, H12HRN2TB
Model Number Alternative IDS-7208HUHI-M2/S-2TB, IDS-7208HQHI-M2/S-2TB, IDS-7208HTHI-M2/S-2TB
Storage
Recording Formats H.265 / HEVC
Hard Drive Capacity 2TB
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
