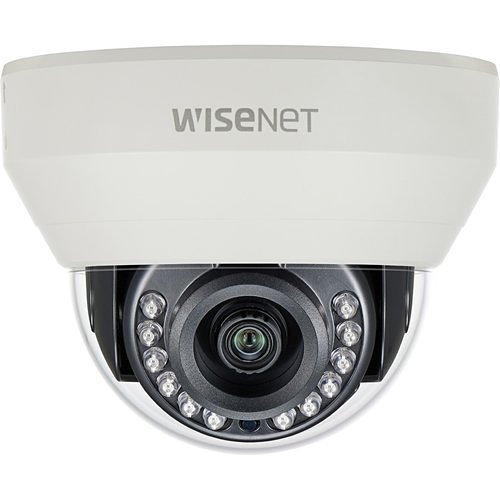

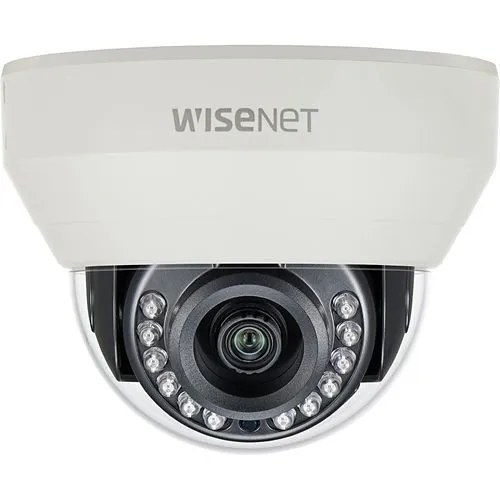

Hanwha HCD-7010RA HD+ Series 4MP Analog HD IR Dome Camera, 2.8mm Lens, Ivory
Image of 2
Key Features
- Deliver crisp, actionable 4MP surveillance footage at 2560 x 1440 resolution for improved incident identification and evidence capture
- Reliable low-light and IR performance (0.26 Lux; 20m IR) to maintain clear monitoring around the clock
- Long-distance coax transmission up to 500m, reducing cabling costs and enabling easy integration with existing analog infrastructure
- Rugged IP67-rated housing for dust and water resistance, suitable for demanding indoor and protected outdoor installations
- Plug-and-play installation with a compact 2.8mm fixed lens and 30fps streaming for smooth, real-time monitoring
Quick Specifications
- Product Model
- HCD-7010RA
- Brand Name
- Hanwha Vision
- Product Name
- 4MP Wisenet HD Indoor Dome Camera
- Product Type
- Dome Camera
Frequently Bought Together
Hanwha HCD-7010RA HD+ Series 4MP Analog HD IR Dome Camera, 2.8mm Lens, Ivory
$110.16
11 items selected
Total: $2,097.51
Explore the details
Product information
HCD-7010RA
Overview
Improve site security with the Hanwha Vision HCD-7010RA, a 4MP HD+ dome camera engineered for dependable, high-resolution surveillance. Designed for mid- to large-scale projects, this HD+ series dome delivers 2560 x 1440 imaging at up to 30fps so security teams can see fine detail and act faster. The built-in 2.8mm lens provides a wide 107° horizontal view ideal for lobbies, retail floors, warehouses, and perimeter corridors.
Low-light sensitivity (0.26 Lux at F1.8) and 20m IR illumination keep monitoring effective after dark, while maximum coax transmission of 500m simplifies upgrades by leveraging existing cabling without latency. With IP67 dust/water protection and DWDR for balanced exposure across high-contrast scenes, the HCD-7010RA reduces false alarms and improves forensic review. Perfect for integrators and facility managers seeking reliable wired surveillance, the camera supports easy plug-and-play installation and standard 12V DC power.
Specify the Hanwha Vision HD dome camera for robust security and continuous monitoring—order now or contact us for site design and deployment recommendations.
Features
- Deliver crisp, actionable 4MP surveillance footage at 2560 x 1440 resolution for improved incident identification and evidence capture
- Reliable low-light and IR performance (0.26 Lux; 20m IR) to maintain clear monitoring around the clock
- Long-distance coax transmission up to 500m, reducing cabling costs and enabling easy integration with existing analog infrastructure
- Rugged IP67-rated housing for dust and water resistance, suitable for demanding indoor and protected outdoor installations
- Plug-and-play installation with a compact 2.8mm fixed lens and 30fps streaming for smooth, real-time monitoring
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 4MP Wisenet HD Indoor Dome Camera |
| Product Type | Dome Camera |
| Product Model | HCD-7010RA |
| Product Series | HD+ |
| Manufacturer Part Number | HCD-7010RA |
| Technical Information | |
| Lens Type | Fixed Focus |
| Field of View | Diagonal, Horizontal, Vertical |
| Maximum Aperture | f/1.8 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.8mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 59.67° |
| Field of View (Horizontal) | 107.48° |
| Effective Camera Resolution | 4MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 65.62 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 2560 x 1440 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | 14°F |
| Exposure | |
| Longest Shutter Speed | 1/30 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| Lens | |
| Focal Length | 2.8mm |
| Maximum Focal Length | 2.8mm |
| Physical Characteristics | |
| Color | Ivory |
| Height | 3.4" |
| Weight | 0.53 lb |
| Durability | Dustproof, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 4.33" |
| Mount Type | Box Mount, Ceiling Mount, Corner Mount, Gooseneck Mount, Hanging Mount, Parapet Mount, Pendant Mount, Pole Mount, Wall Mount |
| Storage | |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | 0.26 Lux at F1.8 (Color),0 Lux (B/W - IR LED on), Built-in 2.8mm fixed lens, Day and Night (ICR), DWDR, Motion detection, Easy installation (Plug and play), IR viewable length 20m, Transmission distance max.500m |
