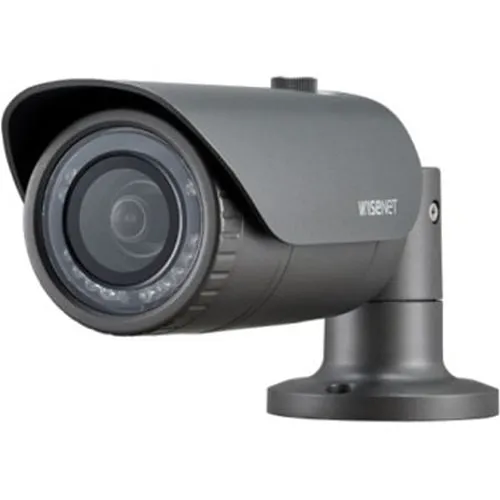

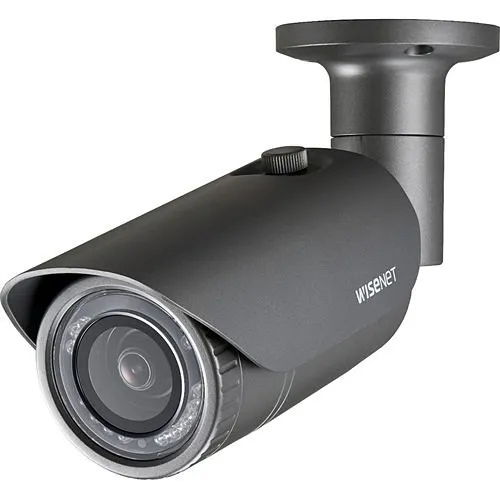

Hanwha HCO-7030RA HD+ Series 4MP Outdoor Analog HD IR Bullet Camera, 6mm Fixed Lens, Gray
Key Features
- Deliver crisp, actionable 4MP QHD images (2560 x 1440) so you can identify faces and license plates across large outdoor areas.
- Reliable low-light monitoring with built-in IR up to 30m (≈98 ft) for continuous night surveillance and reduced blind spots.
- Tough outdoor protection (IP66 weatherproof, IK10 impact rating) to minimize downtime in harsh environments and lower maintenance costs.
- Simple analog HD integration (AHD/CVBS) with long transmission up to 500m and 12VDC power for fast, low-voltage installs on existing CCTV systems.
- Fixed 6mm lens and DWDR/motion detection to maintain clear, usable video across mixed lighting for perimeter and property monitoring.
Quick Specifications
- Product Model
- HCO-7030RA
- Brand Name
- Hanwha Vision
- Product Name
- 4MP Wisenet HD Bullet Camera
- Product Type
- Bullet Camera
Frequently Bought Together
Hanwha HCO-7030RA HD+ Series 4MP Outdoor Analog HD IR Bullet Camera, 6mm Fixed Lens, Gray
4 items selected
Total: $1,384.77
Product Information Tabs
Overview
Designed for dependable perimeter protection and 24/7 monitoring, the Hanwha Vision HCO-7030RA HD+ series 4MP bullet camera gives security teams clear, actionable video when it matters. This outdoor bullet camera delivers QHD 4MP resolution (2560 x 1440) through a built-in 6mm fixed lens, making it easier to spot details at entrances, loading docks, and lot perimeters. Integrated IR lets you maintain surveillance after dark with effective night vision to roughly 30 meters (98 ft), while DWDR and motion detection improve image usability in challenging lighting. Engineered for real-world deployments, the HCO-7030RA meets IP66 and IK10 ratings to resist weather and vandalism, and supports AHD/CVBS analog HD formats with long transmission distances up to 500m—ideal for retrofits and low-voltage (12V DC) installations. Choose this Hanwha Vision bullet camera to strengthen site security, reduce false alarms, and simplify maintenance. Add it to your CCTV system for reliable outdoor surveillance—perfect for commercial sites, campuses, and perimeter monitoring.
Features
- Deliver crisp, actionable 4MP QHD images (2560 x 1440) so you can identify faces and license plates across large outdoor areas.
- Reliable low-light monitoring with built-in IR up to 30m (≈98 ft) for continuous night surveillance and reduced blind spots.
- Tough outdoor protection (IP66 weatherproof, IK10 impact rating) to minimize downtime in harsh environments and lower maintenance costs.
- Simple analog HD integration (AHD/CVBS) with long transmission up to 500m and 12VDC power for fast, low-voltage installs on existing CCTV systems.
- Fixed 6mm lens and DWDR/motion detection to maintain clear, usable video across mixed lighting for perimeter and property monitoring.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 4MP Wisenet HD Bullet Camera |
| Product Type | Bullet Camera |
| Product Model | HCO-7030RA |
| Product Series | HD+ |
| Manufacturer Part Number | HCO-7030RA |
| Technical Information | |
| Lens Type | Fixed Focus |
| Field of View | H: 49.01°, V: 27.61°, D: 55.60° |
| Maximum Aperture | f/2.0 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 6mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 4MP |
| Camera | |
| Image Sensor Type | CMOS |
| Night Vision Distance | 98.43 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 2560 x 1440 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Longest Shutter Speed | 1/30 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| Lens | |
| Focal Length | 6mm |
| Maximum Focal Length | 6.0 mm |
| Physical Characteristics | |
| Color | Gray |
| Width | 9.7" |
| Weight | 1.48 lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Bullet |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 2.76" |
| Mount Type | Box Mount, Pole Mount |
| Storage | |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | ,, 0.27 Lux at F2.0 (Color),0 Lux (B/W - IR LED on), Built-in 6.0mm fixed lens, Day and Night (ICR), DWDR, Motion detection, Easy installation (Plug and play),, IR viewable length 30m, QHD (2560 x 1440, 30fps) resolution, Transmission distance max.500m |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
