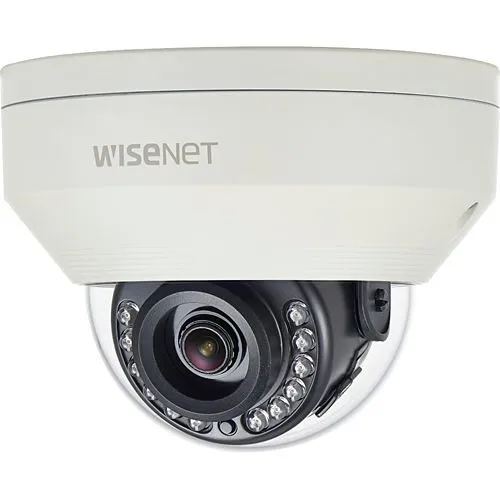

Hanwha HCV-7010RA HD+ Series 4MP Outdoor Analog HD IR Vandal Dome Camera, 2.8mm Fixed Lens, Ivory

SKU: HCV-7010RA Hanwha Vision
Hanwha HCV-7010RA Wisenet 4MP Analog HD IR Vandal Dome Camera, 2.8mm Fixed Lens
Product images for Hanwha HCV-7010RA HD+ Series 4MP Outdoor Analog HD IR Vandal Dome Camera, 2.8mm Fixed Lens, Ivory. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Capture QHD detail (4MP / 2560 x 1440 at 30fps) for clearer identification and evidence in security events
  • Reliable outdoor performance with IP66 weatherproofing and IK10 vandal resistance to reduce maintenance and downtime
  • Long-range IR (20m) and low-light sensitivity for continuous 24/7 monitoring of perimeter and entry points
  • Wide 2.8mm field of view covers larger areas, lowering the number of cameras needed for comprehensive surveillance
  • Simple retrofits and long-distance installs using single-coax transmission up to 500m — plug-and-play for fast deployment

Quick Specifications

Product Model
HCV-7010RA
Brand Name
Hanwha Vision
Product Name
4MP Wisenet HD Outdoor Dome Camera
Product Type
Dome Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for demanding outdoor security applications, the Hanwha Vision HCV-7010RA HD+ dome camera delivers dependable, high-resolution surveillance where clarity and durability matter most. As a 4MP outdoor analog HD dome camera, it captures QHD video (2560 x 1440) at 30 fps so your team can identify faces, license plates and incidents with confidence. The built-in 2.8mm fixed lens provides a wide field of view for efficient area coverage, while 20 m IR night vision and strong low-light sensitivity keep monitoring effective after dark. Engineered for real-world deployments, the HCV-7010RA sports IP66 weatherproofing and IK10 vandal resistance to withstand harsh environments and reduce service calls. Installers benefit from plug-and-play coaxial transmission up to 500 m, making upgrades from legacy analog systems quicker and more cost-effective. Ideal for parking lots, retail locations, campuses and critical infrastructure, this Hanwha Vision dome camera combines rugged reliability with clear imaging for professional security and monitoring. Contact your distributor to specify the HCV-7010RA for your next CCTV deployment.

Features

  • Capture QHD detail (4MP / 2560 x 1440 at 30fps) for clearer identification and evidence in security events
  • Reliable outdoor performance with IP66 weatherproofing and IK10 vandal resistance to reduce maintenance and downtime
  • Long-range IR (20m) and low-light sensitivity for continuous 24/7 monitoring of perimeter and entry points
  • Wide 2.8mm field of view covers larger areas, lowering the number of cameras needed for comprehensive surveillance
  • Simple retrofits and long-distance installs using single-coax transmission up to 500m — plug-and-play for fast deployment
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 4MP Wisenet HD Outdoor Dome Camera
Product Type Dome Camera
Product Model HCV-7010RA
Product Series HD+
Manufacturer Part Number HCV-7010RA
Technical Information
Lens Type Fixed Focus
Field of View H: 107.48°, V: 59.47°, D: 122.01°
Maximum Aperture f/1.8
Maximum Frame Rate 30fps
Minimum Focal Length 2.8mm
Connectivity Technology Wired
Effective Camera Resolution 4MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 65.62 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 2560 x 1440
Environmental Conditions
Operating Humidity 90% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature -22°F
Exposure
Longest Shutter Speed 1/30 Second
Shortest Shutter Speed 1/12,000 Second
Interfaces/Ports
Network (RJ-45) No
Lens
Focal Length 2.8mm
Maximum Focal Length 2.8mm
Physical Characteristics
Color Ivory
Height 3.6"
Weight 1.12 lb
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form Factor Dome
Power Description
Input Voltage 12V DC
Product Information
Diameter 4.74"
Mount Type Box Mount, Ceiling Mount, Corner Mount, Gooseneck Mount, Hanging Mount, Parapet Mount, Pendant Mount, Wall Mount
Storage
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features ,, 0.26 Lux at F1.8 (Color),0 Lux (B/W - IR LED on), Built-in 2.8mm fixed lens, Day and Night (ICR), DWDR, Motion detection, Easy installation (Plug and play),, IR viewable length 20m, QHD (2560 x 1440, 30fps) resolution, Transmission distance max.500m
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
