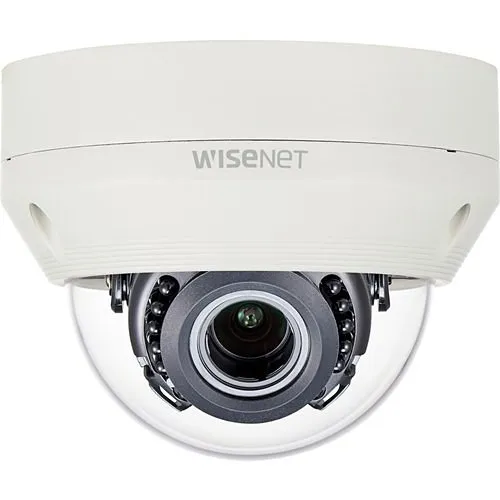

Hanwha HCV-7070RA HD+ Series 4MP Outdoor Analog HD IR Vandal Dome Camera, 3.2-10mm Varifocal Lens, Ivory
Image of 2
Key Features
- Capture critical details with 4MP QHD resolution and 30fps for sharper identification and smoother evidence-quality video
- Flexible 3.2–10mm varifocal lens lets you tailor coverage for entrances, perimeters, or parking areas without swapping cameras
- Long-distance coax transmission up to 500m reduces cabling upgrades and keeps deployment costs low when retrofitting analog systems
- Rugged IP66 weatherproofing and IK10 vandal resistance ensure reliable outdoor surveillance in harsh environments
- Built-in IR night vision (~98 ft) and DWDR maintain clear monitoring 24/7 across high-contrast scenes
- Plug-and-play installation with dual power (12V DC / 24V AC) for fast deployment and compatibility with existing infrastructure
Quick Specifications
- Product Model
- HCV-7070RA
- Brand Name
- Hanwha Vision
- Product Name
- 4MP Wisenet HD Outdoor Dome Camera
- Product Type
- Dome Camera
Frequently Bought Together
Hanwha HCV-7070RA HD+ Series 4MP Outdoor Analog HD IR Vandal Dome Camera, 3.2-10mm Varifocal Lens, Ivory
10 items selected
Total: $2,034.48
Product Information Tabs
Overview
For sites that demand reliable, evidence-quality video without a costly IP overhaul, the Hanwha Vision HCV-7070RA HD+ 4MP outdoor analog IR vandal dome camera delivers clear, actionable surveillance. This dome camera combines 4MP QHD resolution (2560 x 1440) at 30fps with a 3.2–10mm varifocal lens so integrators can adjust field of view to prioritize faces, license plates, or wide-area coverage. The HD+ platform supports up to 500m transmission over a single coax cable, making it an efficient choice for retrofits and long-run deployments where minimizing new cabling is critical. Built for demanding environments, the ivory housing meets IP66 and IK10 ratings for weatherproof and vandal-resistant monitoring, while built-in IR provides reliable night performance to ~98 ft. Ideal for retail, education, transportation, and commercial perimeters, the HCV-7070RA reduces installation complexity and delivers consistent security-grade footage. Upgrade your on-site monitoring with a durable, high-resolution dome camera designed for real-world security applications—contact sales or specify it on your next project.
Features
- Capture critical details with 4MP QHD resolution and 30fps for sharper identification and smoother evidence-quality video
- Flexible 3.2–10mm varifocal lens lets you tailor coverage for entrances, perimeters, or parking areas without swapping cameras
- Long-distance coax transmission up to 500m reduces cabling upgrades and keeps deployment costs low when retrofitting analog systems
- Rugged IP66 weatherproofing and IK10 vandal resistance ensure reliable outdoor surveillance in harsh environments
- Built-in IR night vision (~98 ft) and DWDR maintain clear monitoring 24/7 across high-contrast scenes
- Plug-and-play installation with dual power (12V DC / 24V AC) for fast deployment and compatibility with existing infrastructure
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 4MP Wisenet HD Outdoor Dome Camera |
| Product Type | Dome Camera |
| Product Model | HCV-7070RA |
| Product Series | HD+ |
| Manufacturer Part Number | HCV-7070RA |
| Technical Information | |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 3.1x |
| Field of View | Diagonal, Horizontal, Vertical |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.2mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 50.47° |
| Field of View (Horizontal) | 93.48° |
| Effective Camera Resolution | 4MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98.43 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 2560 x 1440 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | 14°F |
| Exposure | |
| Longest Shutter Speed | 1/30 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | No |
| Lens | |
| Focal Length | 3.2-10mm |
| Lens Included | Yes |
| Maximum Focal Length | 10mm |
| Physical Characteristics | |
| Color | Ivory |
| Height | 4.2" |
| Weight | 1.58lb |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC, 24V AC |
| Product Information | |
| Diameter | 5.39" |
| Mount Type | Ceiling Mount, Wall Mount |
| Miscellaneous | |
| Features | ,, 0.16 Lux at F1.6 (Color), 0 Lux (B/W - IR LED on), 3.2-10mm (3.1x) varifocal lens, Day and Night (ICR), DWDR, Motion detection, Easy installation (Plug and play), Dual power, QHD (2560 x 1440, 30fps) resolution, support, Transmission distance Max. 500m |
| Indoor/Outdoor | Outdoor |
| Country of Origin | VN |
| Impact Protection Rating | IK10 |
