ICC ICCABR6VWH CAT6 CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 500 MHz, UL Certified, 1000' Reelex Pull Box, White
Image of 9
Key Features
- Deliver reliable, low-latency connectivity for security, surveillance and enterprise networks, minimizing video dropouts and packet loss

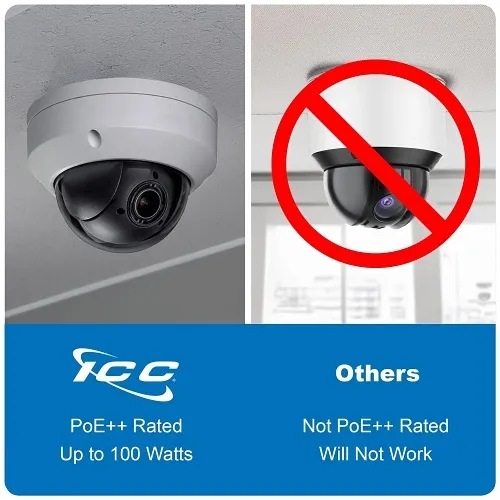

- Support up to 100W PoE++ to power cameras, access points and IoT devices without extra power runs

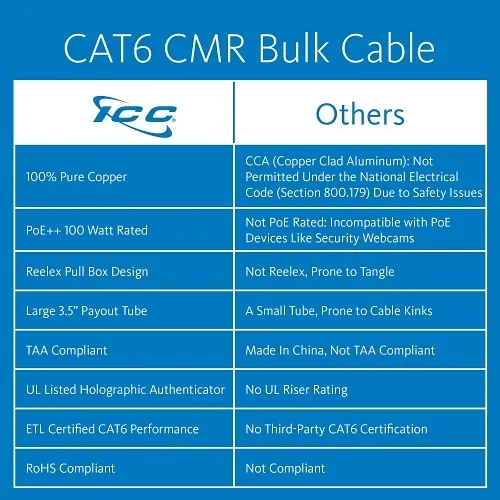

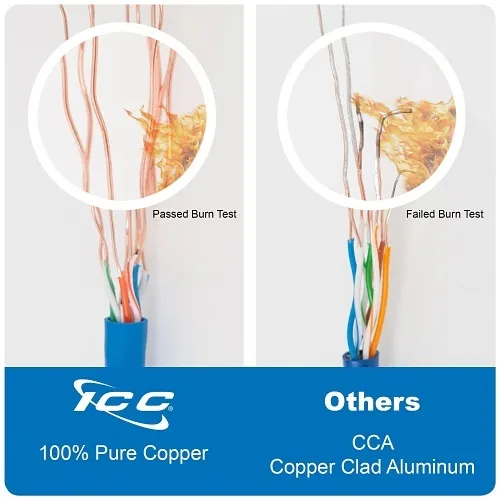

- 23AWG 100% solid pure copper conductors reduce attenuation for consistent Gigabit performance and longer reach

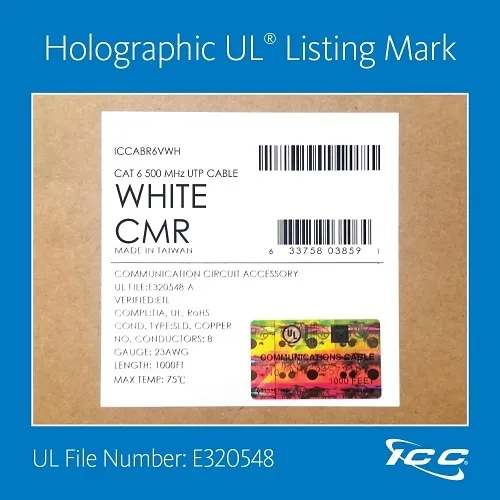

- Riser-rated CMR jacket with UL and ETL verification ensures code-compliant vertical installs and safer building deployment

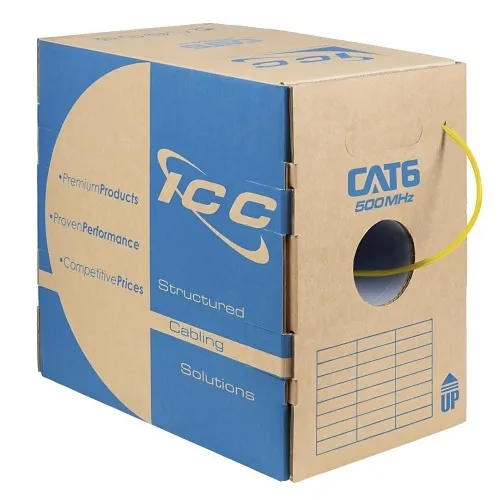

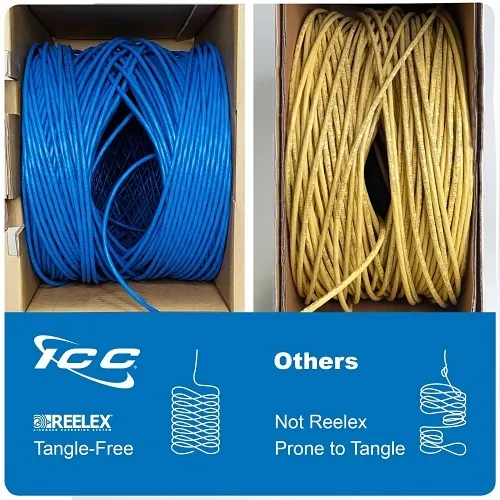

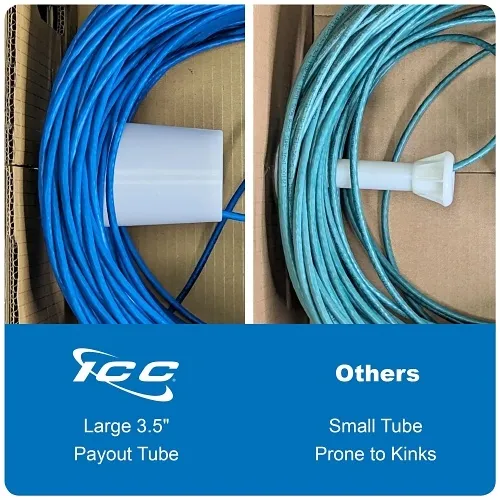

- 1000' tangle-free REELEX pull box simplifies installs, reduces labor time and protects cable during pulls
Quick Specifications
- Product Model
- ICCABR6VWH
- Brand Name
- ICC
- Product Name
- Cat.6 UTP Network Cable
- Product Type
- Network Cable
Product Information Tabs
Overview
Deliver uninterrupted high-speed connectivity for security, surveillance and enterprise networks with ICC’s Cat6 UTP riser cable. The ICC ICCABR6VWH Cat6 CMR cable combines 23AWG 100% solid pure copper conductors and 500 MHz bandwidth to guarantee consistent Gigabit Ethernet performance for video monitoring, access control and data networking. With support for up to 100W PoE++, this cable powers modern cameras, wireless APs and IoT sensors while eliminating separate power infrastructure. Its riser-rated (CMR) PVC jacket is UL and ETL verified to meet NEC vertical-run requirements, giving you peace of mind on code compliance in multi-story buildings. The 1000' REELEX pull box delivers tangle-free deployment to speed installations and reduce waste on long cable runs. Engineered to exceed TIA crosstalk standards, ICC’s Cat6 cable minimizes interference and future-proofs networks for higher-density security and monitoring environments. Ideal for structured cabling projects, surveillance system installs, and enterprise networks—specify ICC Cat6 CMR for reliable, code-compliant performance. Order now to streamline your next security or network deployment.
Features
- Deliver reliable, low-latency connectivity for security, surveillance and enterprise networks, minimizing video dropouts and packet loss
- Support up to 100W PoE++ to power cameras, access points and IoT devices without extra power runs
- 23AWG 100% solid pure copper conductors reduce attenuation for consistent Gigabit performance and longer reach
- Riser-rated CMR jacket with UL and ETL verification ensures code-compliant vertical installs and safer building deployment
- 1000' tangle-free REELEX pull box simplifies installs, reduces labor time and protects cable during pulls
| General Information | |
|---|---|
| Brand Name | ICC |
| Manufacturer | ICC |
| Product Name | Cat.6 UTP Network Cable |
| Product Type | Network Cable |
| Manufacturer Part Number | ICCABR6VWH |
| Technical Information | |
| Material | PVC |
| Shielding | No |
| Cable Type | Category 6 |
| Jacket Type | Riser |
| Cable Rating | Riser |
| Conductor Count | 4 |
| Jacket Material | PVC |
| Number of Pairs | 4 |
| Device Supported | Network Device |
| Solid or Stranded | Solid |
| American Wire Gauge | 23AWG |
| Number of Conductors | 8 |
| Interfaces/Ports | |
| Connector Type | RJ-45 |
| Media & Performance | |
| Data Transfer Rate | 1 Gbit/s |
| Physical Characteristics | |
| Color | White |
| Cable Length | 1000' |
| Package Type | Pull Box |
| Insulation Material | FEP |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Attenuation to Crosstalk Ratio (ACR), Minimized Near-End Crosstalk (NEXT), Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT) |
| Country of Origin | TW |
| Environmentally Friendly | Yes |
| Certifications & Standards | ETL, RoHS, TIA, UL |
| Environmental Certification | RoHS |
