ICC ICCABR6VYL CAT6 CMR Riser 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 500 MHz, UL Certified, 1000' Reelex Pull Box, Yellow
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 9
Key Features
- Provides dependable Gigabit connectivity and 500MHz bandwidth to ensure stable performance for security, surveillance, and enterprise networks

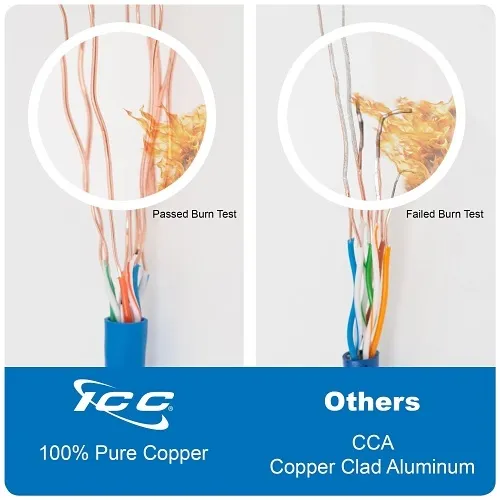

- 23AWG 100% solid pure copper conductors deliver consistent signal integrity and long-term reliability for backbone and horizontal runs
- Supports PoE++ up to 100W so cameras, wireless APs and access control devices can be powered directly over Ethernet

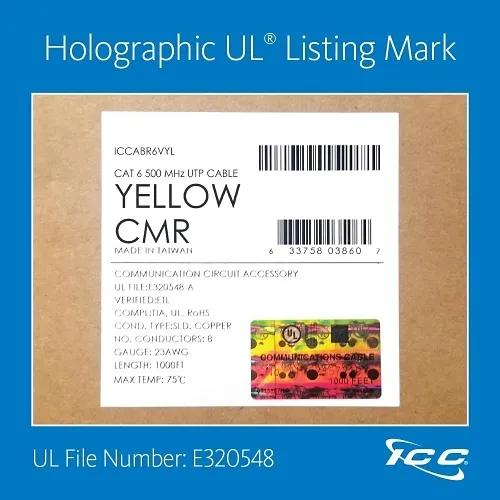

- Riser-rated CMR jacket and UL/ETL certifications simplify safe vertical installations while meeting code requirements

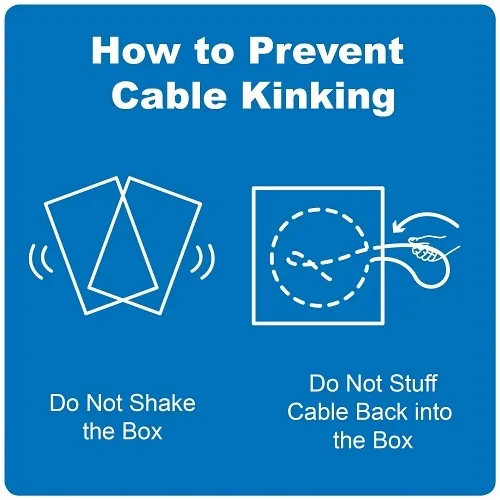

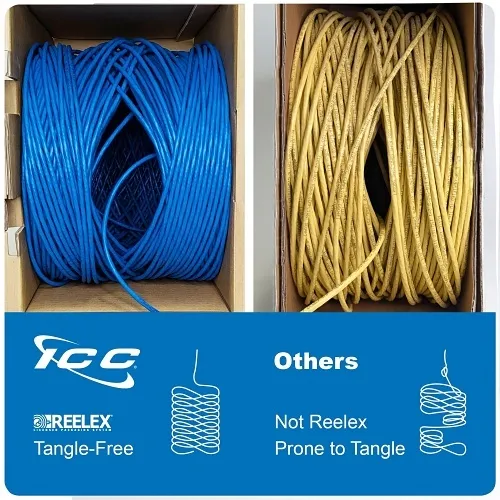

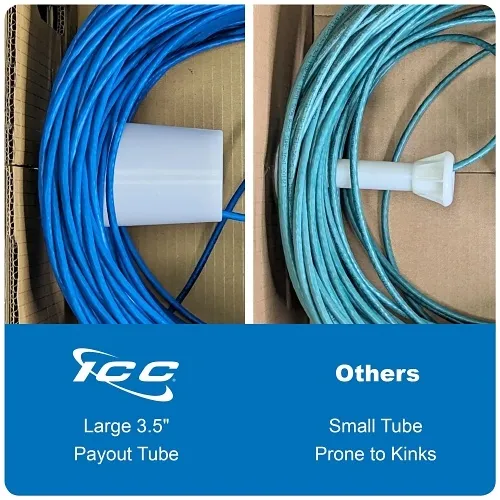

- 1000' tangle-free REELEX pull box with sequential footage markings speeds installs, reduces waste and lowers labor costs
Quick Specifications
- Product Model
- ICCABR6VYL
- Brand Name
- ICC
- Product Name
- Cat.6 UTP Network Cable
- Product Type
- Network Cable
Product Information Tabs
Overview
Get reliable, high-performance backbone cabling for security, surveillance and enterprise environments with the ICC Cat.6 UTP CMR riser network cable. This Category 6 network cable from ICC is engineered for real-world installations: 23AWG 100% solid pure copper conductors maintain signal integrity over long runs, while 500MHz bandwidth and TIA/ETL/UL verification support Gigabit Ethernet and demanding applications such as monitoring, VoIP and video surveillance. Built for modern PoE deployments, the cable supports PoE++ (up to 100W) so cameras, access points and IoT devices can be powered without extra wiring. The riser-rated CMR PVC jacket meets vertical space safety codes and the 1000' REELEX pull box with sequential footage markings reduces pull time and material waste for contractors and integrators. Whether you’re upgrading an office network, installing a multi-camera security system, or rolling out campus Wi‑Fi, ICC’s Cat6 riser cable provides a robust, code-compliant foundation. Order the ICC Cat6 CMR cable to simplify installs and future-proof your network infrastructure.
Features
- Provides dependable Gigabit connectivity and 500MHz bandwidth to ensure stable performance for security, surveillance, and enterprise networks
- 23AWG 100% solid pure copper conductors deliver consistent signal integrity and long-term reliability for backbone and horizontal runs
- Supports PoE++ up to 100W so cameras, wireless APs and access control devices can be powered directly over Ethernet
- Riser-rated CMR jacket and UL/ETL certifications simplify safe vertical installations while meeting code requirements
- 1000' tangle-free REELEX pull box with sequential footage markings speeds installs, reduces waste and lowers labor costs
| General Information | |
|---|---|
| Brand Name | ICC |
| Manufacturer | ICC |
| Product Name | Cat.6 UTP Network Cable |
| Product Type | Network Cable |
| Manufacturer Part Number | ICCABR6VYL |
| Technical Information | |
| Material | PVC |
| Shielding | No |
| Cable Type | Category 6 |
| Jacket Type | Riser |
| Cable Rating | Riser |
| Conductor Count | 4 |
| Jacket Material | PVC |
| Number of Pairs | 4 |
| Device Supported | Network Device |
| Solid or Stranded | Solid |
| American Wire Gauge | 23AWG |
| Number of Conductors | 8 |
| Interfaces/Ports | |
| Connector Type | RJ45 |
| Media & Performance | |
| Data Transfer Rate | 1 Gbit/s |
| Physical Characteristics | |
| Color | Yellow |
| Cable Length | 1000' |
| Package Type | Pull Box |
| Insulation Material | FEP |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Attenuation to Crosstalk Ratio (ACR), Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT) |
| Country of Origin | TW |
| Environmentally Friendly | Yes |
| Certifications & Standards | ETL, RoHS, TIA, UL |
| Environmental Certification | RoHS |
