Aiphone JPS-4AED 7" Touchscreen Video Intercom Set, 3-Piece

SKU: JPS-4AED Aiphone
Aiphone JP Series: Video Intercom with 7-Inch Touchscreen
Product images for Aiphone JPS-4AED 7" Touchscreen Video Intercom Set, 3-Piece. 4 image(s) available. Click on image to view full size.

Key Features

  • Intuitive 7" touchscreen lets reception and staff identify visitors and grant access quickly
  • Hands-free full‑duplex audio for natural two-way communication and reliable on-site monitoring
  • Wide‑angle 1/4" CMOS camera (170°) enhances surveillance and reduces blind spots at entry points
  • Supports up to 4 door stations and 7 sub‑masters to scale with multi‑door or multi‑tenant sites
  • Simple surface‑mount, 2‑wire installation and included 24V DC UL/CSA power supply for dependable operation

Quick Specifications

Brand Name
Aiphone
Manufacturer
Aiphone Co., Ltd
Product Name
JP Series: Video Intercom with 7-Inch Touchscreen
Product Type
Video Door Entry Kit
View Full Technical Specifications

Frequently Bought Together

This Item
Aiphone JPS-4AED 7" Touchscreen Video Intercom Set, 3-Piece

Aiphone JPS-4AED 7" Touchscreen Video Intercom Set, 3-Piece

$2,153.17

Frequently Bought Together (2 items)

3 items selected

Total: $6,512.64

Product Information Tabs

Overview

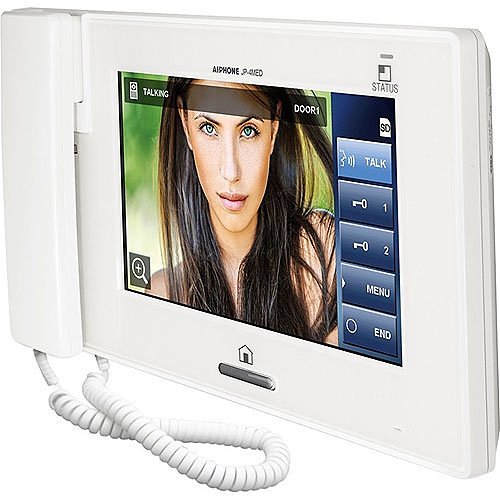

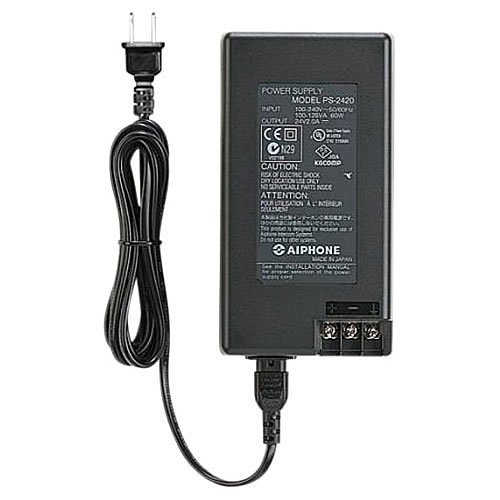

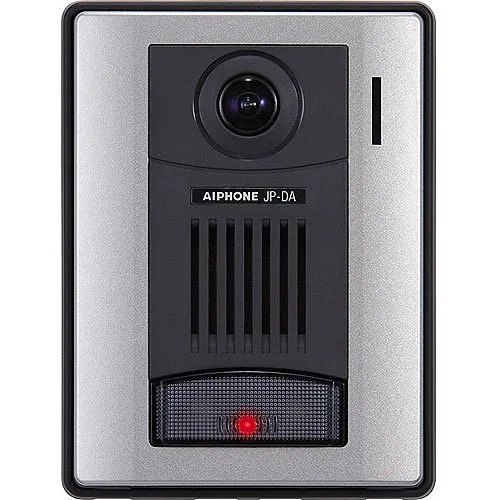

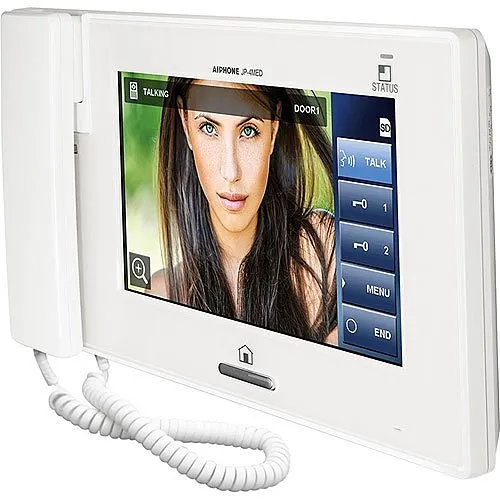

Improve visitor screening and access control with the Aiphone JPS-4AED 7" Touchscreen Video Intercom Set — a complete intercom system kit designed for business security and building monitoring. The system centers on a responsive 7" color touchscreen master station that provides clear video, one-touch door release and hands-free (VOX) or handset duplex communication for natural conversations. The surface‑mount door station features a 1/4" CMOS camera with a wide 170° horizontal view so staff can quickly verify visitors and reduce blind spots. Built for real installations, the kit supports up to 4 door stations and 7 sub‑masters on a simple 2‑wire topology with a maximum wiring distance of 330', powered by the included PS-242UL 24V DC UL/CSA listed supply. Ideal for offices, multi-tenant buildings, healthcare and education, this wired video entry solution blends reliable surveillance, straightforward installation and scalable access control. Add the Aiphone JPS-4AED to your security plan for clearer monitoring and faster visitor handling — contact us or order now to deploy a professional video intercom system.

Features

  • Intuitive 7" touchscreen lets reception and staff identify visitors and grant access quickly
  • Hands-free full‑duplex audio for natural two-way communication and reliable on-site monitoring
  • Wide‑angle 1/4" CMOS camera (170°) enhances surveillance and reduces blind spots at entry points
  • Supports up to 4 door stations and 7 sub‑masters to scale with multi‑door or multi‑tenant sites
  • Simple surface‑mount, 2‑wire installation and included 24V DC UL/CSA power supply for dependable operation
General Information
Brand Name Aiphone
Manufacturer Aiphone Co., Ltd
Product Name JP Series: Video Intercom with 7-Inch Touchscreen
Product Type Video Door Entry Kit
Product Model JPS-4AED
Product Series JP
Manufacturer Part Number JPS-4AED
Technical Information
Wiring Type 2-wire
Number of Doors 4
Communication Mode Full-duplex
Connectivity Technology Wired
Maximum Wiring Distance 330'
Camera
Image Sensor Type CMOS
Horizontal Viewing Angle 170°
Certifications
TAA Compliant No
Display & Graphics
Screen Size 7"
Vertical Viewing Angle 100°
Physical Characteristics
Color White
Form Factor Surface Mount
Power Description
Input Voltage 24V DC
Product Information
Mount Type Surface Mount
Display Screen Type LCD
Miscellaneous
Country of Origin TH
