Aiphone JPS-4AEDV JP Series 7" Touchscreen Surface Video Intercom Set, 3-Piece

SKU: JPS-4AEDV Aiphone
Image of AJ-JPS4AEDV
Product images for Aiphone JPS-4AEDV JP Series 7" Touchscreen Surface Video Intercom Set, 3-Piece. 4 image(s) available. Click on image to view full size.

Key Features

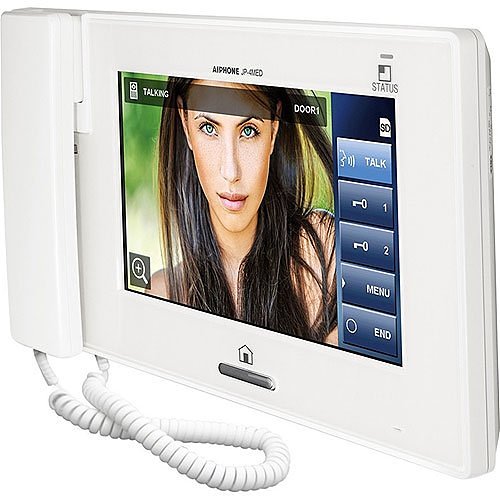

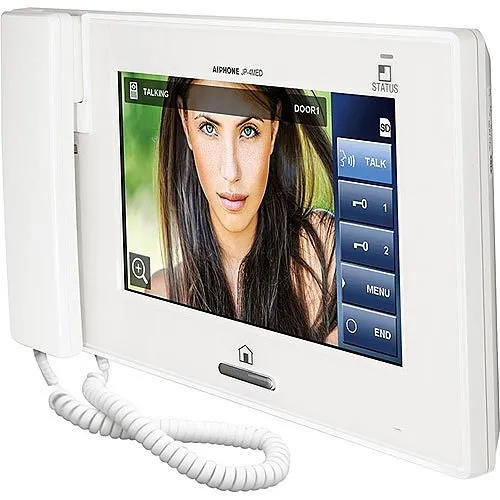

  • Simplify secure entry with a 7" touchscreen master that enables visual verification and one-touch door release for fast visitor handling
  • Scalable 3-piece kit supports up to 4 door stations and 8 inside stations to fit small offices, retail sites, and multi-tenant buildings

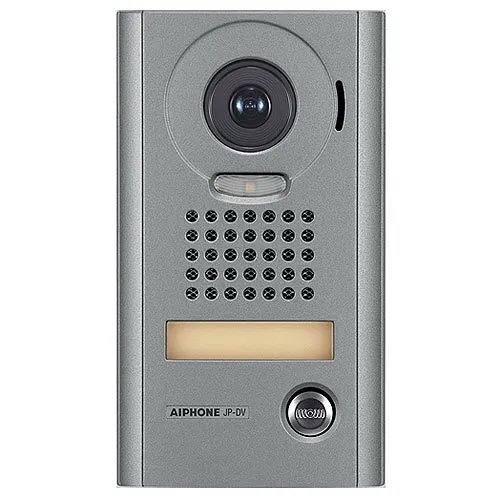

  • Vandal- and weather-resistant surface door station with 170° camera for reliable outdoor surveillance and clear visitor identification
  • Wired, full-duplex communication and 330' max wiring distance provide stable, low-latency monitoring and access control across your site

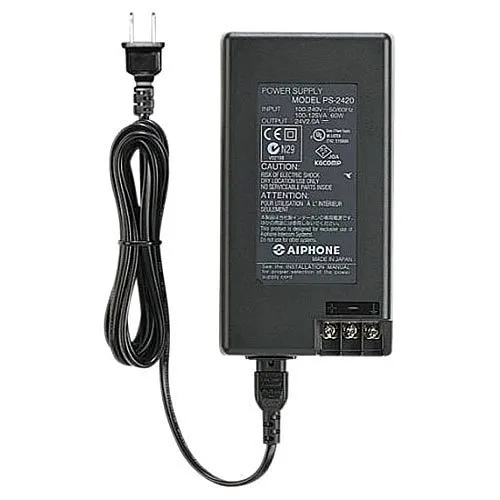

  • Includes UL-listed 24VDC power supply (PS-242UL) and tamper-resistant mounting for compliant, professional installations

Quick Specifications

Product Model
JPS-4AEDV
Brand Name
Aiphone
Product Name
JPS-4AEDV Video Door Phone
Product Type
Video Door Entry Kit
View Full Technical Specifications

Frequently Bought Together

This Item
Aiphone JPS-4AEDV JP Series 7" Touchscreen Surface Video Intercom Set, 3-Piece

Aiphone JPS-4AEDV JP Series 7" Touchscreen Surface Video Intercom Set, 3-Piece

$2,328.19

Frequently Bought Together (2 items)

3 items selected

Total: $6,644.72

Explore the details

Product information

JPS-4AEDV

Overview

Deliver professional-grade entry security and streamlined visitor management with the Aiphone JPS-4AEDV 3-piece intercom system kit. Designed for businesses that need dependable video door entry, this Aiphone solution combines a 7" color touchscreen master station with a die-cast, vandal-resistant surface door station and a UL-listed 24VDC power supply. The door station’s wide 170° camera and built-in mic/speaker let staff visually verify visitors and conduct hands-free or handset communication, while the master supports up to 4 door stations and 8 inside stations for flexible multi-door deployments. With wired full-duplex audio, a 330' maximum wiring distance, and durable weather-resistant construction, the kit is ideal for retail storefronts, small office buildings, property management, and other access control applications where consistent surveillance and monitoring matter. Backed by a 2-year limited warranty and tamper-resistant hardware, the JPS-4AEDV minimizes downtime and simplifies installations. Upgrade your site’s security and visitor workflow—order this Aiphone video intercom kit for a secure, professional access control solution.

Features

  • Simplify secure entry with a 7" touchscreen master that enables visual verification and one-touch door release for fast visitor handling
  • Scalable 3-piece kit supports up to 4 door stations and 8 inside stations to fit small offices, retail sites, and multi-tenant buildings
  • Vandal- and weather-resistant surface door station with 170° camera for reliable outdoor surveillance and clear visitor identification
  • Wired, full-duplex communication and 330' max wiring distance provide stable, low-latency monitoring and access control across your site
  • Includes UL-listed 24VDC power supply (PS-242UL) and tamper-resistant mounting for compliant, professional installations
25 of 25 specifications
Technical specifications for Aiphone JPS-4AEDV JP Series 7" Touchscreen Surface Video Intercom Set, 3-Piece
General Information
Brand Name Aiphone
Manufacturer Aiphone Co., Ltd
Product Name JPS-4AEDV Video Door Phone
Product Type Video Door Entry Kit
Product Model JPS-4AEDV
Product Series JP
Application/Usage Door Entry
Country of Origin TH
Manufacturer Part Number JPS-4AEDV
Technical Information
Wiring Type 2-wire
Number of Doors 4
Communication Mode Full-duplex
Connectivity Technology Wired
Maximum Wiring Distance 330'
Camera
Image Sensor Type CMOS
Certifications
TAA Compliant No
Display & Graphics
Screen Size 7"
Touchscreen Yes
Physical Characteristics
Material Die-cast Zinc
Durability Vandal Resistant, Weather Resistant
Form Factor Surface Mount
Power Description
Input Voltage 24V DC
Product Information
Mount Type Surface Mount
Display Screen Type LCD
Warranty
Limited Warranty 5-Year
