AtlasIED PM8FA-WH 8" 2-Way Pendant Mount Speaker with 60W 70.7V Transformer, White

SKU: PM8FA-WH AtlasIED
Atlas Sound PM8FA 2-way Ceiling Mountable, Pendant Mount Speaker - 70 W RMS - White

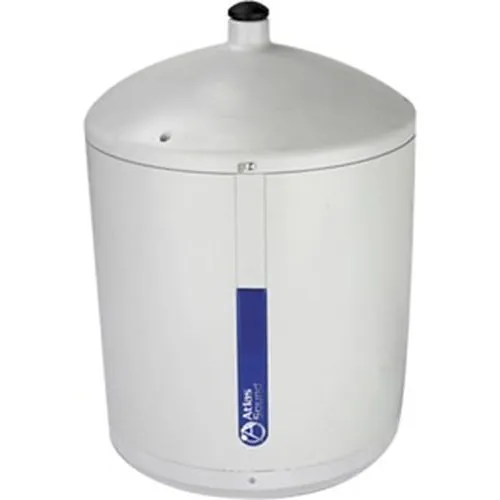

Product images for AtlasIED PM8FA-WH 8" 2-Way Pendant Mount Speaker with 60W 70.7V Transformer, White. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Delivers clear, natural voice and music coverage for low-height installations, improving intelligibility for paging and background music
  • Built-in 60W 70.7V transformer with multiple taps simplifies integration into commercial PA and security audio systems
  • 8" two-way driver provides wide dispersion and a full-range response (60 Hz–20 kHz) so announcements and music remain natural and audible
  • Quick pendant or ceiling-fan style installation with included 3 m cable and hardware reduces labor time on retrofits and new builds
  • NDAA-compliant indoor design offers a reliable, professional-grade solution for retail, education, hospitality, and monitoring environments

Quick Specifications

Product Model
PM8FA
Brand Name
AtlasIED
Product Name
8" 2-way Pendant Mount Loudspeaker with 60-Watt 70.7V Transformer
Product Type
Speaker
View Full Technical Specifications

Explore the details

Product information

PM8FA-WH

Overview

When clear, intelligible audio is required in open indoor spaces, the AtlasIED PM8FA-WH pendant speaker delivers dependable performance for paging, background music and security monitoring. This AtlasIED 8" 2-way pendant mount speaker combines the wide dispersion of a Strategy Series FA138 driver with a built-in 60W 70.7V transformer to make system design and zoning straightforward. With a full-range response down to 60 Hz and up to 20 kHz, the PM8FA preserves voice clarity and musical detail across busy environments such as retail floors, lobbies, classrooms and surveillance hubs. Installers benefit from reduced labor — the unit ships with 3 meters of cable and mounts to standard 3/4" ceiling-fan hardware for fast pendant or down-pipe mounting. Rated at 70W RMS and offering multiple transformer taps plus an 8-ohm direct input, it adapts to both distributed 70.7V systems and low-impedance amplifiers. NDAA-compliant and built for indoor commercial use, the PM8FA-WH is an ideal choice for integrators specifying reliable audio for PA, security, and monitoring applications. Contact your AtlasIED reseller or add to cart to streamline your next audio/security installation.

Features

  • Delivers clear, natural voice and music coverage for low-height installations, improving intelligibility for paging and background music
  • Built-in 60W 70.7V transformer with multiple taps simplifies integration into commercial PA and security audio systems
  • 8" two-way driver provides wide dispersion and a full-range response (60 Hz–20 kHz) so announcements and music remain natural and audible
  • Quick pendant or ceiling-fan style installation with included 3 m cable and hardware reduces labor time on retrofits and new builds
  • NDAA-compliant indoor design offers a reliable, professional-grade solution for retail, education, hospitality, and monitoring environments
23 of 23 specifications
Technical specifications for AtlasIED PM8FA-WH 8" 2-Way Pendant Mount Speaker with 60W 70.7V Transformer, White
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Name 8" 2-way Pendant Mount Loudspeaker with 60-Watt 70.7V Transformer
Product Type Speaker
Product Model PM8FA
Manufacturer Part Number PM8FA-WH
Technical Information
Material Poly
Impedance 8 ohms
Sensitivity 90dB
Speaker Size 8"
Crossover Type 2-way
Audio
RMS Output Power 70W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 60Hz
Certifications
TAA Compliant No
NDAA Compliant Yes
Physical Characteristics
Size 8"
Color White
Height 16.6"
Weight 25 lb
Product Information
Diameter 12.3"
Mount Type Ceiling Mount, Pendant Mount
Miscellaneous
Indoor/Outdoor Indoor
