Hanwha PNM-12082RVD P Series 6MPx2-Channel Multi-Directional IP Dome Camera, 3.54-6.69mm Motorized Varifocal Lens, Outdoor, Vandal-Rated, IP66, IK10

SKU: PNM-12082RVD Hanwha Vision
Hanwha PNM-12082RVD 6MP 2-Sensor Outdoor Multidirectional Vandal Rated IR WDR IP Dome Camera, 3.4-6.8mm Lens

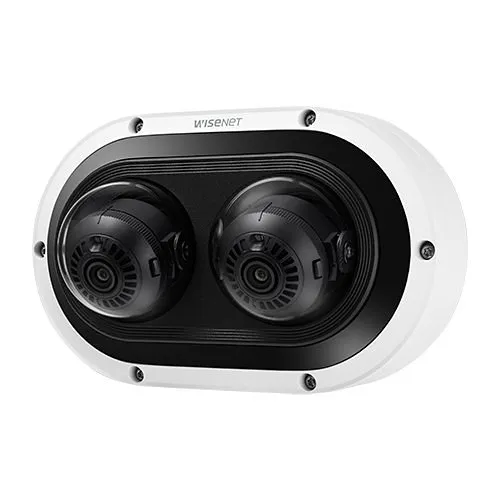

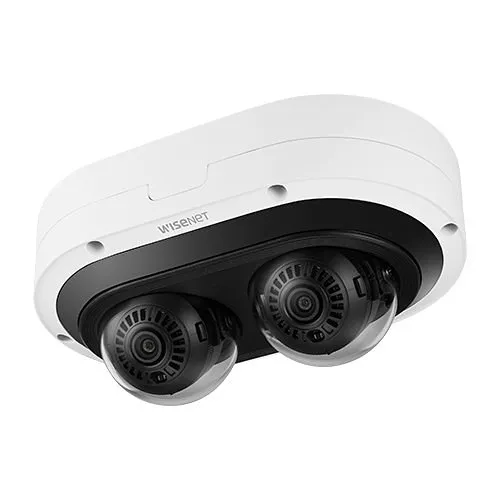

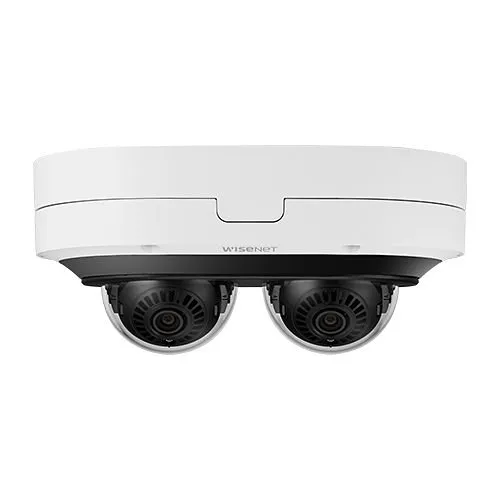

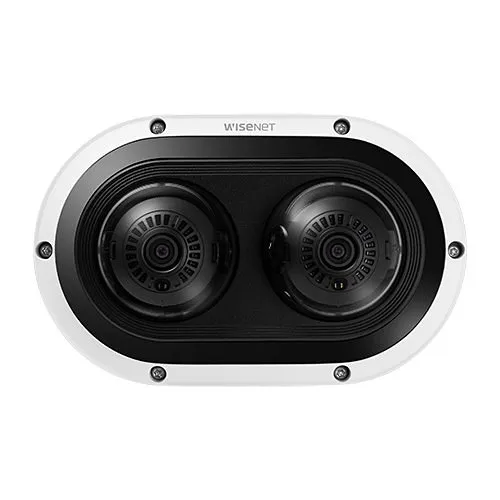

Product images for Hanwha PNM-12082RVD P Series 6MPx2-Channel Multi-Directional IP Dome Camera, 3.54-6.69mm Motorized Varifocal Lens, Outdoor, Vandal-Rated, IP66, IK10. 5 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Multi-directional 6MP dual-sensor coverage reduces blind spots and consolidates multiple cameras into one for lower installation and maintenance costs.
  • Rugged outdoor protection (IP66, IK10, NEMA4X) ensures continuous surveillance in harsh or vandal-prone environments.
  • Motorized 3.54–6.69mm varifocal lens with 25m IR and extremeWDR (120 dB) delivers clear, usable images day or night for reliable incident investigation.
  • Built-in license-free analytics (line crossing, loitering, intrusion, tamper, enter/exit) cuts false alarms and speeds event response.
  • Efficient H.265/WiseStream II streaming and local SD storage reduce bandwidth and storage costs while preserving critical evidence.

Quick Specifications

Product Model
PNM-12082RVD
Brand Name
Hanwha Vision
Product Name
6MP X 2 IR Outdoor Dome
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha PNM-12082RVD P Series 6MPx2-Channel Multi-Directional IP Dome Camera, 3.54-6.69mm Motorized Varifocal Lens, Outdoor, Vandal-Rated, IP66, IK10

Hanwha PNM-12082RVD P Series 6MPx2-Channel Multi-Directional IP Dome Camera, 3.54-6.69mm Motorized Varifocal Lens, Outdoor, Vandal-Rated, IP66, IK10

$1,040.40

Frequently Bought Together (4 items)

5 items selected

Total: $2,230.66

Product Information Tabs

Overview

For large outdoor sites that require uninterrupted, wide-area monitoring, the Hanwha Vision PNM-12082RVD P Series multi-directional IP dome brings comprehensive surveillance in a single, vandal-rated unit. This network panoramic camera combines two 6MP sensors and a motorized 3.54–6.69mm varifocal lens to cover multiple angles without gaps, reducing hardware and installation complexity. Whether monitoring parking lots, transit hubs, perimeter fences or retail exteriors, the camera’s extremeWDR (120 dB) and 25 m IR give clear images in high-contrast or low-light scenes, while WiseStream II and H.265 codecs optimize bandwidth and storage. Durable IP66/IK10 construction and NEMA4X rating provide reliable outdoor performance in extreme temperatures, and built-in, license-free analytics (virtual line, intrusion, loitering, tamper) help prioritize alerts and streamline investigations. TPM 2.0 security and remote management support help meet enterprise security and compliance needs. Deploy the PNM-12082RVD where robust, scalable surveillance and reduced false alarms matter—contact sales to specify mounting options or order for perimeter and facility monitoring.

Features

  • Multi-directional 6MP dual-sensor coverage reduces blind spots and consolidates multiple cameras into one for lower installation and maintenance costs.
  • Rugged outdoor protection (IP66, IK10, NEMA4X) ensures continuous surveillance in harsh or vandal-prone environments.
  • Motorized 3.54–6.69mm varifocal lens with 25m IR and extremeWDR (120 dB) delivers clear, usable images day or night for reliable incident investigation.
  • Built-in license-free analytics (line crossing, loitering, intrusion, tamper, enter/exit) cuts false alarms and speeds event response.
  • Efficient H.265/WiseStream II streaming and local SD storage reduce bandwidth and storage costs while preserving critical evidence.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 6MP X 2 IR Outdoor Dome
Product Type Network Camera
Product Model PNM-12082RVD
Product Series P
Manufacturer Part Number PNM-12082RVD
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 1.9x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.67
Night Vision Type Infrared
Maximum Frame Rate 15fps
Minimum Focal Length 3.54mm
Connectivity Technology Wired
Field of View (Vertical) 51°
Field of View (Horizontal) 96°
Effective Camera Resolution 6MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 82.02 ft
Certifications
TAA Compliant Yes
Ingress Protection Rating IP66, IP67
Display & Graphics
Number of Sensors 2
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.54-6.69mm
Lens Included Yes
Minimum Aperture f/2.64
Maximum Focal Length 6.69mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces PNM-9000VD
Physical Characteristics
Color White
Depth 5.3"
Width 8.5"
Height 3.7"
Weight 2.93lb
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor Dome
Product Information
Mount Type Box Mount, Ceiling Mount, Corner Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Audio Detection, Back Light Compensation (BLC), Day/Night, Defog, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin KR
Impact Protection Rating IK10
