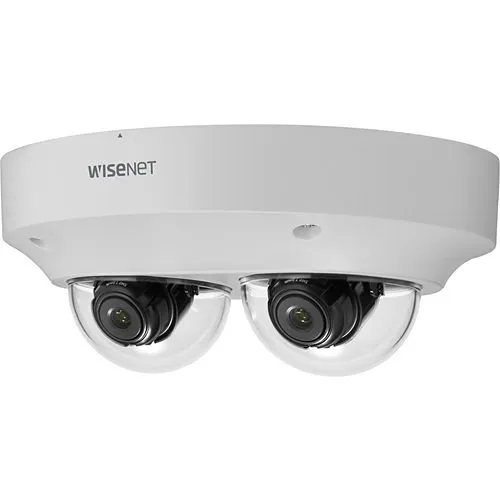

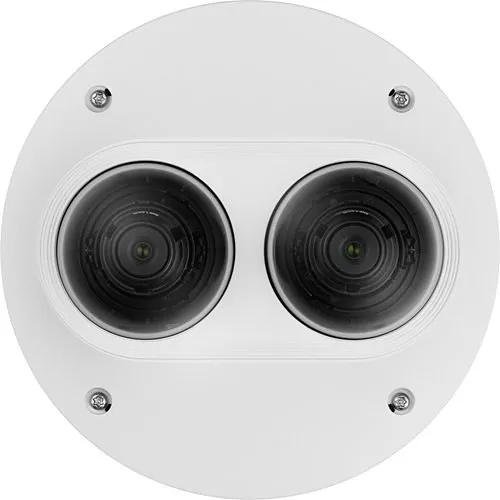

Hanwha PNM-9000VD P-Series 10MP Dual-Eye Multi-Directional Camera, 3.7mm, 4.6mm and 7mm Fixed Lenses Options, White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Expand coverage with dual 5MP interchangeable lens modules (10MP total) to replace multiple cameras and simplify surveillance deployments
- Capture clear, usable evidence in challenging light with 120 dB WDR and 30 fps at 5MP, improving incident review and response times
- Reduce bandwidth and storage costs using H.265 and WiseStream compression while preserving critical image detail
- Rugged, all-weather design (IP66/IP67-rated housing and IK10 impact resistance) for reliable outdoor monitoring
- Onboard dual SD card slots and advanced analytics (face detection, motion, tamper) for local recording and smarter alerts
- NDAA compliant and network-ready with remote management for easy integration into enterprise security systems
Quick Specifications
- Product Model
- PNM-9000VD
- Brand Name
- Hanwha Vision
- Product Name
- 2x 5MP Multi-Sensor Multi-Directional Camera
- Product Type
- Network Camera
Frequently Bought Together
Hanwha PNM-9000VD P-Series 10MP Dual-Eye Multi-Directional Camera, 3.7mm, 4.6mm and 7mm Fixed Lenses Options, White
9 items selected
Total: $1,663.95
Product Information Tabs
Overview
Optimize perimeter and wide-area monitoring with the Hanwha Vision PNM-9000VD P-Series panoramic camera. This multi-directional network camera pairs two interchangeable 5MP modules to deliver a combined 10MP solution that reduces the number of fixtures needed and delivers comprehensive situational awareness for retail, campus, transportation, and critical infrastructure. Record smooth, usable video at up to 30 fps per 5MP module while minimizing bandwidth and storage with H.265 and WiseStream compression. Built for real-world security, the PNM-9000VD handles high-contrast scenes with 120 dB WDR and operates reliably in harsh environments thanks to IP66 weatherproofing and IK10 impact protection. Dual onboard SD slots, NDAA compliance, and built-in analytics—like face detection, motion, and tamper—help you capture and act on events faster. Note: lens modules are required and sold separately, allowing you to configure focal lengths (3.7mm, 4.6mm, 7mm) to match each application. Upgrade your surveillance architecture with a scalable panoramic camera that balances image quality, durability, and operational efficiency—contact sales to configure lens modules and order.
Features
- Expand coverage with dual 5MP interchangeable lens modules (10MP total) to replace multiple cameras and simplify surveillance deployments
- Capture clear, usable evidence in challenging light with 120 dB WDR and 30 fps at 5MP, improving incident review and response times
- Reduce bandwidth and storage costs using H.265 and WiseStream compression while preserving critical image detail
- Rugged, all-weather design (IP66/IP67-rated housing and IK10 impact resistance) for reliable outdoor monitoring
- Onboard dual SD card slots and advanced analytics (face detection, motion, tamper) for local recording and smarter alerts
- NDAA compliant and network-ready with remote management for easy integration into enterprise security systems
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | 2x 5MP Multi-Sensor Multi-Directional Camera |
| Product Type | Network Camera |
| Product Model | PNM-9000VD |
| Product Series | P |
| Manufacturer Part Number | PNM-9000VD |
| Technical Information | |
| Lens Type | Fixed |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Frame Rate | 30fps |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Number of Sensors | 2 |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Lens Included | No |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Width | 7.78" |
| Height | 3.31" |
| Weight | 2.76lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Product Information | |
| Diameter | 7.8" |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Built-in Card Reader, Day/Night, Defog, Digital Noise Reduction, Face Detection, Motion Detection, Privacy Masking, Tampering Alarm |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
