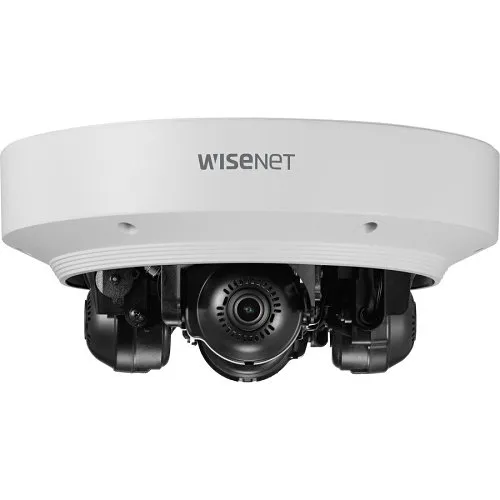

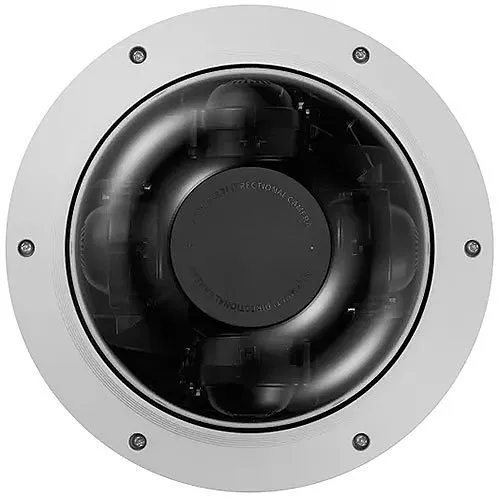

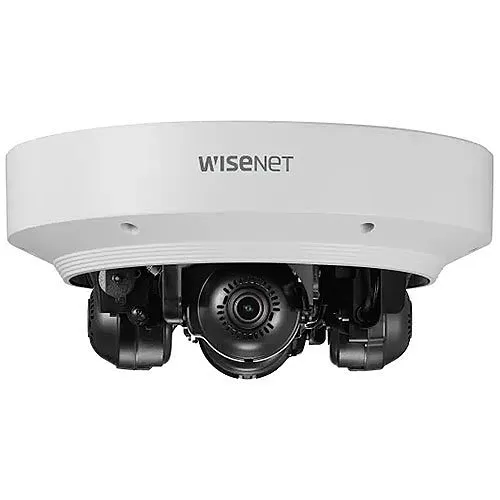

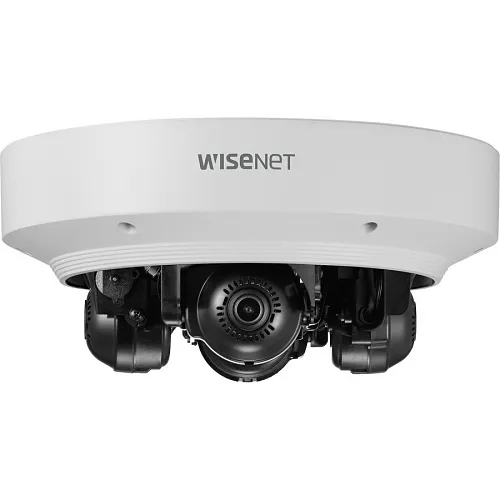

Hanwha PNM-9084QZ1 P Series 8MP (2MP x 4) Multi-Sensor Multi-Directional PTRZ Camera, 3-6mm Motorized Varifocal Lens, IP66, IK10 (Replaces PNM-9084QZ)

SKU: PNM-9084QZ1 Hanwha Vision
Hanwha PNM-9084QZ1 8MP WDR Multi-Sensor PTRZ Camera, 3-6mm Motorized Varifocal Lens
Product images for Hanwha PNM-9084QZ1 P Series 8MP (2MP x 4) Multi-Sensor Multi-Directional PTRZ Camera, 3-6mm Motorized Varifocal Lens, IP66, IK10 (Replaces PNM-9084QZ). 5 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Simplify installation and setup with a compact, lightweight dome and remote motorized PTRZ so adjustments can be made without a ladder.
  • Achieve wide-area, multi-directional surveillance with four 2MP sensors (8MP total), reducing the need for multiple cameras.
  • Fine-tune view and identification with a 3–6mm motorized varifocal lens and 2x optical zoom for clear monitoring at varying distances.
  • Dependable outdoor performance thanks to IP66 weatherproofing and IK10 vandal resistance for continuous security in harsh environments.
  • Lower bandwidth and storage costs with H.265 video compression and onboard SD recording for efficient network surveillance.

Quick Specifications

Product Model
PNM-9084QZ1
Brand Name
Hanwha Vision
Product Name
2MP x 4CH PTRZ Multi-directional Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Deliver comprehensive, install-friendly surveillance across large indoor or outdoor sites with the Hanwha Vision PNM-9084QZ1 P Series panoramic camera. Designed for security professionals, this multi-sensor network camera combines four 2MP sensors (8MP total) with a 3–6mm motorized varifocal lens and remote PTRZ (pan/tilt/rotate/zoom) control so you can aim, zoom and focus cameras from the ground—saving installation time and ongoing maintenance costs. Built for mission-critical monitoring, the PNM-9084QZ1 includes robust IP66 weatherproofing and IK10 impact protection to withstand vandalism and extreme conditions. Efficient H.265 video encoding and local SD storage reduce bandwidth and retention expenses while preserving crisp footage for identification and evidence. Advanced image features such as WDR, defog and day/night modes keep scenes clear in challenging lighting and weather. Ideal for retail, transit hubs, campuses and perimeter security, this Hanwha Vision panoramic camera simplifies multi-directional monitoring with fewer devices. Upgrade your security footprint—contact sales or add to cart to deploy reliable, high-coverage surveillance.

Features

  • Simplify installation and setup with a compact, lightweight dome and remote motorized PTRZ so adjustments can be made without a ladder.
  • Achieve wide-area, multi-directional surveillance with four 2MP sensors (8MP total), reducing the need for multiple cameras.
  • Fine-tune view and identification with a 3–6mm motorized varifocal lens and 2x optical zoom for clear monitoring at varying distances.
  • Dependable outdoor performance thanks to IP66 weatherproofing and IK10 vandal resistance for continuous security in harsh environments.
  • Lower bandwidth and storage costs with H.265 video compression and onboard SD recording for efficient network surveillance.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 2MP x 4CH PTRZ Multi-directional Camera
Product Type Network Camera
Product Model PNM-9084QZ1
Product Series P
Manufacturer Part Number PNM-9084QZ1
Technical Information
Lens Type Varifocal
Optical Zoom 2x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/2.2
Maximum Frame Rate 60fps
Minimum Focal Length 3mm
Connectivity Technology Wired
Effective Camera Resolution 8MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
TAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Number of Sensors 4
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3-6mm
Lens Included Yes
Minimum Aperture f/3.1
Maximum Focal Length 6mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces PNM-9084QZ
Physical Characteristics
Color White
Weight 6.61lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Product Information
Diameter 9.9"
Mount Type Ceiling Mount, Pendant Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Wide Dynamic Range (D-WDR), Gain Control, Highlight Compensation (HLC), Password Protection, SD Card Local Storage, Wide Dynamic Range
Country of Origin KR
Impact Protection Rating IK10
