Hanwha PNM-9085RQZ1 20MP (5MP x 4) Multi-Sensor Multi-Directional PTRZ Camera, 4.13-9.4mm Motorized PTRZ Varifocal Lens, IP66, IK10 (Replaces PNM-9085RQZ)

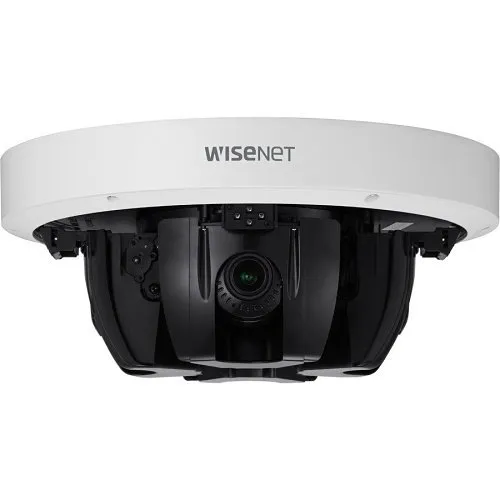

Image of 4
Key Features
- Capture expansive, detailed scenes with four 5MP sensors (20MP total) — reduces the need for multiple cameras and lowers installation costs.
- Robust outdoor performance (IP66, IK10) that keeps surveillance reliable in harsh weather and high-impact environments.
- Flexible framing with a 4.13–9.4mm motorized PTRZ varifocal lens for fast, precise multi-directional monitoring and zoomed-in detail.
- Bandwidth- and storage-efficient H.265 video and multi-stream support, plus 30 fps performance for smooth, forensic-grade footage.
- Built-in IR and advanced WDR/defog features ensure clear, usable images in low light and challenging lighting conditions.
Quick Specifications
- Product Model
- PNM-9085RQZ1
- Brand Name
- Hanwha Vision
- Product Name
- 5MP x 4CH IR PTRZ Multi-directional Camera
- Product Type
- Network Camera
Frequently Bought Together
Hanwha PNM-9085RQZ1 20MP (5MP x 4) Multi-Sensor Multi-Directional PTRZ Camera, 4.13-9.4mm Motorized PTRZ Varifocal Lens, IP66, IK10 (Replaces PNM-9085RQZ)
$2,325.59
5 items selected
Total: $3,515.85
Product Information Tabs
Overview
Designed for wide-area security and continuous monitoring, the Hanwha Vision PNM-9085RQZ1 multi-sensor panoramic camera delivers comprehensive coverage and high-detail imaging from a single device. As a 5MP x 4 multi-directional network camera (20MP effective), it lets operators replace multiple fixed units while improving situational awareness in warehouses, transit hubs, parking facilities and retail entrances. The motorized 4.13–9.4mm PTRZ varifocal lens enables rapid framing and close-up inspection of incidents, while H.265 compression and multi-stream capability reduce bandwidth and storage costs without sacrificing image quality. Built to perform outdoors, the camera’s IP66 weatherproofing and IK10 impact resistance ensure dependable surveillance in harsh conditions. Advanced features such as WDR, IR night vision (up to ~98 ft), defog and onboard SD storage improve evidence capture and system resilience. For integrators and security teams seeking a single, scalable solution for perimeter and wide-area monitoring, the PNM-9085RQZ1 provides reliable, high-resolution coverage—ideal for large facilities and critical infrastructure. Contact your Hanwha Vision supplier to deploy this panoramic camera in your next surveillance project.
Features
- Capture expansive, detailed scenes with four 5MP sensors (20MP total) — reduces the need for multiple cameras and lowers installation costs.
- Robust outdoor performance (IP66, IK10) that keeps surveillance reliable in harsh weather and high-impact environments.
- Flexible framing with a 4.13–9.4mm motorized PTRZ varifocal lens for fast, precise multi-directional monitoring and zoomed-in detail.
- Bandwidth- and storage-efficient H.265 video and multi-stream support, plus 30 fps performance for smooth, forensic-grade footage.
- Built-in IR and advanced WDR/defog features ensure clear, usable images in low light and challenging lighting conditions.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | 5MP x 4CH IR PTRZ Multi-directional Camera |
| Product Type | Network Camera |
| Product Model | PNM-9085RQZ1 |
| Manufacturer Part Number | PNM-9085RQZ1 |
| Technical Information | |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 2.3x |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.9 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.13mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 64.58° |
| Field of View (Horizontal) | 87.58° |
| Effective Camera Resolution | 20MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98.43 ft |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Number of Sensors | 4 |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 4.13-9.4mm |
| Lens Included | Yes |
| Minimum Aperture | f/2.67 |
| Maximum Focal Length | 9.4mm |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | PNM-9085RQZ |
| Physical Characteristics | |
| Color | White |
| Weight | 11.46lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Product Information | |
| Diameter | 12.4" |
| Mount Type | Pendant Mount |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Wide Dynamic Range (D-WDR), Gain Control, Highlight Compensation (HLC), Password Protection, SD Card Local Storage, Wide Dynamic Range |
| Indoor/Outdoor | Outdoor |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
