Hanwha PNM-C12083RVD P-Series 6MP Outdoor IR Vandal Dome IP Camera, 3.54-6.69mm Lens, White

SKU: PNM-C12083RVD Hanwha Vision
Hanwha PNM-C12083RVD 6MP Outdoor IR Vandal-Rated Dome IP Camera, 2-Channels, 3.54-6.69mm Lens

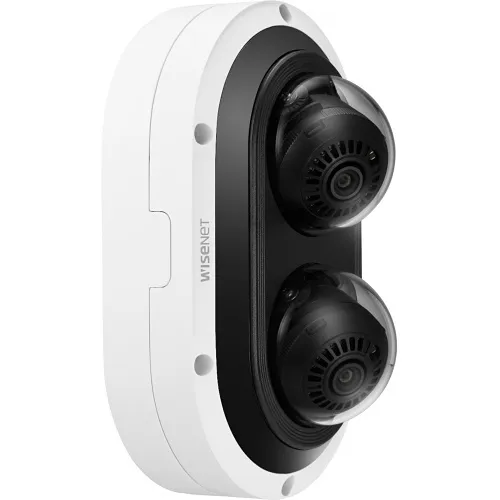

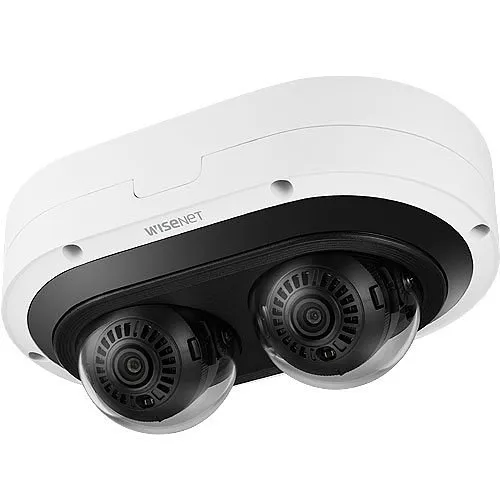

Product images for Hanwha PNM-C12083RVD P-Series 6MP Outdoor IR Vandal Dome IP Camera, 3.54-6.69mm Lens, White. 4 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Reliable 24/7 outdoor surveillance with dual 6MP sensors and IR up to 25m for clear day/night monitoring
  • AI-powered object classification (person/face/vehicle/license plate) to reduce false alarms and speed response
  • Motorized 3.54–6.69mm varifocal lens and 78° tilt for flexible panoramic coverage and simplified installation
  • Rugged IP66, IK10 and NEMA4X protection for vandal- and weather-resistant outdoor deployments
  • Onboard H.265, WiseStream III and TPM 2.0 deliver bandwidth-efficient recording and hardened data security

Quick Specifications

Product Model
PNM-C12083RVD
Brand Name
Hanwha Vision
Product Line
Wisenet
Product Name
6MP X 2 AI, IR Outdoor Dome
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha PNM-C12083RVD P-Series 6MP Outdoor IR Vandal Dome IP Camera, 3.54-6.69mm Lens, White

Hanwha PNM-C12083RVD P-Series 6MP Outdoor IR Vandal Dome IP Camera, 3.54-6.69mm Lens, White

$1,254.60

Frequently Bought Together (4 items)

5 items selected

Total: $2,444.86

Product Information Tabs

Overview

Designed for demanding outdoor security and monitoring, the Hanwha Vision PNM-C12083RVD P-Series panoramic dome delivers dependable 24/7 surveillance with the clarity and intelligence modern sites require. As a dual-sensor network camera, it captures combined 6MP imagery and uses AI analytics to classify people, faces, vehicles and license plates—reducing false alarms and accelerating forensic review. The motorized 3.54–6.69mm varifocal lens plus a 78° tilt range makes it simple to dial in the optimal field of view for parking lots, building perimeters, campuses, and transit hubs. Night and low-light performance are strengthened by infrared illumination (up to ~25 m) and WiseStream III/H.265 compression keeps bandwidth and storage needs efficient. Built for outdoor use, the PNM-C12083RVD features IP66, IK10 and NEMA4X ratings for reliable operation in harsh environments, and TPM 2.0 provides hardware-level security for sensitive deployments. Ideal for integrators and security managers who want intelligent, resilient panoramic cameras for continuous monitoring—add this Hanwha Vision camera to your next perimeter or facility surveillance project.

Features

  • Reliable 24/7 outdoor surveillance with dual 6MP sensors and IR up to 25m for clear day/night monitoring
  • AI-powered object classification (person/face/vehicle/license plate) to reduce false alarms and speed response
  • Motorized 3.54–6.69mm varifocal lens and 78° tilt for flexible panoramic coverage and simplified installation
  • Rugged IP66, IK10 and NEMA4X protection for vandal- and weather-resistant outdoor deployments
  • Onboard H.265, WiseStream III and TPM 2.0 deliver bandwidth-efficient recording and hardened data security
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Line Wisenet
Product Name 6MP X 2 AI, IR Outdoor Dome
Product Type Network Camera
Product Model PNM-C12083RVD
Product Series P
Manufacturer Part Number PNM-C12083RVD
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 1.9x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.67
Night Vision Type Infrared
Maximum Frame Rate 15fps
Minimum Focal Length 3.54mm
Connectivity Technology Wired
Effective Camera Resolution 6MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 82.02 ft
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Number of Sensors 2
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.54-6.69mm
Lens Included Yes
Minimum Aperture f/2.64
Maximum Focal Length 6.69mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Depth 5.3"
Width 8.5"
Height 3.7"
Weight 2.93lb
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor Dome
Product Information
Length 5.3"
Mount Type Ceiling Mount, Conduit Mount, Corner Mount, Gang Box Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features Back Light Compensation (BLC), Day/Night, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, White Balance, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin KR
Impact Protection Rating IK10
