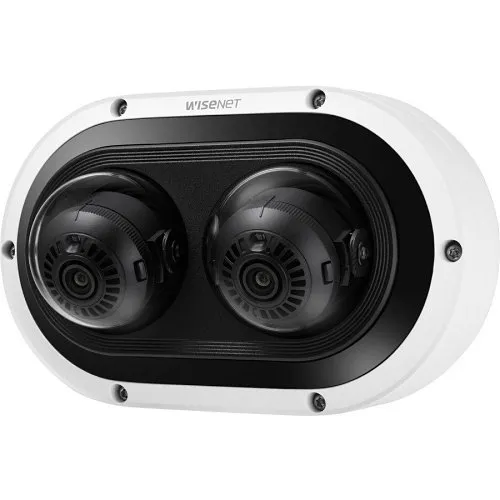

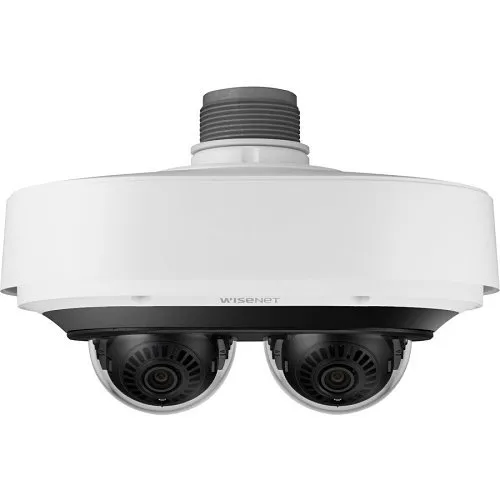

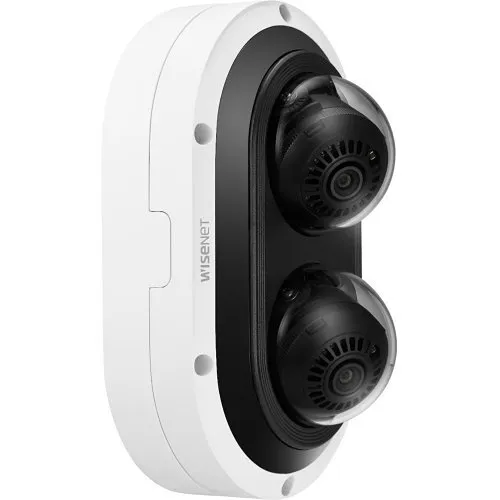

Hanwha PNM-C7083RVD P Series 2MP x 2 AI IR Multi-Directional Dome Camera, 3-6mm Motorized Varifocal Lens, Outdoor, Vanda-Rated, IP66, IK10
Image of 4
Key Features
- Cover more area with fewer devices: dual 2MP sensors and 3–6mm motorized varifocal lenses deliver multi-directional coverage to reduce blind spots and installation costs.
- Smarter alerts, faster response: built-in AI analytics classifies person, face, vehicle and license plate to cut false alarms and prioritize critical events.
- Clear images in any light: extreme WDR (120 dB) plus 25m IR night vision preserve usable detail in high-contrast and low-light scenes for reliable monitoring.
- Rugged, weatherproof design: IP66/NEMA4X and IK10 vandal resistance protect outdoor sites from dust, water and impact for long-term uptime.
- Bandwidth- and storage-efficient: H.265 support, WiseStream optimizations and onboard microSD recording (up to 512GB) lower network load and TCO.
Quick Specifications
- Product Model
- PNM-C7083RVD
- Brand Name
- Hanwha Vision
- Product Name
- 2MP x 2 AI IR Multi-directional Dome
- Product Type
- Dome Camera
Frequently Bought Together
Hanwha PNM-C7083RVD P Series 2MP x 2 AI IR Multi-Directional Dome Camera, 3-6mm Motorized Varifocal Lens, Outdoor, Vanda-Rated, IP66, IK10
$1,071.00
5 items selected
Total: $2,261.26
Product Information Tabs
Overview
Ideal for perimeter and campus surveillance, the Hanwha Vision PNM-C7083RVD Multi-Directional Dome Camera delivers wide-area security with fewer installs. This P Series panoramic camera combines two 2MP sensors with 3–6mm motorized varifocal lenses to capture multiple angles simultaneously, reducing blind spots and installation complexity. The camera’s onboard AI analytics classifies people, faces, vehicles and license plates to reduce false alarms and accelerate incident triage for security teams. Advanced imaging—extremeWDR (120 dB) and IR illumination to 25 m—ensures clear evidence in challenging lighting and at night, while H.265 and WiseStream bandwidth optimizations plus up to 512GB microSD storage minimize network and storage costs. Built for harsh outdoor environments, the PNM-C7083RVD meets IP66/NEMA4X and IK10 ratings and supports PoE for simplified deployment. TAA/NDAA compliance and TPM 2.0 security make it suitable for government and enterprise projects. Upgrade your monitoring and incident response—specify this Hanwha Vision dome camera for robust, AI-powered surveillance on campuses, parking areas and critical infrastructure.
Features
- Cover more area with fewer devices: dual 2MP sensors and 3–6mm motorized varifocal lenses deliver multi-directional coverage to reduce blind spots and installation costs.
- Smarter alerts, faster response: built-in AI analytics classifies person, face, vehicle and license plate to cut false alarms and prioritize critical events.
- Clear images in any light: extreme WDR (120 dB) plus 25m IR night vision preserve usable detail in high-contrast and low-light scenes for reliable monitoring.
- Rugged, weatherproof design: IP66/NEMA4X and IK10 vandal resistance protect outdoor sites from dust, water and impact for long-term uptime.
- Bandwidth- and storage-efficient: H.265 support, WiseStream optimizations and onboard microSD recording (up to 512GB) lower network load and TCO.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 2MP x 2 AI IR Multi-directional Dome |
| Product Type | Dome Camera |
| Product Model | PNM-C7083RVD |
| Product Series | P |
| Manufacturer Part Number | PNM-C7083RVD |
| Technical Information | |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 2x |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2.2 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 57° |
| Field of View (Horizontal) | 107° |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 82.02 ft |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Number of Sensors | 2 |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 95% RH (Non-condensing) |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0.0035 lux |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3-6mm |
| Lens Included | Yes |
| Minimum Aperture | f/3.1 |
| Maximum Focal Length | 6mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Depth | 5.31" |
| Width | 8.46" |
| Height | 3.67" |
| Weight | 2.93lb |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof |
| Form Factor | Dome |
| Product Information | |
| Mount Type | Ceiling Mount, Conduit Mount, Corner Mount, Gang Box Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | , NEMA4X,, Day and Night (ICR), DIS and Handover, ExtremeWDR (120dB), FIPS 140-2 compliant, Metal shielded RJ-45, Hard-coated dome bubble, Micro SD card slot supoorts uo to 512GB, Operating temperature - -40°C - 55°C(-40°F - 131°F), Power - PoE |
| Indoor/Outdoor | Outdoor |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
