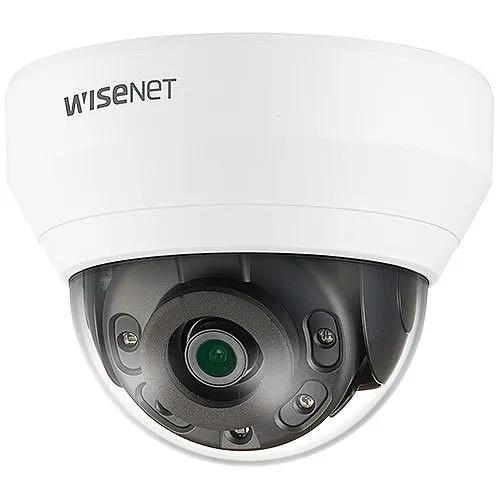

Hanwha QND-7022R Q Series 4MP IR IP Dome Camera, 3.6mm Fixed Lens, Built-In Microphone, Plastic, White

SKU: QND-7022R Hanwha Vision
Hanwha QND-7022R Wisenet Q 4MP IR Dome IP Camera with Built-In Microphone, 3.6mm Fixed Lens
Product images for Hanwha QND-7022R Q Series 4MP IR IP Dome Camera, 3.6mm Fixed Lens, Built-In Microphone, Plastic, White. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Crisp 4MP imaging for actionable video: captures finer detail for license plates, faces and entrances to improve incident review and evidence quality.
  • Reliable low-light performance with 20m IR: maintains clear 24/7 surveillance coverage in poorly lit indoor areas.
  • Simple, cost-effective installation with PoE and compact conduit/gang box mounts: reduces wiring time and infrastructure costs.
  • Built-in microphone and on-board microSD recording (up to 128GB): capture audio context and local backup for continuous monitoring.
  • Intelligent analytics reduce false alarms: defocus, motion, directional and tamper detection help prioritize events and speed response.
  • Durable, impact-resistant dome (IK08) and NDAA compliant: secure, dependable indoor deployment for commercial and institutional sites.

Quick Specifications

Product Model
QND-7022R
Brand Name
Hanwha Vision
Product Name
4MP Network IR Dome Camera
Product Type
Dome Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for reliable indoor surveillance, the Hanwha Vision QND-7022R Q Series dome camera delivers high-resolution video and practical installation features to protect commercial spaces, retail floors and office entryways. This 4MP IP dome camera uses a 3.6mm fixed lens and H.265 compression to provide detailed 1440p imagery while minimizing bandwidth and storage costs. Night-time monitoring stays effective thanks to infrared illumination rated to about 20 meters, and a built-in microphone adds audio context for investigations and situational awareness.

Installation teams benefit from PoE power and compact conduit or gang box mounting options that speed deployment and lower cabling complexity. Smart features like defocus detection, motion and directional analytics, tamper alerts and WiseStream II support help reduce false positives and deliver prioritized events to your VMS or NVR. The camera’s IK08 impact resistance and NDAA compliance make it suitable for enterprise, healthcare and education environments that require durable, compliant security hardware.

For straightforward, high-quality indoor monitoring where image clarity, low-light performance and intelligent detection matter, the Hanwha Vision QND-7022R is an efficient choice—add it to your surveillance system or contact us for site-appropriate configuration.

Features

  • Crisp 4MP imaging for actionable video: captures finer detail for license plates, faces and entrances to improve incident review and evidence quality.
  • Reliable low-light performance with 20m IR: maintains clear 24/7 surveillance coverage in poorly lit indoor areas.
  • Simple, cost-effective installation with PoE and compact conduit/gang box mounts: reduces wiring time and infrastructure costs.
  • Built-in microphone and on-board microSD recording (up to 128GB): capture audio context and local backup for continuous monitoring.
  • Intelligent analytics reduce false alarms: defocus, motion, directional and tamper detection help prioritize events and speed response.
  • Durable, impact-resistant dome (IK08) and NDAA compliant: secure, dependable indoor deployment for commercial and institutional sites.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 4MP Network IR Dome Camera
Product Type Dome Camera
Product Model QND-7022R
Product Series Q
Manufacturer Part Number QND-7022R
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 4mm
Connectivity Technology Wired
Field of View (Vertical) 41.2°
Field of View (Horizontal) 78.2°
Effective Camera Resolution 4MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 65.62 ft
Certifications
NDAA Compliant Yes
Display & Graphics
Maximum Video Resolution 2560 x 1440
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature 14°F (-10°C)
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.6mm
Lens Included Yes
Maximum Focal Length 4mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 8.99oz
Durability Impact Resistant
Form Factor Dome
Power Description
Input Voltage 12V DC
Product Information
Diameter 4.3"
Mount Type Conduit Mount, Gang Box Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Warranty
Limited Warranty 3-Year
Miscellaneous
Features 30fps at 4MP(H.265/H.264), 4MP resolution, Built-in 3.6mm fixed lens, Built-in Microphone, Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, H.265, H.264, MJPEG codec supported, Multiple streaming, Hallway view, WiseStream II, IR viewable length 20m,, LDC support (Lens Distortion Correction), Micro SD (128GB) memory slot, PoE/12V DC
Indoor/Outdoor Indoor
Country of Origin VN
Impact Protection Rating IK08
