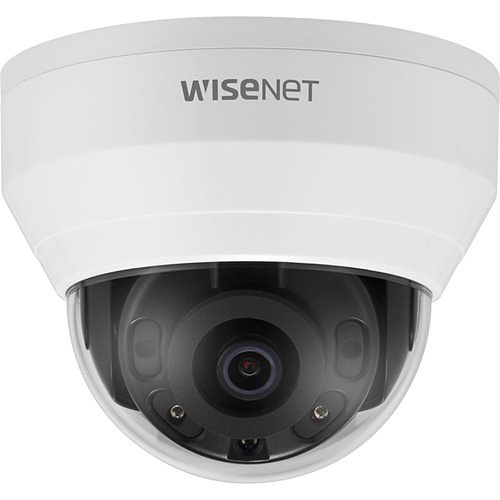

Hanwha QND-8020R Q-Series 5MP IR Dome Camera, 4mm Fixed Lens, White

SKU: QND-8020R Hanwha Vision
Wisenet QND-8020R 5 Megapixel Network Camera - Dome
Product images for Hanwha QND-8020R Q-Series 5MP IR Dome Camera, 4mm Fixed Lens, White. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • High-resolution identification: 5MP imaging delivers crisp, usable detail for license plate, face and asset identification, improving incident resolution and evidence quality.
  • Reliable day/night monitoring: Built-in IR (up to 20m) plus 120dB WDR ensures clear surveillance in low light and high-contrast scenes common in retail and office environments.
  • Simplified installation and low TCO: PoE power and H.265 compression reduce cabling and network bandwidth costs while supporting long-term, continuous monitoring.
  • Intelligent situational awareness: Onboard analytics (motion, enter/exit, directional, tamper, defocus) cut false alarms and surface relevant security events faster.
  • Flexible storage and integration: microSD local recording, analog video out for installers, NDAA compliance and compatibility with standard network video systems for easy deployment.

Quick Specifications

Product Model
QND-8020R
Brand Name
Hanwha Vision
Product Name
5 MP Network IR Dome Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

Explore the details

Product information

QND-8020R

Overview

Secure critical indoor spaces with the Hanwha Vision QND-8020R, a 5MP IR dome camera engineered for dependable surveillance and monitoring in retail, banking and corporate settings. This Q-Series dome camera pairs high-resolution 5MP capture with a 4mm fixed lens to deliver a wide 105.9° diagonal field of view that captures actionable detail across aisles, lobbies and workspaces. Built-in infrared illumination (effective to ~20m/65 ft) and 120dB WDR handle challenging light conditions—ensuring readable footage day or night. PoE support and H.265 video compression simplify installation and reduce bandwidth and storage costs for multi-camera systems. Onboard intelligent video analytics (motion, enter/exit, tamper, defocus and virtual line) help security teams prioritize real incidents and reduce false alerts. NDAA-compliant and backed by a 3-year limited warranty, the QND-8020R integrates easily with network VMS platforms and offers microSD local recording for redundancy. Choose the Hanwha Vision QND-8020R for scalable, cost-effective security and proactive monitoring—ideal for upgrading retail, office or branch security systems.

Features

  • High-resolution identification: 5MP imaging delivers crisp, usable detail for license plate, face and asset identification, improving incident resolution and evidence quality.
  • Reliable day/night monitoring: Built-in IR (up to 20m) plus 120dB WDR ensures clear surveillance in low light and high-contrast scenes common in retail and office environments.
  • Simplified installation and low TCO: PoE power and H.265 compression reduce cabling and network bandwidth costs while supporting long-term, continuous monitoring.
  • Intelligent situational awareness: Onboard analytics (motion, enter/exit, directional, tamper, defocus) cut false alarms and surface relevant security events faster.
  • Flexible storage and integration: microSD local recording, analog video out for installers, NDAA compliance and compatibility with standard network video systems for easy deployment.
44 of 44 specifications
Technical specifications for Hanwha QND-8020R Q-Series 5MP IR Dome Camera, 4mm Fixed Lens, White
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 5 MP Network IR Dome Camera
Product Type Network Camera
Product Model QND-8020R
Product Series Q
Manufacturer Part Number QND-8020R
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View H : 79.8°/ V : 58.1°/ D : 105.9°
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 4mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 65.62 ft
Certifications
NDAA Compliant Yes
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature 14°F (-10°C)
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4mm
Lens Included Yes
Maximum Focal Length 4mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Height 3.4"
Weight 12.70 oz
Form Factor Dome
Product Information
Diameter 4.3"
Mount Type Box Mount, Ceiling Mount, Corner Mount, Gang Box Mount, Pendant Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Auto Gain Control, Automatic White Balance, Built-in IR LED, Built-in Mechanical ICR, Day/Night, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Indoor/Outdoor Indoor
