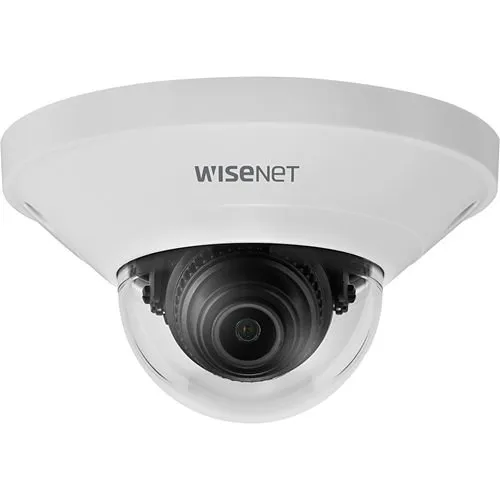

Hanwha QND-8021 Q-Series 5MP Dome Camera, 4mm Fixed Lens, White

SKU: QND-8021 Hanwha Vision
Wisenet QND-8021 5 Megapixel Network Camera - Dome
Product images for Hanwha QND-8021 Q-Series 5MP Dome Camera, 4mm Fixed Lens, White. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Super-compact dome blends into retail and office environments for discreet surveillance without disrupting store aesthetics.
  • 5MP resolution with 4mm fixed lens captures detailed, 30fps video for clear identification and real-time monitoring.
  • WiseStream II and H.265 compression lower bandwidth and storage costs while maintaining image quality for long-term recording.
  • Built-in people counting and HDMI public-view output provide actionable retail analytics and easy public display integration.
  • PoE power, microSD backup and tamper/defocus detection simplify installation and increase system reliability.

Quick Specifications

Product Model
QND-8021
Brand Name
Hanwha Vision
Product Name
5 MP Network Super-Compact Dome Camera with 4mm Lens
Product Type
Network Camera
View Full Technical Specifications

Explore the details

Product information

QND-8021

Overview

Designed for discreet indoor security and retail monitoring, the Hanwha Vision QND-8021 Q-Series 5MP dome camera delivers high-resolution video and practical analytics in a compact housing. This network dome camera captures crisp 5MP footage at 30fps using a 4mm fixed lens, making it ideal for store aisles, lobbies and office spaces where image detail and low visual impact matter. Hanwha’s WiseStream II with H.265/H.264 support optimizes bandwidth and reduces storage requirements without sacrificing image quality, while 120dB True WDR ensures reliable performance in challenging lighting.

The QND-8021 also includes people counting for retail business intelligence, HDMI output for public-view monitor applications, PoE for simplified network power, and microSD local recording for redundancy. Built-in defocus and tamper detection help maintain continuous monitoring and reduce false alarms. NDAA-compliant and impact-resistant (IK08), this dome camera balances security, analytics and easy deployment for small to medium commercial installations. Upgrade your surveillance setup with a compact, intelligence-ready camera—perfect for retail, hospitality and corporate environments. Contact us to specify or order your deployment-ready camera.

Features

  • Super-compact dome blends into retail and office environments for discreet surveillance without disrupting store aesthetics.
  • 5MP resolution with 4mm fixed lens captures detailed, 30fps video for clear identification and real-time monitoring.
  • WiseStream II and H.265 compression lower bandwidth and storage costs while maintaining image quality for long-term recording.
  • Built-in people counting and HDMI public-view output provide actionable retail analytics and easy public display integration.
  • PoE power, microSD backup and tamper/defocus detection simplify installation and increase system reliability.
37 of 37 specifications
Technical specifications for Hanwha QND-8021 Q-Series 5MP Dome Camera, 4mm Fixed Lens, White
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 5 MP Network Super-Compact Dome Camera with 4mm Lens
Product Type Network Camera
Product Model QND-8021
Product Series Q
Manufacturer Part Number QND-8021
Technical Information
Lens Type Fixed
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Maximum Frame Rate 30fps
Minimum Focal Length 4mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP42
Display & Graphics
Maximum Video Resolution 1600 x 1200
Interfaces/Ports
HDMI Yes
Network (RJ-45) Yes
Lens
Focal Length 4mm
Maximum Focal Length 4mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Height 2.2"
Weight 5.82oz
Durability Impact Resistant
Form Factor Dome
Product Information
Diameter 3.9"
Mount Type Corner Mount, Pendant Mount, Pole Mount, Wall Mount
Storage
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Indoor/Outdoor Indoor
Country of Origin VN
Impact Protection Rating IK08
