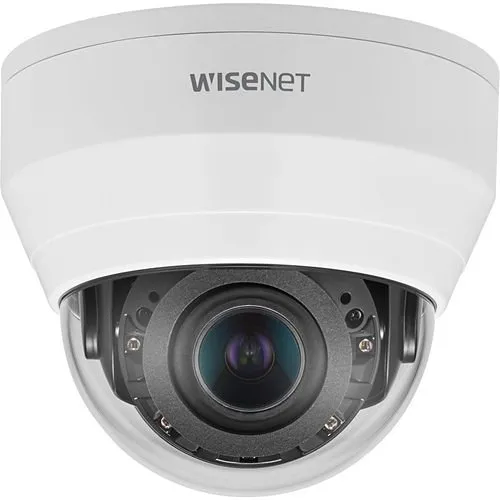

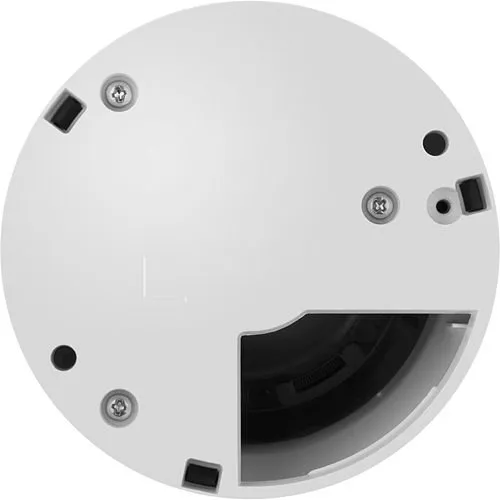

Hanwha QND-8080R Q-Series 5MP IR Dome Camera with 3.2-10mm Motorized Varifocal Lens, White

SKU: QND-8080R Hanwha Vision
Wisenet QND-8080R 5 Megapixel Network Camera - Dome
Product images for Hanwha QND-8080R Q-Series 5MP IR Dome Camera with 3.2-10mm Motorized Varifocal Lens, White. 3 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Capture actionable detail with 5MP resolution for clearer identification and evidence in retail, banking, and office environments
  • Flexible coverage with a 3.2–10mm motorized varifocal lens so you can adjust field-of-view remotely and reduce blind spots
  • Reliable night monitoring with built-in IR up to 20m (65 ft) to maintain surveillance after dark
  • Improved image clarity in challenging scenes with 120dB WDR and intelligent analytics (tamper, motion, defocus) for proactive security
  • Simplified deployment and lower operating cost using PoE power, H.265/WiseStream II compression, and local SD storage for efficient bandwidth and retention

Quick Specifications

Brand Name
Hanwha Vision
Manufacturer
Hanwha Group
Product Name
5 MP Network IR Dome Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for dependable day/night monitoring, the Hanwha Vision QND-8080R Q-Series 5MP IR dome camera delivers the image quality and intelligent features professionals need to secure small- to medium-sized sites. This network camera produces 5MP video for improved identification, pairs a 3.2–10mm motorized varifocal lens for flexible coverage, and uses built-in IR illumination (up to ~20m/65 ft) to capture critical detail after dark. Wide Dynamic Range (120dB) and WiseStream II/H.265 compression enhance image clarity in challenging lighting while minimizing bandwidth and storage costs. PoE support simplifies installation and power delivery, and onboard microSD recording (up to 128GB) provides resilient edge storage. Integrated analytics such as tamper, motion and defocus detection provide proactive alerts to help reduce false alarms and speed incident response. Ideal for retail, banking, corporate offices and property monitoring, the QND-8080R balances performance, ease of deployment, and total cost of ownership. Add a reliable network dome camera to your security and surveillance system today — contact your integrator or order now to upgrade protection across your facility.

Features

  • Capture actionable detail with 5MP resolution for clearer identification and evidence in retail, banking, and office environments
  • Flexible coverage with a 3.2–10mm motorized varifocal lens so you can adjust field-of-view remotely and reduce blind spots
  • Reliable night monitoring with built-in IR up to 20m (65 ft) to maintain surveillance after dark
  • Improved image clarity in challenging scenes with 120dB WDR and intelligent analytics (tamper, motion, defocus) for proactive security
  • Simplified deployment and lower operating cost using PoE power, H.265/WiseStream II compression, and local SD storage for efficient bandwidth and retention
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 5 MP Network IR Dome Camera
Product Type Network Camera
Product Model QND-8080R
Product Series Q
Manufacturer Part Number QND-8080R
Technical Information
Lens Type Fixed
Night Vision Yes
Optical Zoom 3.1x
Field of View H : 100.3°(Wide)~31.2°(Tele) / V : 72.3°(Wide)~23.5°(Tele) / H : 133.1°(Wide)~38.8°(Tele)
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 3.2mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 65.62 ft
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 122°F (50°C)
Minimum Operating Temperature 14°F (-10°C)
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.2-10mm
Lens Included Yes
Minimum Aperture f/2.9
Maximum Focal Length 10mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces QND-7080R
Physical Characteristics
Color White
Weight 15.17oz
Form Factor Dome
Product Information
Diameter 4.7"
Mount Type Box Mount, Ceiling Mount, Corner Mount, Gang Box Mount, Pendant Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Auto Gain Control, Automatic White Balance, Built-in IR LED, Day/Night, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Indoor/Outdoor Indoor
Country of Origin VN
