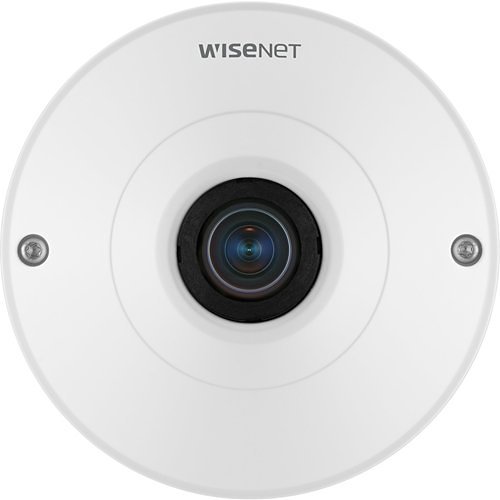

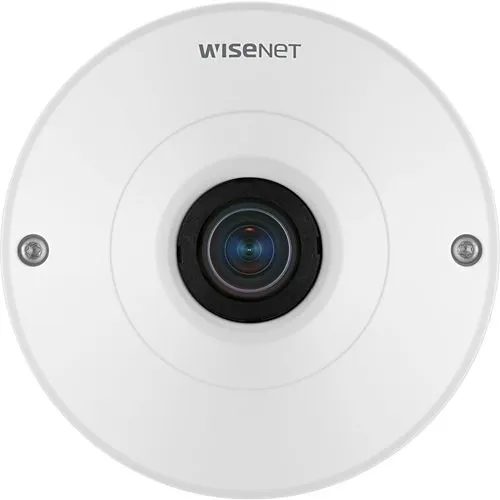

Hanwha QNF-8010 Q-Series 6MP Fisheye Camera, 1.14mm Fixed Lens, White
Image of 2
Key Features
- Full-room 360° coverage with a single 6MP fisheye reduces blind spots and lowers camera count
- Onboard dewarping to single/double/quad views for simpler monitoring and VMS integration
- H.265 plus WiseStream II compression and 120dB WDR for clear images with reduced bandwidth and storage
- Built-in analytics (heatmap, people counting) provide actionable business intelligence for retail and facilities
- Easy installation with lens rotation, analog video output, SD local storage, NDAA compliance and 3-year warranty
Quick Specifications
- Product Model
- QNF-8010
- Brand Name
- Hanwha Vision
- Product Name
- 6MP H.265 Network Fisheye Camera
- Product Type
- Network Camera
Frequently Bought Together
Hanwha QNF-8010 Q-Series 6MP Fisheye Camera, 1.14mm Fixed Lens, White
$413.10
8 items selected
Total: $1,783.02
Explore the details
Product information
QNF-8010
Overview
Deliver complete room coverage with a single device: the Hanwha Vision QNF-8010 Q-Series 6MP fisheye panoramic camera. Engineered for retail, banking and office surveillance, this indoor panoramic camera pairs a 6MP sensor with a 1.14mm fixed lens to capture up to a 187° field of view—eliminating blind spots and reducing the number of cameras and installation costs. H.265 compression with WiseStream II and 120dB WDR deliver clear, usable footage in variable lighting while lowering bandwidth and storage demands. Onboard dewarping to single, double or quad views and analog video output simplify installation and integration with existing VMS and displays. Embedded analytics—heatmap and people counting—turn video into operational insights for loss prevention and customer flow optimization. With local SD recording, NDAA compliance, remote management and a 3-year limited warranty, the QNF-8010 balances enterprise features with an affordable Q-Series value. Ideal for 24/7 security monitoring, store surveillance, and facility management—contact sales to specify coverage or add this camera to your next security project.
Features
- Full-room 360° coverage with a single 6MP fisheye reduces blind spots and lowers camera count
- Onboard dewarping to single/double/quad views for simpler monitoring and VMS integration
- H.265 plus WiseStream II compression and 120dB WDR for clear images with reduced bandwidth and storage
- Built-in analytics (heatmap, people counting) provide actionable business intelligence for retail and facilities
- Easy installation with lens rotation, analog video output, SD local storage, NDAA compliance and 3-year warranty
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | 6MP H.265 Network Fisheye Camera |
| Product Type | Network Camera |
| Product Model | QNF-8010 |
| Product Series | Q |
| Manufacturer Part Number | QNF-8010 |
| Technical Information | |
| Lens Type | Fixed |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2.5 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 1.14mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 187° |
| Field of View (Horizontal) | 187° |
| Effective Camera Resolution | 6MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP42 |
| Display & Graphics | |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | 14°F (-10°C) |
| Exposure | |
| Minimum Illumination | 0.2 lux |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 1.14mm |
| Lens Included | Yes |
| Maximum Focal Length | 1.14mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Width | 3.9" |
| Height | 1.93" |
| Weight | 11.29oz |
| Form Factor | Fisheye |
| Product Information | |
| Diameter | 3.9" |
| Mount Type | Ceiling Mount, Flush mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Alarm Triggering, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
| Indoor/Outdoor | Indoor |
| Country of Origin | VN |
