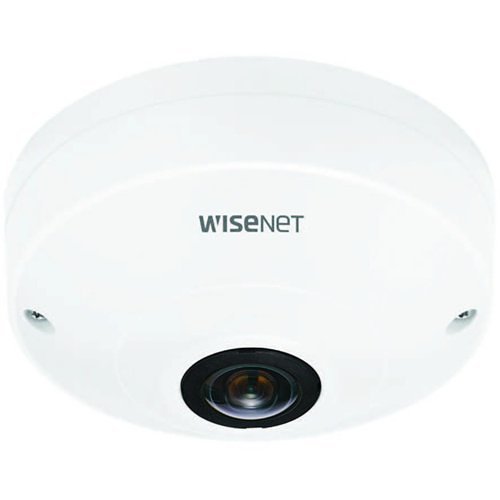

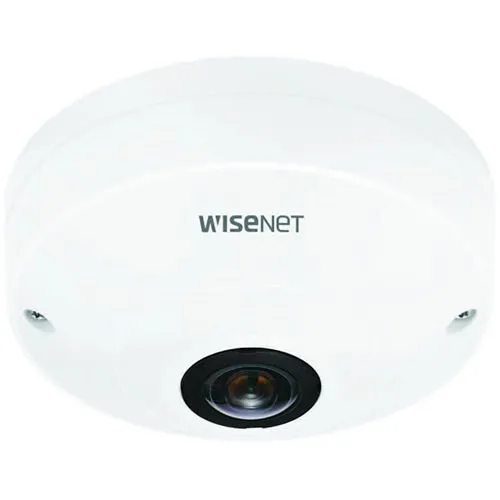

Hanwha QNF-9010 Q-Series 12MP Fisheye Camera, 1.08mm Fixed Lens, White
Key Features
- Complete 360° coverage from a single ceiling-mounted camera, eliminating blind spots and reducing the number of cameras required for indoor surveillance.
- High-detail 12MP sensor with 1.08mm fisheye lens and onboard dewarping (single/double/quad) for clear panoramic and multi-view monitoring.
- Built-in analytics (people counting, heatmap) provide actionable intelligence for retail, banking and facility monitoring to improve operations and security.
- Efficient storage and streaming with WiseStream II and H.265 compression plus SD card backup for lower bandwidth and reliable local recording.
- Easy installation and adjustment with lens rotation and analog output; NDAA-compliant design suitable for enterprise deployments.
Quick Specifications
- Brand Name
- Hanwha Vision
- Manufacturer
- Hanwha Group
- Product Name
- Q Series 12 MP Sensor 360° Indoor Fisheye Camera
- Product Type
- Network Camera
Frequently Bought Together
Hanwha QNF-9010 Q-Series 12MP Fisheye Camera, 1.08mm Fixed Lens, White
$581.40
10 items selected
Total: $2,318.52
Product Information Tabs
Overview
Deliver full-room situational awareness with the Hanwha Vision QNF-9010 Q-Series 12MP fisheye panoramic camera. Designed for indoor security and monitoring, this network camera captures ultra-wide 360° views with a 12MP sensor and 1.08mm fisheye lens, then performs onboard dewarping to produce single, double or quad panorama outputs for intuitive surveillance. The camera pairs high-resolution imaging and 120dB WDR with WiseStream II and H.265 compression to reduce bandwidth while preserving critical detail—ideal for retail floors, bank branches, and corporate offices.
Advanced analytics including people counting and heatmap visualization turn video into operational insights that help optimize staffing and detect incidents faster. Installation is simplified by lens rotation and analog output for alignment, and local SD card storage provides reliable fallback recording. NDAA compliance and flexible ceiling or pendant mounting make the QNF-9010 a practical choice for large-scale and mission-critical deployments. Enhance your security and monitoring footprint with a single panoramic camera—contact sales or add to cart to deploy 360° surveillance with analytics today.
Features
- Complete 360° coverage from a single ceiling-mounted camera, eliminating blind spots and reducing the number of cameras required for indoor surveillance.
- High-detail 12MP sensor with 1.08mm fisheye lens and onboard dewarping (single/double/quad) for clear panoramic and multi-view monitoring.
- Built-in analytics (people counting, heatmap) provide actionable intelligence for retail, banking and facility monitoring to improve operations and security.
- Efficient storage and streaming with WiseStream II and H.265 compression plus SD card backup for lower bandwidth and reliable local recording.
- Easy installation and adjustment with lens rotation and analog output; NDAA-compliant design suitable for enterprise deployments.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | Q Series 12 MP Sensor 360° Indoor Fisheye Camera |
| Product Type | Network Camera |
| Product Model | QNF-9010 |
| Product Series | Q |
| Manufacturer Part Number | QNF-9010 |
| Technical Information | |
| Lens Type | Fixed |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2.2 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 1.8mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 187° |
| Field of View (Horizontal) | 187° |
| Effective Camera Resolution | 12MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP42 |
| Display & Graphics | |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 14°F (-10°C) |
| Exposure | |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 1.08mm |
| Lens Included | Yes |
| Maximum Focal Length | 1.08mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 13.05oz |
| Form Factor | Fisheye |
| Product Information | |
| Diameter | 3.9" |
| Mount Type | Ceiling Mount, Flush Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | Alarm Triggering, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range |
| Indoor/Outdoor | Indoor |
| Country of Origin | VN |
