Hanwha QNO-6022R1 Q-Series 2MP WDR IR Bullet IP Camera, 4mm Fixed Lens, Black

SKU: QNO-6022R1 Hanwha Vision
Hanwha QNO-6022R1 Wisenet Q 2MP WDR IR Bullet IP Camera, 4mm Fixed Lens

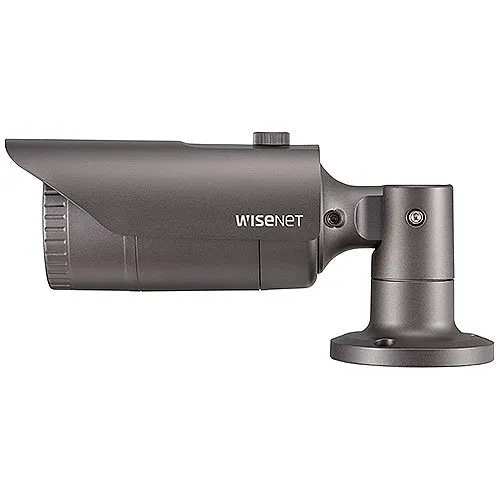

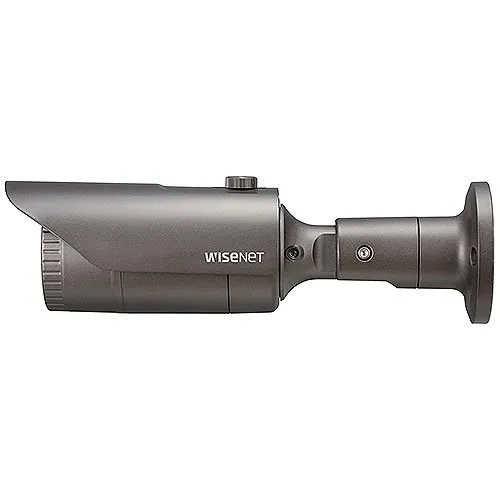

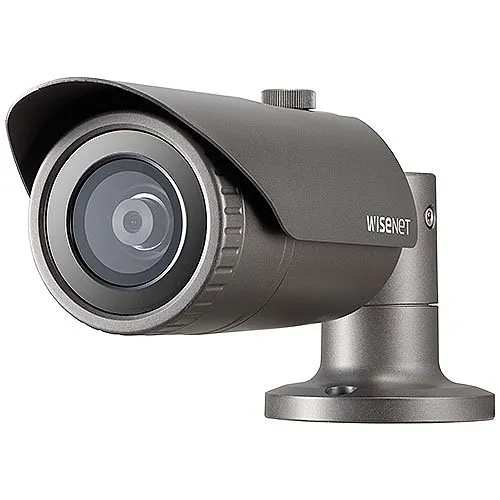

Product images for Hanwha QNO-6022R1 Q-Series 2MP WDR IR Bullet IP Camera, 4mm Fixed Lens, Black. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Reliable 24/7 surveillance: 2MP Full HD imaging and built-in IR let you monitor premises day or night with clear detail up to 25 m (82 ft).
  • Improved image clarity in challenging scenes: 120dB WDR and f/1.6 aperture capture usable detail in high-contrast and low-light environments for fewer missed events.
  • Simplified installation and integration: PoE and RJ-45 network connectivity reduce cabling and allow remote management for large-scale monitoring deployments.
  • Durable, field-ready design: IP66 weatherproofing and IK10 impact resistance protect the camera in outdoor and industrial security applications.
  • Efficient storage and bandwidth: H.265/H.264 compression, multiple streams and microSD support lower storage costs while maintaining critical evidence-quality video.

Quick Specifications

Product Model
QNO-6022R1
Brand Name
Hanwha Vision
Product Name
2 MP Network IR Bullet Camera with 4mm Lens
Product Type
Bullet Camera
View Full Technical Specifications

Product Information Tabs

Overview

For dependable perimeter and site monitoring, the Hanwha Vision QNO-6022R1 Q-Series 2MP WDR IR Bullet IP Camera delivers clear, actionable video around the clock. This bullet camera combines a 2MP Full HD sensor with a 4mm fixed lens and powerful IR illumination to capture faces and license plates at medium range, while 120dB WDR ensures usable images in backlit or high-contrast scenes. Ideal for security and surveillance of parking lots, building exteriors, retail storefronts, and industrial sites, the QNO-6022R1 supports H.265/H.264 compression, PoE/12V DC power and on-board microSD storage (up to 128GB) for flexible recording and reduced bandwidth. Built to withstand harsh environments, its IP66 and IK10 ratings plus NDAA compliance make it a practical choice for public-sector and enterprise deployments. Easily integrated into networked video systems and remote monitoring platforms, this Hanwha Vision bullet IP camera streamlines installation and ongoing management. Enhance your security infrastructure with reliable, high-contrast day/night coverage—contact sales to specify and deploy.

Features

  • Reliable 24/7 surveillance: 2MP Full HD imaging and built-in IR let you monitor premises day or night with clear detail up to 25 m (82 ft).
  • Improved image clarity in challenging scenes: 120dB WDR and f/1.6 aperture capture usable detail in high-contrast and low-light environments for fewer missed events.
  • Simplified installation and integration: PoE and RJ-45 network connectivity reduce cabling and allow remote management for large-scale monitoring deployments.
  • Durable, field-ready design: IP66 weatherproofing and IK10 impact resistance protect the camera in outdoor and industrial security applications.
  • Efficient storage and bandwidth: H.265/H.264 compression, multiple streams and microSD support lower storage costs while maintaining critical evidence-quality video.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 2 MP Network IR Bullet Camera with 4mm Lens
Product Type Bullet Camera
Product Model QNO-6022R1
Product Series Q
Manufacturer Part Number QNO-6022R1
Technical Information
Lens Type Fixed Focus
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 4mm
Connectivity Technology Wired
Field of View (Vertical) 46.4°
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 82.02 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 90% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature -22°F
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12,000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4mm
Lens Included Yes
Maximum Focal Length 4mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces QNO-6032R
Physical Characteristics
Color Gray
Weight 1.54 lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Bullet
Power Description
Input Voltage 12V DC
Product Information
Diameter 2.76"
Mount Type Box Mount, Pole Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Miscellaneous
Features ,, 2 MP (1920 x 1080) resolution, 30fps at all resolutions (H.265/H.264), Analog video out for easy installation, Built-in 4mm fixed lens, Day and Night (ICR), WDR (120dB), Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, H.265, H.264, MJPEG codec supported, Multiple streaming, Hallway view support, WiseStream II, IR viewable length 25m,, Micro SD (128GB) memory slot, PoE/12V DC
Impact Protection Rating IK10
