Hanwha QNO-8010R Q-Series 5MP IR Bullet Camera, 2.8mm Fixed Lens, Dark Gray

SKU: QNO-8010R Hanwha Vision
Hanwha QNO-8010R Wisenet Q-Series 5MP IR Bullet Camera, 2.8mm Fixed Lens

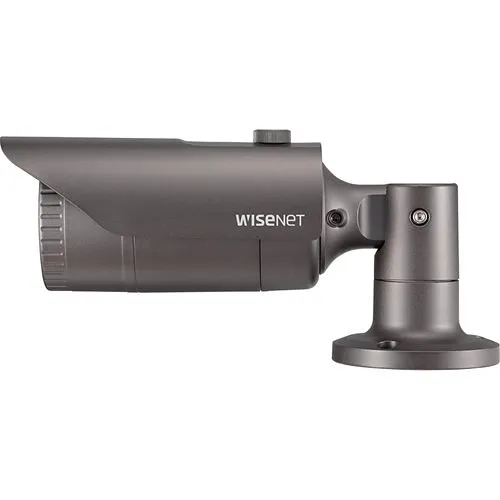

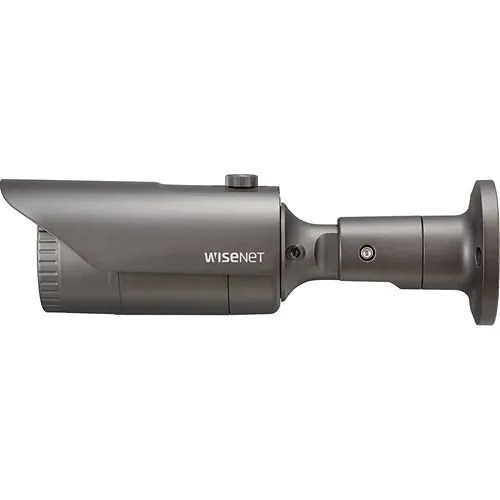

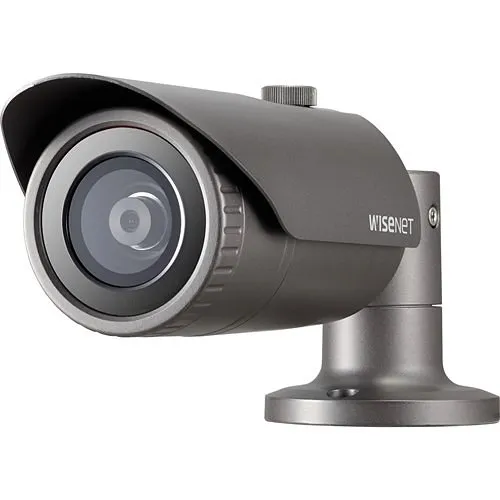

Product images for Hanwha QNO-8010R Q-Series 5MP IR Bullet Camera, 2.8mm Fixed Lens, Dark Gray. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Sharp 5MP imaging for clear identification at entrances and perimeters, reducing false alarms and easing post-event review.
  • Bandwidth and storage savings with WiseStream II and H.265/H.264 support—lowers operating costs for large surveillance deployments.
  • Ready for outdoor security: IP66 weatherproofing and IK10 vandal resistance ensure continuous operation in harsh conditions.
  • Wide 2.8mm fixed lens and 20m IR provide broad daytime coverage and reliable night monitoring for parking lots and building exteriors.
  • Flexible installation and smarter monitoring: PoE/12VDC power, analog video out, onboard microSD (up to 128GB) and built-in analytics for proactive security.

Quick Specifications

Product Model
QNO-8010R
Brand Name
Hanwha Vision
Product Name
5 MP Network IR Bullet Camera with 2.8mm Lens
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Optimize outdoor surveillance with the Hanwha Vision QNO-8010R, a dependable 5MP IR bullet camera engineered for commercial security and perimeter monitoring. This Hanwha Vision network camera pairs crisp 5-megapixel resolution with a wide 2.8mm fixed lens to capture expansive scenes with the detail required for identification and evidence. Built-in infrared and up to 20m night vision plus 120dB True WDR preserve clear images in low light and high-contrast environments such as loading docks, entrances and parking areas.

Designed for scalable deployments, the QNO-8010R leverages WiseStream II alongside H.265/H.264 codecs to cut bandwidth and storage demands—ideal for multi-camera systems. Robust IP66 weatherproofing and IK10 impact resistance protect hardware outdoors, while PoE and 12VDC options simplify installation. Intelligent video analytics (motion, virtual line, defocus, tampering) and local microSD storage (up to 128GB) enable faster incident detection and reliable onsite recording.

Choose the QNO-8010R for cost-effective, high-performance security monitoring across retail, campus, and industrial sites. Add this Hanwha Vision bullet camera to your next surveillance project to improve detection and reduce total cost of ownership.

Features

  • Sharp 5MP imaging for clear identification at entrances and perimeters, reducing false alarms and easing post-event review.
  • Bandwidth and storage savings with WiseStream II and H.265/H.264 support—lowers operating costs for large surveillance deployments.
  • Ready for outdoor security: IP66 weatherproofing and IK10 vandal resistance ensure continuous operation in harsh conditions.
  • Wide 2.8mm fixed lens and 20m IR provide broad daytime coverage and reliable night monitoring for parking lots and building exteriors.
  • Flexible installation and smarter monitoring: PoE/12VDC power, analog video out, onboard microSD (up to 128GB) and built-in analytics for proactive security.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 5 MP Network IR Bullet Camera with 2.8mm Lens
Product Type Network Camera
Product Model QNO-8010R
Product Series Q
Manufacturer Part Number QNO-8010R
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View H : 104.7°/ V : 76.5°/ D : 136.0°
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/2
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 2.8mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 65.62 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -22°F (-30°C)
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Lens Included Yes
Maximum Focal Length 2.8mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces QNO-7010R
Physical Characteristics
Color Gray
Width 2.8"
Height 9.7"
Weight 1.50 lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Bullet
Power Description
Input Voltage 12V
Product Information
Length 9.7"
Diameter 2.8"
Mount Type Box Mount, Pole Mount
Storage
Storage Type Memory Card
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
