Hanwha QNO-8020R Q-Series 5MP IR Bullet Camera, 4mm Fixed Lens, Dark Gray

SKU: QNO-8020R Hanwha Vision
Wisenet QNO-8020R 5 Megapixel Network Camera - Bullet

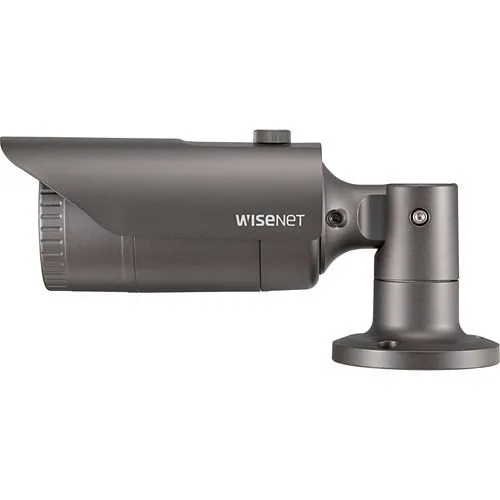

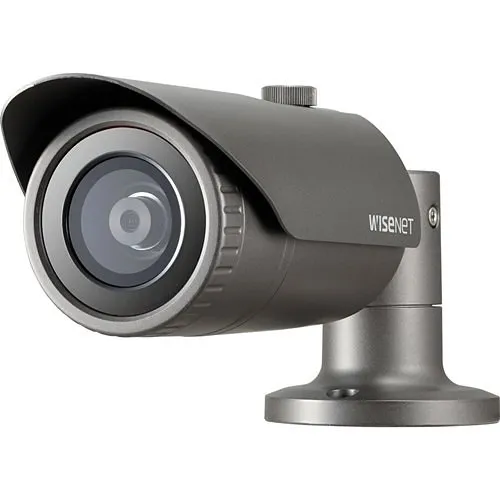

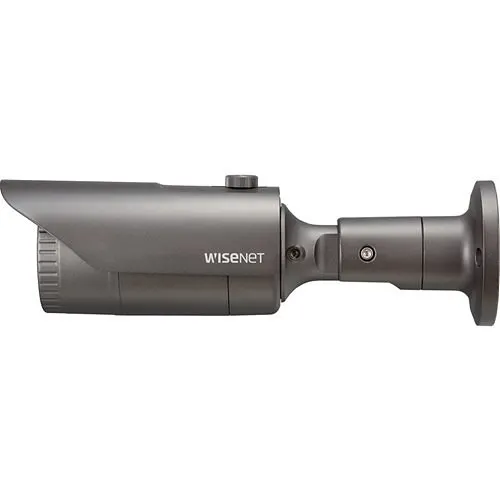

Product images for Hanwha QNO-8020R Q-Series 5MP IR Bullet Camera, 4mm Fixed Lens, Dark Gray. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Deliver crisp, actionable 5MP images for reliable identification and evidence capture in corporate and public safety deployments
  • Built-in 4mm lens with 20m IR and 79.8° horizontal view for wide, low-light perimeter and parking-lot coverage
  • H.265 plus WiseStream II compression to reduce bandwidth and storage costs while preserving image quality for long-term surveillance
  • Rugged outdoor design (IP66, IK10) and wide operating temperature for dependable monitoring in harsh environments
  • PoE-enabled and SD card edge storage support for simplified installation, continuous recording, and resilient local backup
  • Intelligent analytics (motion, virtual line, tamper, defocus) to cut false alerts and enable proactive security workflows

Quick Specifications

Product Model
QNO-8020R
Brand Name
Hanwha Vision
Product Name
5 MP Network IR Bullet Camera with 4mm Lens
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Keep your site secure with the Hanwha Vision QNO-8020R, a 5MP IR bullet camera engineered for dependable outdoor surveillance and monitoring. Designed for security teams and integrators, this network camera delivers high-resolution images with a 4mm fixed lens and up to 20 meters of infrared illumination, making it ideal for perimeter, parking, storefront, and facility monitoring. Advanced WiseStream II and H.265 compression minimize bandwidth and storage demands without sacrificing critical detail, while 120dB True WDR ensures clear images in challenging lighting conditions. Built to last, the QNO-8020R meets IP66 and IK10 ratings for dust, water and impact resistance and supports PoE for streamlined installations. Onboard microSD recording and built-in analytics (motion, virtual line, tamper, defocus) provide resilient edge recording and smarter event detection to reduce nuisance alarms. Choose the Hanwha Vision Q-Series bullet camera when you need rugged, cost-efficient surveillance that scales across sites—contact sales or order today to upgrade your security monitoring.

Features

  • Deliver crisp, actionable 5MP images for reliable identification and evidence capture in corporate and public safety deployments
  • Built-in 4mm lens with 20m IR and 79.8° horizontal view for wide, low-light perimeter and parking-lot coverage
  • H.265 plus WiseStream II compression to reduce bandwidth and storage costs while preserving image quality for long-term surveillance
  • Rugged outdoor design (IP66, IK10) and wide operating temperature for dependable monitoring in harsh environments
  • PoE-enabled and SD card edge storage support for simplified installation, continuous recording, and resilient local backup
  • Intelligent analytics (motion, virtual line, tamper, defocus) to cut false alerts and enable proactive security workflows
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 5 MP Network IR Bullet Camera with 4mm Lens
Product Type Network Camera
Product Model QNO-8020R
Product Series Q
Manufacturer Part Number QNO-8020R
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View H : 79.8°/ V : 58.1°/ D : 105.9°
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 4mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 82.02 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -22°F (-30°C)
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4mm
Lens Included Yes
Maximum Focal Length 4mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces QNO-7020R, QNO-8030R
Physical Characteristics
Color Gray
Width 2.8"
Height 9.7"
Weight 1.50 lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Bullet
Product Information
Length 9.7"
Diameter 2.8"
Mount Type Box Mount, Pole Mount
Storage
Storage Type Memory Card
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Alarm Triggering, Automatic White Balance, Back Light Compensation (BLC), Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
