Warehouse: United States

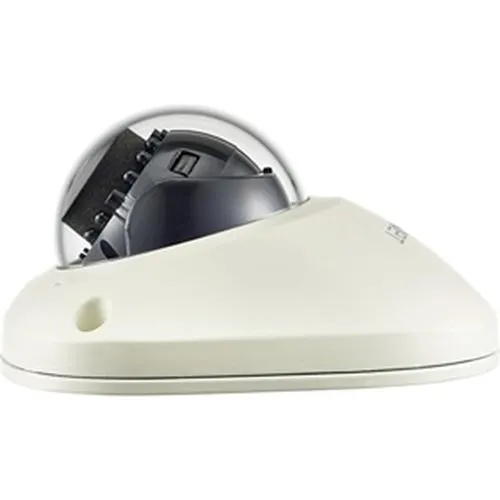

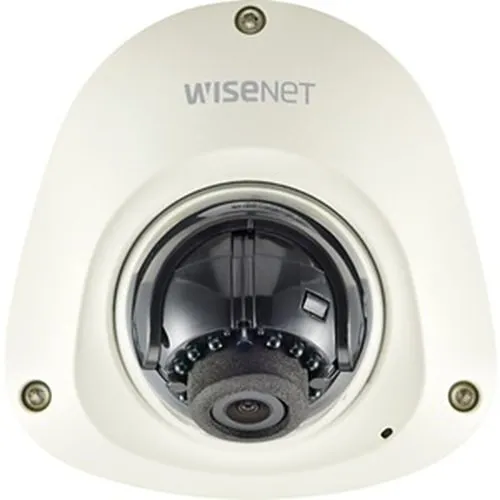

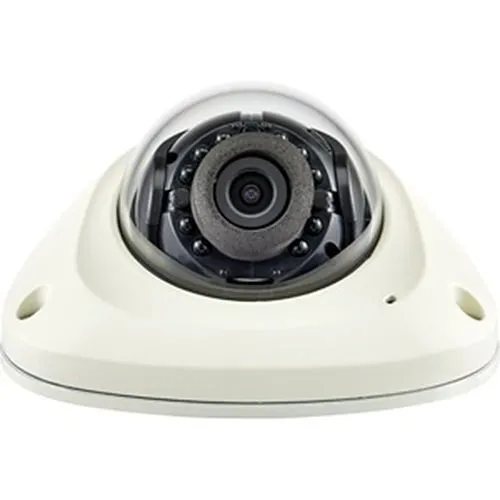

Hanwha QNV-6024RM Q-Series 2MP IR Mobile Vandal Flat Camera, 3.6mm Fixed Lens, Ivory

SKU: QNV-6024RM Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Wisenet QNV-6024RM 2 Megapixel Network Camera - Dome
Product images for Hanwha QNV-6024RM Q-Series 2MP IR Mobile Vandal Flat Camera, 3.6mm Fixed Lens, Ivory. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Transit-grade reliability: EN50155/EN50121 certification and an M12 connector deliver vibration-resistant, secure installation for buses, trains and fleet vehicles.
  • All-weather, vandal-proof protection: IP66 and IK10 ratings keep the camera operational in harsh weather and tamper-prone environments, reducing downtime and maintenance.
  • Clear day/night evidence: 2MP 1080p imaging with 3.6mm fixed lens, 120dB WDR and IR illumination (≈15 m) ensures usable footage in varied lighting for security and incident review.
  • Onboard storage & codec flexibility: Supports up to 256GB microSD and H.264/H.265/MJPEG for local recording and efficient network bandwidth use.
  • Integrated audio & intelligent features: Built-in microphone, motion/tamper detection and privacy masking improve situational awareness and simplify compliance with surveillance policies.
  • Easy system integration: Standard network interface and transit-rated hardware make deployment with existing security and monitoring systems straightforward.

Quick Specifications

Product Model
QNV-6024RM
Brand Name
Hanwha Vision
Product Name
2MP Mobile IR Flat Camera
Product Type
Network Camera
View Full Technical Specifications

Product Information Tabs

Overview

Designed for demanding transit and fleet security, the Hanwha Vision QNV-6024RM is a rugged 2MP mobile network camera built to capture reliable evidence in motion. This IP Mobile & Dashboard Camera delivers 1080p clarity with a 3.6mm fixed lens, 120dB WDR and up to 15 meters of IR illumination for clear day/night surveillance and incident monitoring. Built to EN50155 and EN50121 standards with an M12 Ethernet connector, the QNV-6024RM resists vibration and maintains a secure network connection in buses, railcars and enforcement vehicles. Its IP66 and IK10 ratings protect against weather and tampering, reducing service calls and prolonging system life. H.264/H.265 support, on-board SD storage up to 256GB and built-in microphone make it easy to capture, store and review high-quality video and audio for security, compliance and passenger safety. Whether you’re upgrading a fleet or expanding a transit surveillance system, the Hanwha QNV-6024RM offers dependable performance for mobile surveillance. Contact our sales team to discuss integration or order units for deployment on buses, rail and patrol vehicles.

Features

  • Transit-grade reliability: EN50155/EN50121 certification and an M12 connector deliver vibration-resistant, secure installation for buses, trains and fleet vehicles.
  • All-weather, vandal-proof protection: IP66 and IK10 ratings keep the camera operational in harsh weather and tamper-prone environments, reducing downtime and maintenance.
  • Clear day/night evidence: 2MP 1080p imaging with 3.6mm fixed lens, 120dB WDR and IR illumination (≈15 m) ensures usable footage in varied lighting for security and incident review.
  • Onboard storage & codec flexibility: Supports up to 256GB microSD and H.264/H.265/MJPEG for local recording and efficient network bandwidth use.
  • Integrated audio & intelligent features: Built-in microphone, motion/tamper detection and privacy masking improve situational awareness and simplify compliance with surveillance policies.
  • Easy system integration: Standard network interface and transit-rated hardware make deployment with existing security and monitoring systems straightforward.
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 2MP Mobile IR Flat Camera
Product Type Network Camera
Product Model QNV-6024RM
Product Series Q
Manufacturer Part Number QNV-6024RM
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/2
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 3.6mm
Connectivity Technology Wired
Field of View (Vertical) 49.3°
Field of View (Horizontal) 94.8°
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 49.21 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -22°F (-30°C)
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.6mm
Lens Included Yes
Maximum Focal Length 3.6mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 10.41oz
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor Dome
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Noise Reduction, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin VN
Impact Protection Rating IK10
