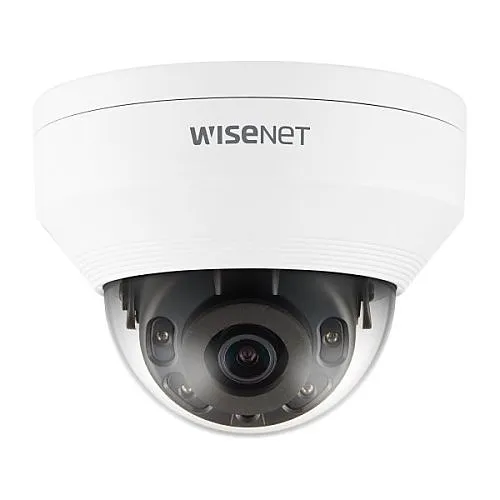

Hanwha QNV-7012R Series 4MP IR Vandal IP Dome Camera, 2.8mm Lens, White

SKU: QNV-7012R Hanwha Vision
Hanwha QNV-7012R 4MP IP IR Vandal Resistant Camera, IP66, IK10, 2.8mm Lens
Product images for Hanwha QNV-7012R Series 4MP IR Vandal IP Dome Camera, 2.8mm Lens, White. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • 24/7 clear surveillance with 4MP resolution and IR night vision up to 20 m (65 ft) so you capture critical details day or night
  • Rugged IK10 vandal resistance and IP66 weatherproofing protect equipment and reduce downtime in outdoor or high-risk installations
  • 107° wide field of view with a 2.8mm fixed lens covers more area and can reduce the number of cameras needed
  • Bandwidth- and storage-efficient H.265 with WiseStream II minimizes network load and lowers ongoing operational costs
  • Flexible installation with PoE, 12V DC support and onboard microSD slot for local backup and resilient recording
  • Intelligent analytics (motion, tamper, enter/exit, defocus detection) enable proactive monitoring and faster incident response

Quick Specifications

Product Model
QNV-7012R
Brand Name
Hanwha Vision
Product Name
4MP Network IR Vandal Resistant Camera
Product Type
Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

For reliable perimeter and asset protection, the Hanwha Vision QNV-7012R Series 4MP IR Vandal IP Dome Camera delivers high-quality surveillance that stands up to real-world conditions. As a network dome camera built for outdoor security monitoring, it captures crisp 4MP video at 30 fps through a 2.8mm fixed lens with a wide 107° field of view, reducing camera count while maintaining coverage. Advanced infrared LEDs provide clear night vision up to about 65 feet, and built-in analytics like motion and tamper detection help you spot and respond to incidents faster. The QNV-7012R combines IK10 impact resistance and IP66 ingress protection with PoE and a microSD slot for flexible, cost-effective deployment and resilient recording. WiseStream II and H.265 compression keep bandwidth and storage demands low without compromising image quality, making this camera a practical choice for enterprise and commercial surveillance projects. Add the QNV-7012R to your security system for dependable, low-maintenance monitoring of parking lots, entrances, and perimeter zones—contact your supplier to deploy it today.

Features

  • 24/7 clear surveillance with 4MP resolution and IR night vision up to 20 m (65 ft) so you capture critical details day or night
  • Rugged IK10 vandal resistance and IP66 weatherproofing protect equipment and reduce downtime in outdoor or high-risk installations
  • 107° wide field of view with a 2.8mm fixed lens covers more area and can reduce the number of cameras needed
  • Bandwidth- and storage-efficient H.265 with WiseStream II minimizes network load and lowers ongoing operational costs
  • Flexible installation with PoE, 12V DC support and onboard microSD slot for local backup and resilient recording
  • Intelligent analytics (motion, tamper, enter/exit, defocus detection) enable proactive monitoring and faster incident response
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 4MP Network IR Vandal Resistant Camera
Product Type Camera
Product Model QNV-7012R
Product Series Q
Manufacturer Part Number QNV-7012R
Technical Information
Lens Type Fixed Focus
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/2
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 2.8mm
Connectivity Technology Wired
Field of View (Vertical) 59.7°
Field of View (Horizontal) 107.5°
Effective Camera Resolution 4MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 65.62 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 2560 x 1440
Environmental Conditions
Operating Humidity 95% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature -40°F
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12,000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.8mm
Lens Included Yes
Maximum Focal Length 2.8mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 1.124lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Power Description
Input Voltage 12V DC
Product Information
Diameter 4.74"
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Miscellaneous
Features ,, 30fps at 4MP, 4MP resolution, Built-in 2.8mm fixed lens, Day and Night (ICR), WDR (120dB), Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, H.265, H.264, MJPEG codec supported, Multiple streaming, Hallway view support, WiseStream II, IR viewable length 20m,, LDC support (Lens Distortion Correction), Micro SD (128GB) memory slot, PoE/12V DC
Indoor/Outdoor Outdoor
Country of Origin VN
Impact Protection Rating IK10
