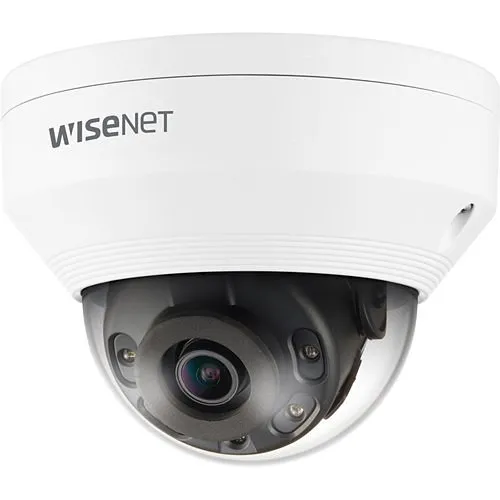

Hanwha QNV-8010R Q-Series 5MP IR Vandal IP Dome Camera, 2.8mm Fixed Lens, White
Key Features
- Capture crisp day/night images with 5MP resolution and built-in IR for up to ~65 ft of nighttime coverage
- Wide 104.7° field of view (2.8mm lens) for broader scene coverage and fewer cameras to monitor large areas
- Robust outdoor protection (IP66) and IK10 vandal resistance to safeguard cameras in high-risk or exposed locations
- Lower bandwidth and storage costs with WiseStream II and H.265 compression while maintaining image quality for long-term monitoring
- Simple installation and management with PoE support, remote management, and local SD recording for resilient surveillance
- Built-in analytics (motion, tampering, defocus) that reduce false alarms and improve incident detection for security teams
Quick Specifications
- Product Model
- QNV-8010R
- Brand Name
- Hanwha Vision
- Product Name
- 5MP Network IR Dome Camera
- Product Type
- Network Camera
Frequently Bought Together
Hanwha QNV-8010R Q-Series 5MP IR Vandal IP Dome Camera, 2.8mm Fixed Lens, White
$312.12
11 items selected
Total: $2,483.43
Explore the details
Product information
QNV-8010R
Overview
Designed for reliable 24/7 site monitoring, the Hanwha Vision QNV-8010R is a compact 5MP vandal-resistant IP dome camera engineered for demanding outdoor security and surveillance applications. Delivering high-resolution imagery with a 2.8mm wide-angle lens and powerful IR illumination, the QNV-8010R makes it easy to identify people and incidents both day and night. Built-in WiseStream II and H.265 compression reduce network bandwidth and storage needs without compromising image clarity, while 120dB WDR preserves detail in challenging lighting such as backlit entrances or parking lots. Rugged IP66 and IK10 ratings protect the camera from weather and impact, and PoE simplifies installation for fast deployment. Intelligent video analytics and local SD backup provide resilient incident capture and lower false alarms for security teams. Ideal for retail, campus, transportation, and perimeter monitoring—add the Hanwha QNV-8010R to your networked security solution for dependable surveillance performance. Contact sales or add to cart to secure your site today.
Features
- Capture crisp day/night images with 5MP resolution and built-in IR for up to ~65 ft of nighttime coverage
- Wide 104.7° field of view (2.8mm lens) for broader scene coverage and fewer cameras to monitor large areas
- Robust outdoor protection (IP66) and IK10 vandal resistance to safeguard cameras in high-risk or exposed locations
- Lower bandwidth and storage costs with WiseStream II and H.265 compression while maintaining image quality for long-term monitoring
- Simple installation and management with PoE support, remote management, and local SD recording for resilient surveillance
- Built-in analytics (motion, tampering, defocus) that reduce false alarms and improve incident detection for security teams
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | 5MP Network IR Dome Camera |
| Product Type | Network Camera |
| Product Model | QNV-8010R |
| Product Series | Q |
| Manufacturer Part Number | QNV-8010R |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Wide Dynamic Range | Yes |
| Minimum Focal Length | 2.80mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Night Vision Distance | 65.62' |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 90% |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 2.8mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.80mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Height | 3.60" |
| Weight | 1.12lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Product Information | |
| Diameter | 4.70" |
| Mount Type | Ceiling Mount, Wall Mount |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | DS-2CD2143G2-IU 2.8MM, QNV-7010R |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | Back Light Compensation (BLC), Built-in IR LED, Day/Night, SD Card Local Storage, Wide Dynamic Range |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
