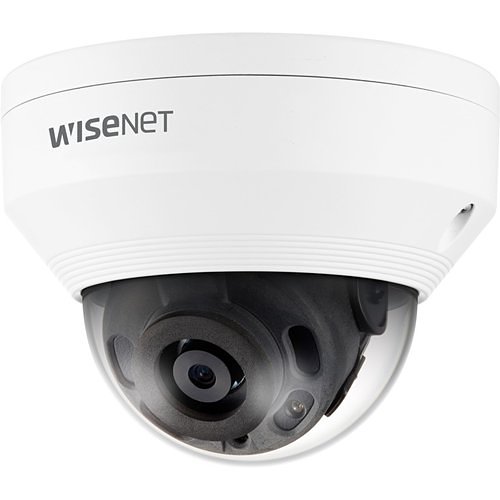

Hanwha QNV-8020R Q-Series 5MP IR Vandal IP Dome Camera, 4mm Fixed Lens, White

SKU: QNV-8020R Hanwha Vision
Wisenet QNV-8020R 5 Megapixel Network Camera - Dome
Product images for Hanwha QNV-8020R Q-Series 5MP IR Vandal IP Dome Camera, 4mm Fixed Lens, White. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Reliable outdoor protection with IK10 vandal resistance and IP66 weatherproofing for uninterrupted surveillance
  • Crisp 5MP imaging and 4mm fixed lens deliver clear evidence-grade video for perimeter and facility monitoring
  • Efficient storage and bandwidth with H.265 plus WiseStream II compression and onboard microSD support (up to 128GB)
  • Night-ready IR illumination (up to 25m) and 120dB WDR ensure usable footage in low light and challenging contrast scenes
  • Simplified installation with PoE and analog video out—reduces installation time and total cost of ownership
  • Intelligent analytics (motion, tamper, defocus, virtual line) help reduce false alarms and speed incident response

Quick Specifications

Brand Name
Hanwha Vision
Manufacturer
Hanwha Vision
Product Name
5 MP Network IR Vandal Resistant Dome Camera with 4mm Lens
Product Type
Dome Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Secure outdoor perimeters, parking areas and high-traffic entrances with dependable, high-resolution surveillance. The Hanwha Vision QNV-8020R Q-Series 5MP IR vandal IP dome camera combines robust physical protection with smart video performance to keep critical assets monitored day and night. Capture detailed 2592 x 1944 (5MP) video using the built-in 4mm fixed lens and rely on infrared illumination (visible up to ~25m) plus 120dB WDR to reveal critical details in backlit or low-light scenes.

Designed for professional security deployments, the QNV-8020R reduces bandwidth and storage costs with H.265 and WiseStream II compression while supporting up to 30fps recording and local microSD storage (128GB). PoE simplifies wiring for faster installs and lower labor costs, and NDAA compliance ensures suitability for government and enterprise projects. With tamper and motion detection, plus hallway view support, this dome camera improves monitoring efficiency and accelerates incident response. Ideal for retail, campus, perimeter, and transportation security—contact sales for volume pricing or add the QNV-8020R to your next surveillance upgrade.

Features

  • Reliable outdoor protection with IK10 vandal resistance and IP66 weatherproofing for uninterrupted surveillance
  • Crisp 5MP imaging and 4mm fixed lens deliver clear evidence-grade video for perimeter and facility monitoring
  • Efficient storage and bandwidth with H.265 plus WiseStream II compression and onboard microSD support (up to 128GB)
  • Night-ready IR illumination (up to 25m) and 120dB WDR ensure usable footage in low light and challenging contrast scenes
  • Simplified installation with PoE and analog video out—reduces installation time and total cost of ownership
  • Intelligent analytics (motion, tamper, defocus, virtual line) help reduce false alarms and speed incident response
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 5 MP Network IR Vandal Resistant Dome Camera with 4mm Lens
Product Type Dome Camera
Product Model QNV-8020R
Product Series Q
Manufacturer Part Number QNV-8020R
Technical Information
Lens Type Fixed Focus
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 4mm
Connectivity Technology Wired
Field of View (Vertical) 58.1°
Field of View (Horizontal) 79.8°
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 82.02 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 90% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature -22°F
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12,000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4mm
Lens Included Yes
Maximum Focal Length 4mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces QNV-7020R, QNV-8030R
Physical Characteristics
Color White
Height 3.6"
Weight 1.12 lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Product Information
Diameter 4.74"
Mount Type Ceiling Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features ,, 30fps at all resolutions (H.265/H.264), 5 MP resolution, Analog video out for easy installation, Built-in 4mm fixed lens, Day and Night (ICR), WDR (120dB), Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, H.265, H.264, MJPEG codec supported, Multiple streaming, Hallway view support, IR viewable length 25m,, Micro SD (128GB) memory slot, PoE
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
