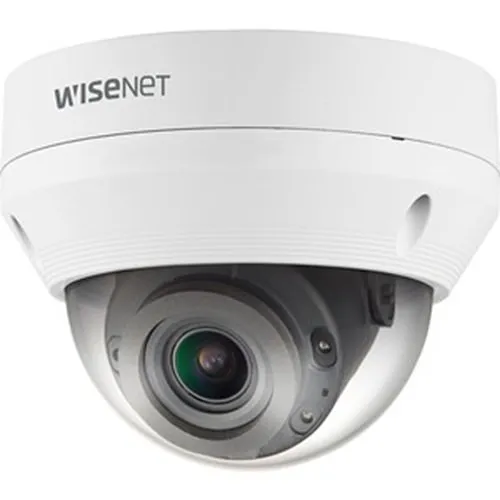

Hanwha QNV-8080R Q-Series 5MP IR Vandal IP Dome Camera, 3.2-10mm Varifocal Lens, White

SKU: QNV-8080R Hanwha Vision
Wisenet QNV-8080R 5 Megapixel Network Camera - Dome
Product images for Hanwha QNV-8080R Q-Series 5MP IR Vandal IP Dome Camera, 3.2-10mm Varifocal Lens, White. 2 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Reliable outdoor surveillance with vandal-resistant IK10 and weatherproof IP66 housing for uninterrupted monitoring in harsh environments
  • Crisp 5MP resolution and motorized 3.2–10mm varifocal lens for flexible close-up or wide-area coverage without manual refocus
  • Built-in IR night vision (up to ~98 ft) and 120dB True WDR to capture clear images in low light and high-contrast scenes
  • Efficient H.265 + WiseStream II compression and PoE support reduce bandwidth and simplify network deployment for scalable CCTV systems
  • Onboard SD storage (up to 128GB) and intelligent analytics (motion, tamper, defocus, hallway view) for reliable edge recording and smarter event monitoring

Quick Specifications

Product Model
QNV-8080R
Brand Name
Hanwha Vision
Product Name
5M H.265 NW IR Dome Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

Explore the details

Product information

QNV-8080R

Overview

For facilities that require dependable, high-detail outdoor monitoring, the Hanwha Vision QNV-8080R delivers professional-grade surveillance in a compact vandal dome. This Q-Series 5MP IP dome camera captures detailed 2592 x 1944 footage and features a motorized 3.2–10mm varifocal lens so installers and operators can quickly adjust field of view for parking lots, storefronts, entrances, and perimeters. Built-in IR illumination (effective to about 98 ft) and 120dB True WDR ensure usable images day and night and in challenging lighting.

Designed for security-first deployments, the QNV-8080R combines H.265 and WiseStream II compression to lower bandwidth and storage costs while preserving image clarity. PoE simplifies installation, and IK10 impact resistance plus IP66 ingress protection protect the camera from vandalism and weather. Local SD card recording (up to 128GB), intelligent analytics (motion, tampering, defocus) and a 3-year warranty make it a practical choice for integrators and IT teams building resilient networked CCTV systems. Ideal for commercial, municipal, and campus surveillance—add the QNV-8080R to your security solution or contact sales for deployment guidance.

Features

  • Reliable outdoor surveillance with vandal-resistant IK10 and weatherproof IP66 housing for uninterrupted monitoring in harsh environments
  • Crisp 5MP resolution and motorized 3.2–10mm varifocal lens for flexible close-up or wide-area coverage without manual refocus
  • Built-in IR night vision (up to ~98 ft) and 120dB True WDR to capture clear images in low light and high-contrast scenes
  • Efficient H.265 + WiseStream II compression and PoE support reduce bandwidth and simplify network deployment for scalable CCTV systems
  • Onboard SD storage (up to 128GB) and intelligent analytics (motion, tamper, defocus, hallway view) for reliable edge recording and smarter event monitoring
49 of 49 specifications
Technical specifications for Hanwha QNV-8080R Q-Series 5MP IR Vandal IP Dome Camera, 3.2-10mm Varifocal Lens, White
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 5M H.265 NW IR Dome Camera
Product Type Network Camera
Product Model QNV-8080R
Product Series Q
Country of Origin VN
Manufacturer Part Number QNV-8080R
Technical Information
Lens Type Varifocal
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Night Vision Type Infrared (IR)
Maximum Frame Rate 30fps
Wide Dynamic Range Yes
Minimum Focal Length 3.20mm
Connectivity Technology Wired
Field of View (Vertical) 31.20°
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 90%
Maximum Operating Temperature 131°F
Minimum Operating Temperature -22°F
Exposure
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.2-10mm
Lens Included Yes
Minimum Aperture f/2.9
Maximum Focal Length 10.00mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Height 4.20"
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Product Information
Diameter 5.40"
Mount Type Ceiling Mount
Storage
Storage Type Memory Card
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Back Light Compensation (BLC), Built-in IR LED, Day/Night, Digital Noise Reduction, SD Card Local Storage
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
