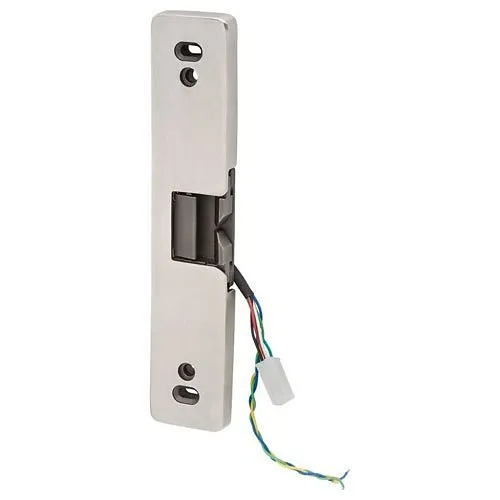

Locknetics RS200-32D Rim Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Satin Stainless Steel

Deliver dependable access control where it matters most. The Locknetics RS200 rim electric strike is built for commercial entrances using rim exit devices, providing reliable locking with a 1,500 lb holding strength to secure high-traffic doors. Its surface-mounted design and included spacers accommodate 1/2" or 3/4" pullman latchbolts and slotted mounting holes speed field installation and reduce retrofit time on aluminum or wood frames. Dual-voltage 12/24 VDC operation (270/540 mA) offers straightforward integration with existing access control panels, power supplies, and monitoring systems. The RS200 supports fail-safe or fail-secure configurations to meet site-specific safety and security policies, and its satin stainless finish delivers corrosion resistance and a professional appearance. For facilities that require audible verification or alarm interlock, pair with the TBR-100 buzzer/rectifier. Ideal for commercial, institutional, and multi-tenant buildings, the Locknetics RS200 electric strike simplifies installation while reinforcing perimeter security and surveillance strategies. Add the RS200 to your next project for a durable, easily integrated rim strike solution.

• High holding strength for safer entry points: 1,500 lb static strength protects high-traffic doors and perimeter exits
• Flexible installation reduces labor: surface-mounted design with multiple spacers and slotted holes for quick alignment on aluminum or wood frames
• Dual-voltage power compatibility: 12/24 VDC operation with low current draw (270/540 mA) for easy integration into existing access control systems
• Selectable fail-safe / fail-secure operation to match your security policy and emergency egress requirements
• Durable construction and satin stainless finish resist corrosion and blend with commercial hardware for long-term reliability
• Integrates with security, surveillance and monitoring systems; optional TBR-100 buzzer/rectifier available for door status signaling
