SoundTube RS4-EZ-WH 4" Full-Range Ported Hanging Speaker, White

SKU: RS4-EZ-WH SoundTube
Image of 9W-RS4EZWH

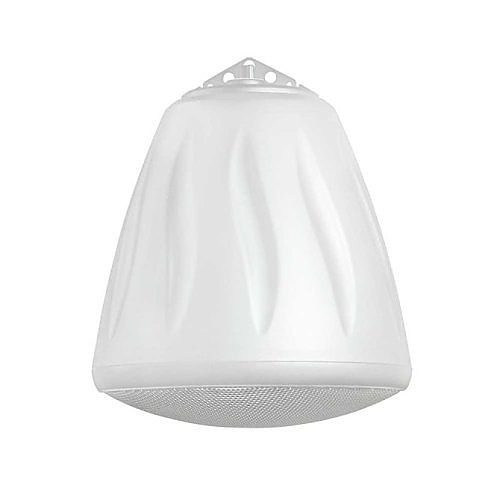

Product images for SoundTube RS4-EZ-WH 4" Full-Range Ported Hanging Speaker, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Quick, secure hanging installation with SpeedClamp™ hardware — reduces labor time and simplifies deployment
  • Clear, high-output audio from a 4" full-range driver with 90 dB sensitivity — lowers amplification costs for large-zone paging
  • ZeroReflection™ ported enclosure for accurate speech intelligibility and consistent sound in open-ceiling spaces
  • Weatherized components and powder-coated steel grille for reliable indoor/outdoor performance in retail, transit, and hospitality environments
  • Five-position tap switch (25/70.7/100V) plus transformer bypass for flexible system design and easier inventory management

Quick Specifications

Brand Name
SoundTube
Manufacturer
SoundTube
Product Name
RS4-EZ Speaker
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

Designed for fast installation and reliable performance, the SoundTube RS4-EZ is a 4" full-range ported hanging pro speaker engineered for clear voice reproduction and efficient background music. Ideal for retail, hospitality, corporate, transportation and security environments, the RS4-EZ delivers consistent speech intelligibility thanks to patented ZeroReflection™ enclosure technology and a custom-engineered driver. With 20W RMS power handling, a 90 dB sensitivity rating and a frequency response of 98 Hz–22 kHz, this compact speaker provides high output with reduced amplifier requirements.

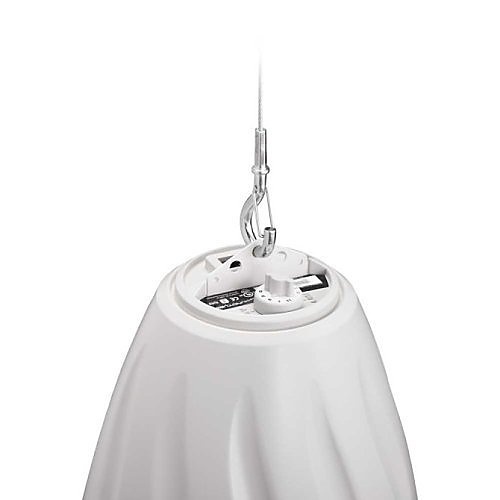

The RS4-EZ includes galvanized hanging hardware with an integrated SpeedClamp™ self-locking wire grip for fast, secure mounting and a five-position tap switch for 25/70.7/100V systems, plus transformer bypass for 8-ohm direct-drive setups. Weatherized components and a durable powder-coated grille extend reliability for indoor/outdoor applications, and the low-profile design blends discretely into ceilings and open spaces. Because it’s compatible with paging, monitoring and security system deployments, the RS4-EZ is an efficient audio solution for AV integrators and security professionals. Contact sales to specify the RS4-EZ for your next project or add it to your system design.

Features

  • Quick, secure hanging installation with SpeedClamp™ hardware — reduces labor time and simplifies deployment
  • Clear, high-output audio from a 4" full-range driver with 90 dB sensitivity — lowers amplification costs for large-zone paging
  • ZeroReflection™ ported enclosure for accurate speech intelligibility and consistent sound in open-ceiling spaces
  • Weatherized components and powder-coated steel grille for reliable indoor/outdoor performance in retail, transit, and hospitality environments
  • Five-position tap switch (25/70.7/100V) plus transformer bypass for flexible system design and easier inventory management
General Information
Brand Name SoundTube
Manufacturer SoundTube
Product Name RS4-EZ Speaker
Product Type Speaker
Product Model RS4-EZ
Product Series RS-EZ
Manufacturer Part Number RS4-EZ-WH
Technical Information
Impedance 8 ohms
Sensitivity 90dB
Audio
RMS Output Power 20W
Maximum Frequency Response 22 kHz
Minimum Frequency Response 98Hz
Certifications
TAA Compliant No
Environmental Conditions
Sound Emission 0 dB
Physical Characteristics
Color White
Height 8.8"
Enclosure Type Ported
Product Information
Diameter 7.7"
Warranty
Limited Warranty 5-Year
Miscellaneous
Indoor/Outdoor Indoor, Outdoor
Country of Origin CN
Environmentally Friendly Yes
