Eaton Tripp Lite SM2200RMDVTAA TAA SmartPro 120V 2.2KVA 1.92KW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features
- Keeps critical systems online with clean, sine-wave power: 2.2kVA / 1.92kW capacity protects servers, network gear and security systems during outages.
- Dual-voltage input and AVR maintain stable 120V output from 120/230V sources, reducing downtime from brownouts and surges.
- Rack/tower flexibility (3U) with hot-swappable batteries and optional external packs for scalable runtime—ideal for remote monitoring and surveillance deployments.
- Network-ready management: USB, DB9 serial and optional SNMP card slot enable remote monitoring, graceful shutdowns and integration with security/IT management tools.
- Energy-efficient operation (95% line mode) lowers operating costs and heat output in data closets and surveillance hubs.
Quick Specifications
- Product Model
- SM2200RMDVTAA
- Sector
- Data Comm & Networking
- Brand Name
- Eaton Tripp Lite
- Product Line
- SmartPro
Frequently Bought Together
Eaton Tripp Lite SM2200RMDVTAA TAA SmartPro 120V 2.2KVA 1.92KW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9
$2,513.11
10 items selected
Total: $7,889.13
Explore the details
Product information
SM2200RMDVTAA
Overview
Protect critical IT, security and surveillance infrastructure with the Eaton Tripp Lite SM2200RMDVTAA SmartPro UPS. This line-interactive UPS delivers clean, sine-wave AC and instant battery support to prevent interruptions for servers, network switches, DVR/NVR systems and monitoring stations. With 2.2kVA (1.92kW) capacity and dual-input 120/230V compatibility, the SM2200RMDVTAA maintains a regulated 120V output using Automatic Voltage Regulation (AVR) across wide input ranges—minimizing disruption from brownouts and surges.
Designed for racks or tower installations (3U form factor), the UPS provides hot-swappable internal batteries and support for optional external battery packs to extend runtime (approximately 30 minutes at half load, 12 minutes at full load). Built-in USB and DB9 serial ports plus a network management card slot allow SNMP monitoring, remote-reboot and automated safe shutdown for sensitive equipment. At 95% efficiency in line mode, it reduces energy costs and heat—important for always-on security and monitoring environments.
Ideal for IT, security, surveillance and telecommunications environments, the Eaton Tripp Lite SM2200RMDVTAA offers reliable, scalable backup power. Contact sales or add to your network closet to ensure uninterrupted operation.
Features
- Keeps critical systems online with clean, sine-wave power: 2.2kVA / 1.92kW capacity protects servers, network gear and security systems during outages.
- Dual-voltage input and AVR maintain stable 120V output from 120/230V sources, reducing downtime from brownouts and surges.
- Rack/tower flexibility (3U) with hot-swappable batteries and optional external packs for scalable runtime—ideal for remote monitoring and surveillance deployments.
- Network-ready management: USB, DB9 serial and optional SNMP card slot enable remote monitoring, graceful shutdowns and integration with security/IT management tools.
- Energy-efficient operation (95% line mode) lowers operating costs and heat output in data closets and surveillance hubs.
| General Information | |
|---|---|
| Sector | Data Comm & Networking |
| Brand Name | Eaton Tripp Lite |
| Manufacturer | Tripp Lite by Eaton |
| Product Line | SmartPro |
| Product Name | SmartPro SM2200RMDVTAA 2200 VA Tower/Rack Mountable UPS |
| Product Type | Line-interactive UPS |
| Product Model | SM2200RMDVTAA |
| Country of Origin | TW |
| Packaged Quantity | 1 |
| Manufacturer Part Number | SM2200RMDVTAA |
| Technical Information | |
| Hot Swappable | Yes |
| Transfer Time | 4ms |
| Output Voltage | 120V AC |
| Receptacle Type | NEMA 5-15/20R, NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15/20R, 4 x NEMA 5-15R |
| Software Included | Yes |
| Backup/Run Time (Full Load) | 12.0min |
| Backup/Run Time (Half Load) | 30.0min |
| Battery Information | |
| Battery Recharge Time | 4.50hr |
| Certifications | |
| TAA Compliant | Yes |
| Interfaces/Ports | |
| Serial Port | Yes |
| Management | |
| Network Management | SNMP Manageable |
| Physical Characteristics | |
| Depth | 25.30" |
| Width | 17.50" |
| Height | 5.30" |
| Form Factor | Rack Mount, Tower |
| Power Description | |
| Input Voltage | 110V AC, 220V AC |
| Waveform Type | Pure Sine Wave |
| Product Information | |
| Mount Type | Tower Mount |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |

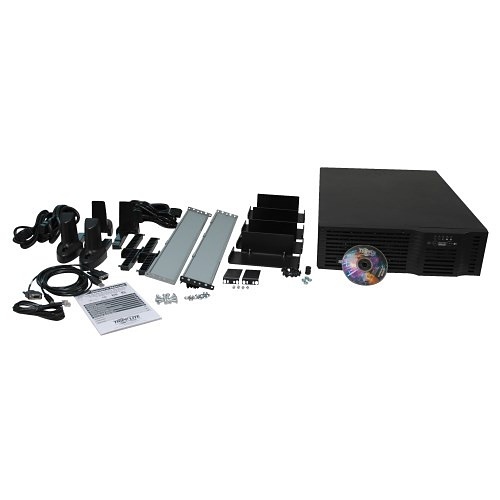

| Package Contents | 4 Post 19 inch Rackmount Mounting Kit |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
