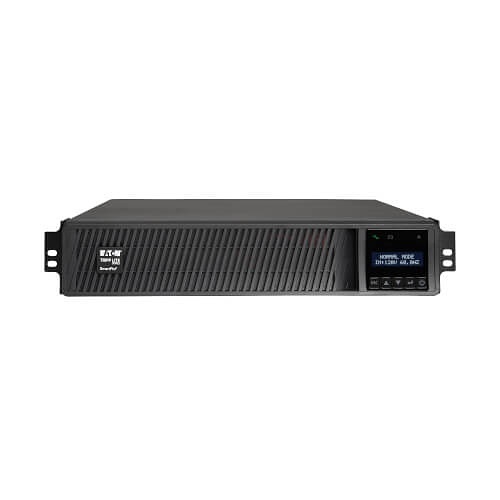

Eaton Tripp Lite SMART2200RMXL2U 1920W UPS Smart Rackmount AVR 120V LCD USB DB9 2URM
Image of 10
Key Features
- Protects critical servers, network and surveillance equipment with 1950VA / 1950W line-interactive backup, minimizing downtime and data loss
- Built-in AVR and fast 4 ms transfer time stabilize voltage during brownouts and surges so connected IT and security systems stay online
- Rack/tower versatility with a 2U form factor and rotating LCD for easy monitoring in any installation
- Hot-swappable, field-replaceable batteries and optional external battery modules for extended runtime and simplified maintenance
- Network-ready communications (USB, DB9/serial, optional SNMP card) and EPO support for centralized monitoring and safe shutdowns
Quick Specifications
- Product Model
- SMART2200RMXL2U
- Sector
- Data Comm & Networking
- Brand Name
- Eaton Tripp Lite
- Product Line
- SmartPro
Frequently Bought Together
Eaton Tripp Lite SMART2200RMXL2U 1920W UPS Smart Rackmount AVR 120V LCD USB DB9 2URM
$1,832.57
13 items selected
Total: $6,657.45
Explore the details
Product information
SMART2200RMXL2U
Overview
Keep servers, switches and security/surveillance systems running through power disturbances with the Eaton Tripp Lite SMART2200RMXL2U UPS. This line-interactive UPS delivers 1950VA / 1950W of clean sine-wave output, integrated Automatic Voltage Regulation (AVR) and a fast 4 ms transfer time — protecting critical IT and monitoring equipment from brownouts, surges and outages. The compact 2U rackmount design with a rotating LCD provides clear system status and configurable settings for data centers, network closets and video surveillance racks. Hot-swappable VRLA batteries and support for optional extended battery modules minimize service downtime and extend run time for controlled shutdowns or continued operation of security systems. Advanced communications include USB, DB9 serial and a slot for an optional SNMP network card, enabling centralized monitoring, scheduled remote reboot and integration with power management software. TAA-compliant and ENERGY STAR certified, the SMART2200RMXL2U is engineered for reliability in demanding enterprise and security environments. Ideal for IT, security, and telecom applications — choose this UPS to keep your infrastructure protected and manageable.
Features
- Protects critical servers, network and surveillance equipment with 1950VA / 1950W line-interactive backup, minimizing downtime and data loss
- Built-in AVR and fast 4 ms transfer time stabilize voltage during brownouts and surges so connected IT and security systems stay online

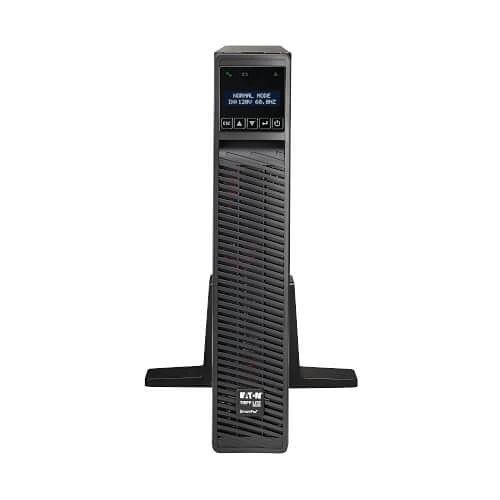

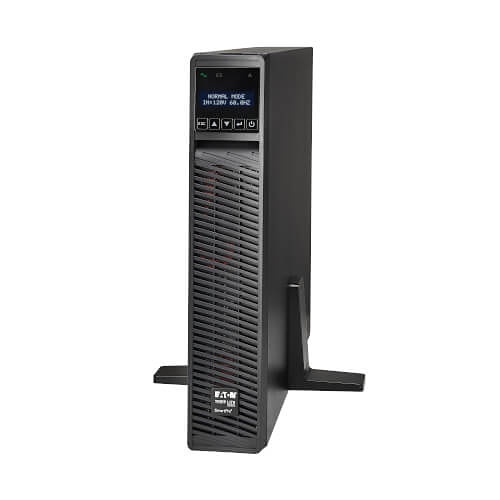

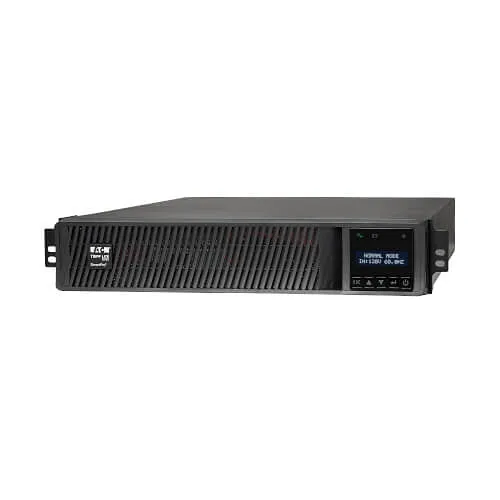

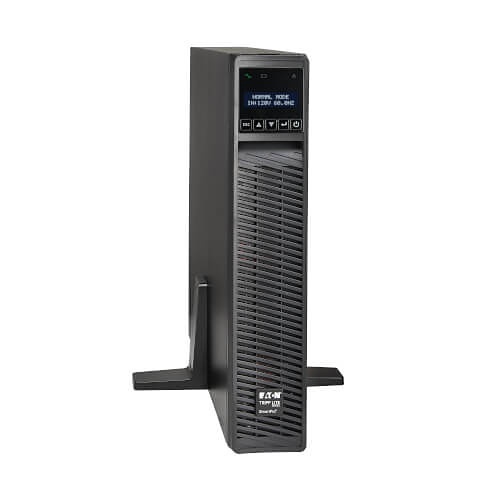

- Rack/tower versatility with a 2U form factor and rotating LCD for easy monitoring in any installation
- Hot-swappable, field-replaceable batteries and optional external battery modules for extended runtime and simplified maintenance
- Network-ready communications (USB, DB9/serial, optional SNMP card) and EPO support for centralized monitoring and safe shutdowns
| General Information | |
|---|---|
| Sector | Data Comm & Networking |
| Brand Name | Eaton Tripp Lite |
| Manufacturer | Tripp Lite by Eaton |
| Product Line | SmartPro |
| Product Name | SMART2200RMXL2U UPS System |
| Product Type | Line-interactive UPS |
| Product Model | SMART2200RMXL2U |
| Application/Usage | Data Storage, IT Equipment, Server, Switch |
| Country of Origin | TW |
| Packaged Quantity | 1 |
| Manufacturer Part Number | SMART2200RMXL2U |
| Technical Information | |
| Phase | Single Phase |
| Hot Swappable | Yes |
| Transfer Time | 4.00ms |
| Output Voltage | 110V AC, 120V AC |

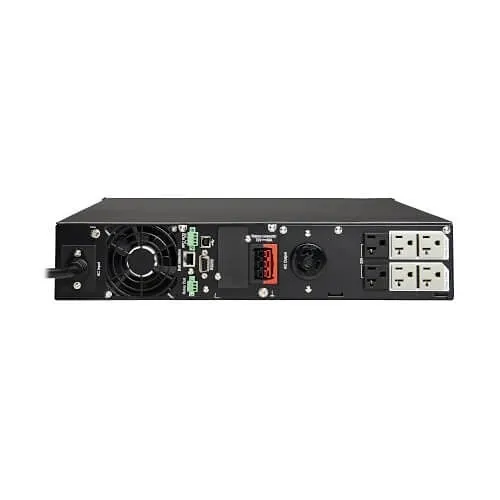

| Receptacle Type | NEMA 5-15R, NEMA 5-20R |
| Number of Outlets | 7 |
| Receptacle Detail | 4 x NEMA 5-15R, 4 x NEMA 5-20R |
| Overload Protection | Yes |
| Backup/Run Time (Full Load) | 4.5min |
| Backup/Run Time (Half Load) | 12.0min |
| Battery Information | |
| Battery Chemistry | Lead acid |
| DC System Voltage | 72 |
| Replaceable Battery | Yes |
| Battery Recharge Time | 4.50hr |
| Battery Characteristics | VRLA |
| Certifications | |
| TAA Compliant | Yes |
| Controls/Indicators | |
| Status Indicators | Yes |
| Environmental Conditions | |
| Maximum Storage Elevation | 32808.0' |
| Maximum Operating Elevation | 10000.0000' |
| Maximum Operating Temperature | 104.00°F |
| Interfaces/Ports | |
| Serial Port | Yes |
| Management | |
| Alarm | Low Battery, On Battery, Overload |
| Network Management | SNMP Manageable |
| Physical Characteristics | |
| Depth | 23.70" |
| Width | 17.50" |
| Height | 3.50" |
| Weight | 64.00lb |
| Form Factor | Tower |
| Power Description | |
| Input Voltage | 120V AC |
| Waveform Type | Pure Sine Wave |

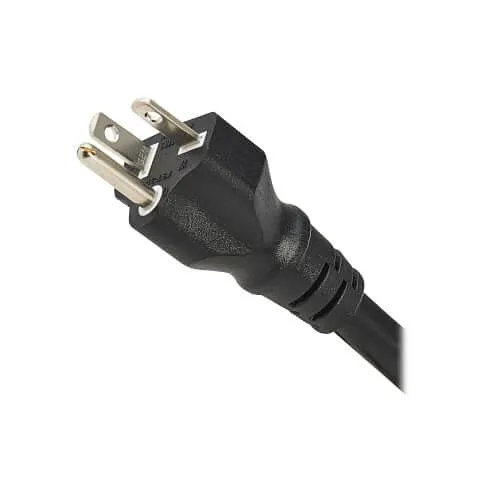

| Plug/Connector Type | NEMA 5-20P |
| Surge Energy Rating | 380J |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | SMART2600RM2U |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
