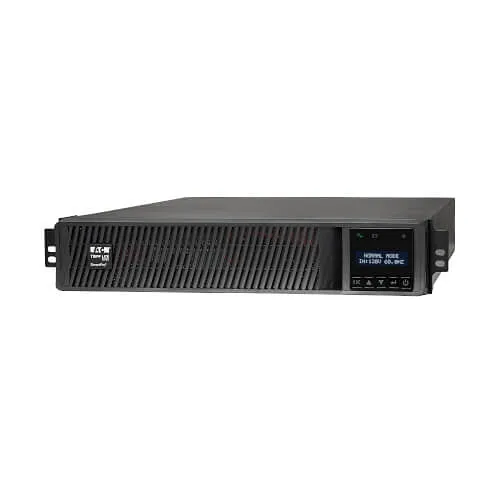

Eaton Tripp Lite SMART3000RM2U 3000VA 2250W UPS Smart Rackmount AVR 120V USB DB9 SNMP 2URM
Image of 10
Key Features
- Continuous, enterprise-grade uptime for servers, network gear and security systems with 3000VA/2250W capacity
- Auto-Voltage Regulation (AVR) stabilizes brownouts and surges to protect sensitive surveillance and monitoring equipment
- Hot-swappable VRLA batteries enable on-site replacement without downtime, minimizing maintenance windows
- Network-ready management via USB, DB9 and SNMP for remote monitoring, scheduled reboots and proactive alerts

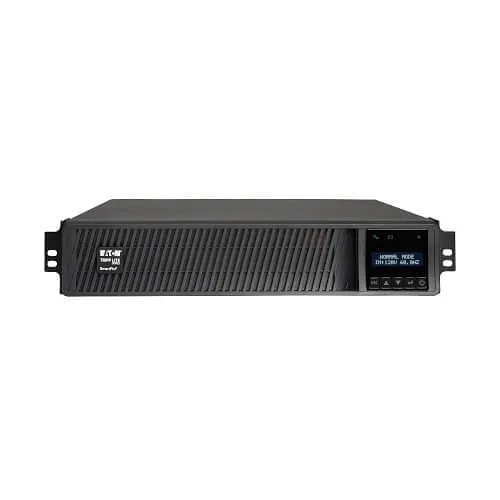

- Space-saving 2U rack/tower design with high line-mode efficiency to reduce heat and operating costs
Quick Specifications
- Product Model
- SMART3000RM2U
- Sector
- Data Comm & Networking
- Brand Name
- Eaton Tripp Lite
- Product Line
- SmartPro
Frequently Bought Together
Eaton Tripp Lite SMART3000RM2U 3000VA 2250W UPS Smart Rackmount AVR 120V USB DB9 SNMP 2URM
$1,987.21
12 items selected
Total: $7,336.36
Explore the details
Product information
SMART3000RM2U
Overview
Protect critical IT, security and surveillance infrastructure with the Eaton Tripp Lite SMART3000RM2U UPS — a rugged, line-interactive UPS built for data centers, server rooms and remote monitoring sites. Delivering 3000VA/2250W of clean sine-wave power and built-in Auto-Voltage Regulation (AVR), it corrects brownouts and overvoltages to keep servers, switches and cameras running without disruption. The SMART3000RM2U supports hot-swappable VRLA battery modules and offers a fast 4 ms transfer time, so your security and storage systems stay online during outages and maintenance. Remote management is simple with USB, DB9 serial and optional SNMP network card support for centralized monitoring, event logging and controlled shutdowns. Designed for rack or tower deployment at 2U height, this Eaton Tripp Lite UPS balances high availability with efficiency to lower operating costs and thermal load. Ideal for IT managers and integrators protecting surveillance, access control and networking gear—deploy the SMART3000RM2U to ensure continuous power and streamlined monitoring across your estate.
Features
- Continuous, enterprise-grade uptime for servers, network gear and security systems with 3000VA/2250W capacity
- Auto-Voltage Regulation (AVR) stabilizes brownouts and surges to protect sensitive surveillance and monitoring equipment
- Hot-swappable VRLA batteries enable on-site replacement without downtime, minimizing maintenance windows
- Network-ready management via USB, DB9 and SNMP for remote monitoring, scheduled reboots and proactive alerts
- Space-saving 2U rack/tower design with high line-mode efficiency to reduce heat and operating costs
| General Information | |
|---|---|
| Sector | Data Comm & Networking |
| Brand Name | Eaton Tripp Lite |
| Manufacturer | Tripp Lite by Eaton |
| Product Line | SmartPro |
| Product Name | SMART3000RM2U UPS System |
| Product Type | Line-interactive UPS |
| Product Model | SMART3000RM2U |
| Application/Usage | Data Storage, IT Equipment, Server, Switch |
| Country of Origin | TW |
| Packaged Quantity | 1 |
| Manufacturer Part Number | SMART3000RM2U |
| Technical Information | |
| Phase | Single Phase |
| Hot Swappable | Yes |
| Transfer Time | 4ms |
| Output Voltage | 120V AC |
| Receptacle Type | NEMA 5-15/20R, NEMA L5-30R |
| Number of Outlets | 7 |

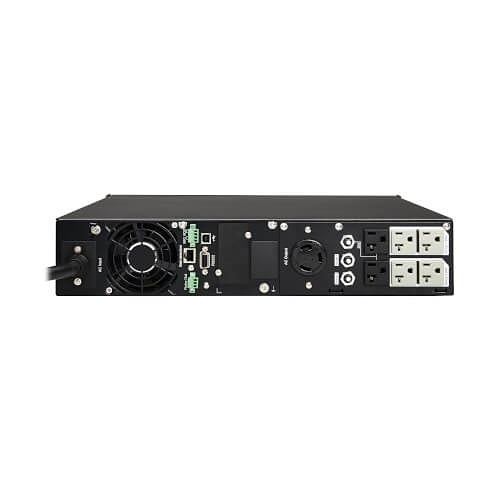

| Receptacle Detail | 1 x NEMA L5-30R, 8 x NEMA 5-15/20R |
| Software Included | Yes |
| Overload Protection | Yes |
| Backup/Run Time (Full Load) | 3.5min |
| Backup/Run Time (Half Load) | 10.0min |
| Battery Information | |
| Battery Chemistry | Lead acid |
| DC System Voltage | 72 |
| Replaceable Battery | Yes |
| Battery Recharge Time | 4.50hr |
| Battery Characteristics | VRLA |
| Certifications | |
| Energy Star | Yes |
| Controls/Indicators | |
| Status Indicators | Yes |
| Environmental Conditions | |
| Maximum Storage Elevation | 32808' |
| Maximum Operating Elevation | 10000' |
| Maximum Operating Temperature | 104°F |
| Interfaces/Ports | |
| Serial Port | Yes |
| Management | |
| Alarm | Low Battery, On Battery, Overload |
| Network Management | SNMP Manageable |
| Physical Characteristics | |
| Depth | 19.00" |
| Width | 17.50" |
| Height | 3.50" |
| Weight | 64.00lb |

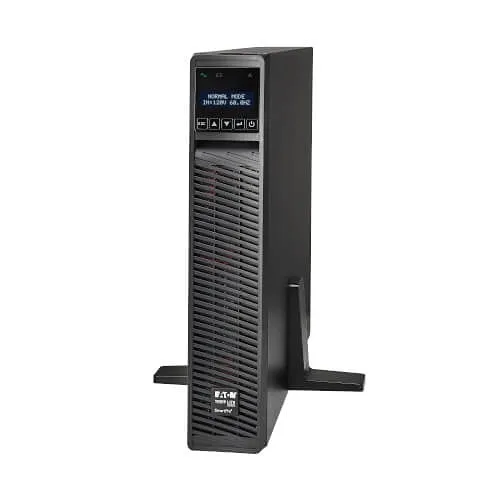

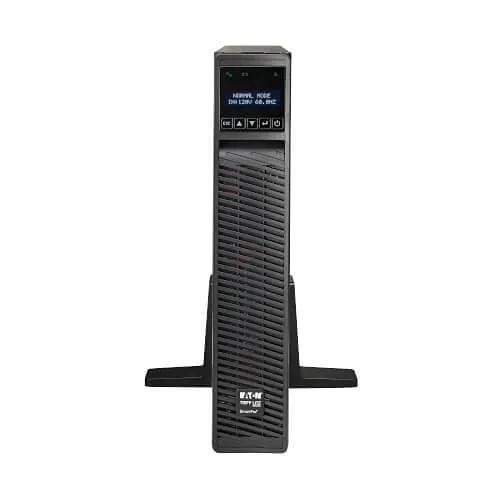

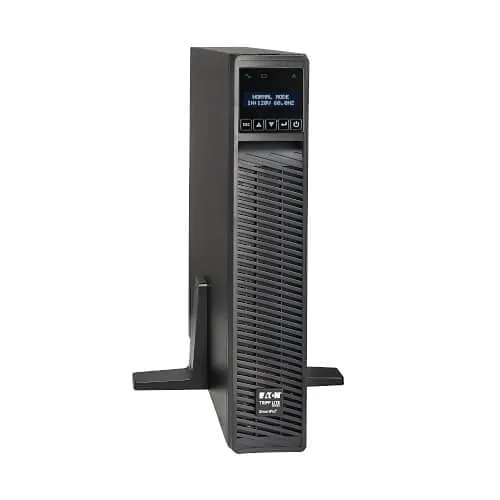

| Form Factor | Tower |
| Power Description | |
| Input Voltage | 120V AC |
| Waveform Type | Pure Sine Wave |

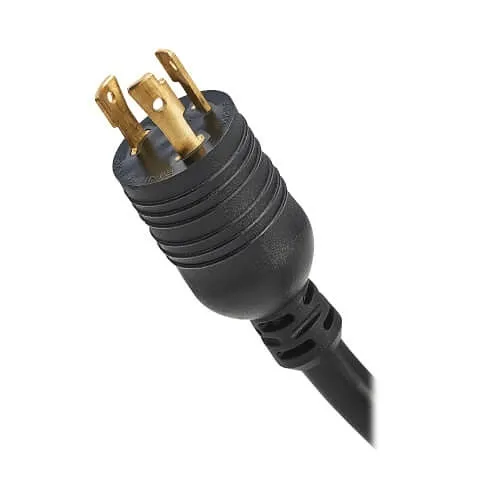

| Plug/Connector Type | NEMA L5-30P |
| Surge Energy Rating | 380J |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
