TRENDnet TEW-841APBO Wireless AC1300 Outdoor PoE+ Omni-Directional Access Point
Key Features

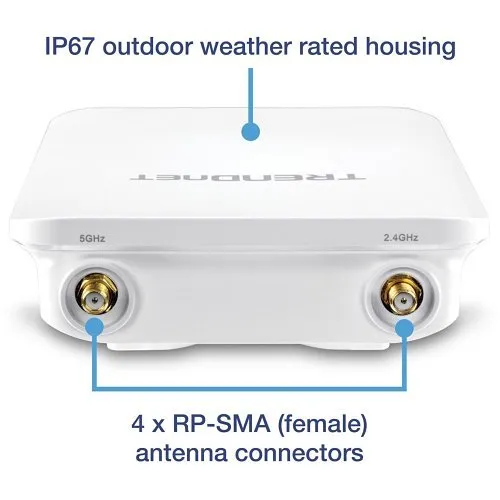

- Deliver reliable outdoor Wi-Fi for security and surveillance with an IP67 weatherproof housing and -20° to 60°C operation

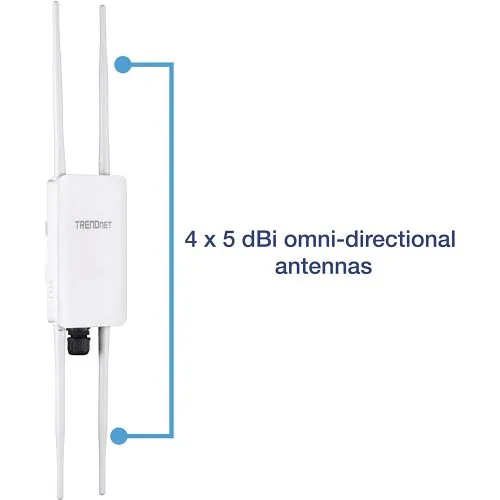

- Dual-band AC1300 performance (up to 1.17 Gbps) with four 5 dBi omni antennas for consistent long-range coverage

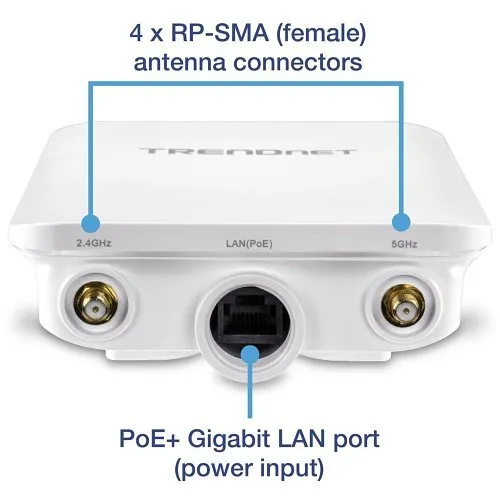

- PoE+ support and Gigabit Ethernet simplify installation and power cameras and monitoring devices with a single cable
- Flexible modes (Access Point, WDS Bridge/Station, Client Bridge) enable point-to-multi-point bridging and network expansion
- TAA/NDAA compliant, includes pole/wall mounts and backed by a 3-year warranty for enterprise and government deployments
Quick Specifications
- Product Model
- TEW-841APBO
- Brand Name
- TRENDnet
- Product Name
- 5dBi Wireless AC1200 Outdoor PoE+ Omni Directional Access Point
- Product Type
- Wireless Access Point
Product Information Tabs
Overview
Deliver reliable, long-range outdoor Wi-Fi for surveillance, security, and remote monitoring with the TRENDnet TEW-841APBO wireless access point. This AC1300 outdoor PoE+ access point pairs dual-band 802.11ac performance (up to 1.17 Gbps) with four detachable 5 dBi omni-directional antennas in an IP67-rated weatherproof enclosure, so you can link buildings and power IP cameras without running separate power lines. Power over Ethernet and Gigabit Ethernet backhaul reduce installation time and cabling while providing sufficient bandwidth for high-definition surveillance streams. Flexible operating modes—Access Point, WDS Bridge/Station, and Client Bridge—allow integrators to create point-to-multi-point bridges and extend networks for campus, retail, industrial, or perimeter security applications. Industrial-grade temperature tolerance (-20° to 60°C), included pole and wall mounts, and TAA/NDAA compliance make this unit suitable for demanding deployments. The TEW-841APBO helps centralize monitoring, improve uptime for security systems, and simplify network expansion. Upgrade your outdoor networking and surveillance infrastructure today—ideal for CCTV, remote monitoring, and wireless backhaul projects.
Features
- Deliver reliable outdoor Wi-Fi for security and surveillance with an IP67 weatherproof housing and -20° to 60°C operation
- Dual-band AC1300 performance (up to 1.17 Gbps) with four 5 dBi omni antennas for consistent long-range coverage
- PoE+ support and Gigabit Ethernet simplify installation and power cameras and monitoring devices with a single cable
- Flexible modes (Access Point, WDS Bridge/Station, Client Bridge) enable point-to-multi-point bridging and network expansion
- TAA/NDAA compliant, includes pole/wall mounts and backed by a 3-year warranty for enterprise and government deployments
| General Information | |
|---|---|
| Brand Name | TRENDnet |
| Manufacturer | TRENDnet |
| Product Name | 5dBi Wireless AC1200 Outdoor PoE+ Omni Directional Access Point |
| Product Type | Wireless Access Point |
| Product Model | TEW-841APBO |
| Product Series | AC1300 |
| Manufacturer Part Number | TEW-841APBO |
| Technical Information | |
| Data Encryption | Yes |
| MIMO Technology | Yes |
| Wi-Fi Generation | Wi-Fi 5 |
| Power Consumption | 12.6W |
| Number of Antennas | 4 |
| Wireless LAN Standard | 802.11ac |
| Wireless Transmission Speed | 1.17 Gbps |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Interfaces/Ports | |
| VGA | No |
| HDMI | No |
| Powerline | No |
| Number of Network (RJ-45) Ports | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Others | |
| Model Number Replaces | TEW-730APO |
| Physical Characteristics | |
| Depth | 5" |
| Width | 3" |
| Height | 3" |
| Weight | 6.16oz |
| Form Factor | Pole Mount |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power over Ethernet (PoE) | Yes |
| Product Information | |
| Mount Type | Pole Mount |
| Tuner | |
| Frequency Band | 2.40GHz, 5GHz |
| Warranty | |
| Limited Warranty | 3-Year |
| Wireless Specifications | |
| Encryption Standard | WEP, WPA, WPA2, WPA2-PSK, WPA-PSK |
| Miscellaneous | |
| Indoor/Outdoor | Outdoor |
| Package Contents | 2 x Detachable 2.4GHz 5 dBi antennas, 2 x Detachable 5GHz 5 dBi antennas, IP67 weather rated cable gland, Mounting Hardware, Quick Installation Guide, TEW-841APBO |
| Country of Origin | TW |
| Environmental Certification | IC |
