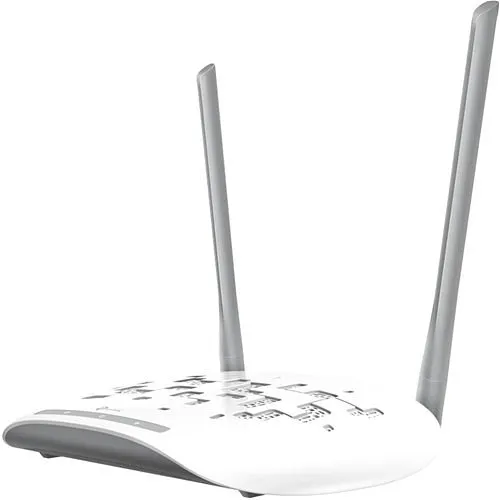

TP-Link TL-WA801N IEEE 802.11n 300 Mbit/S Wireless Access Point

SKU: TL-WA801N TP-Link
Image of FP-TLWA801N
Product images for TP-Link TL-WA801N IEEE 802.11n 300 Mbit/S Wireless Access Point. 8 image(s) available. Click on image to view full size.

Key Features

  • Extend reliable 300 Mbps coverage for offices and retail sites—smooth HD video, VoIP and monitoring without buffering

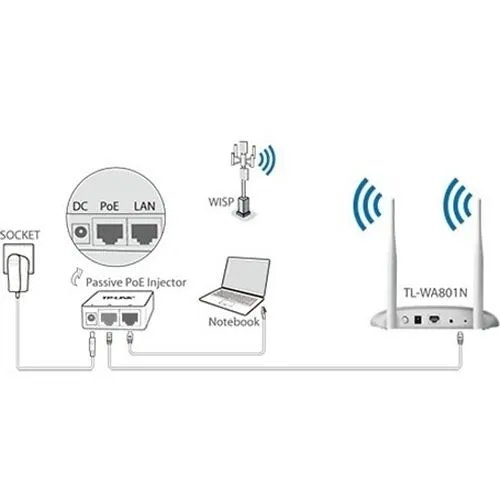

  • Flexible deployment with Passive PoE and included injector—mount on ceilings or walls to optimize signal for surveillance cameras and access control

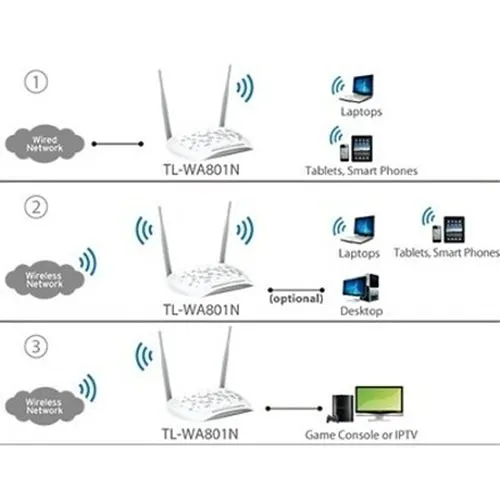

  • Multiple modes (Access Point, Range Extender, Client, Multi-SSID) let you adapt the device to networking, security or guest Wi‑Fi needs
  • MIMO and two external antennas improve range and penetration through walls—better connectivity in challenging building environments
  • Enterprise-grade WPA2 encryption and easy WPS setup protect surveillance, monitoring and business data while simplifying installation

Quick Specifications

Product Model
TL-WA801N
Brand Name
TP-Link
Product Name
300Mbps Wireless N Access Point
Product Type
Wireless Access Point
View Full Technical Specifications

Product Information Tabs

Overview

Deliver dependable wireless connectivity where it matters most. The TP-Link TL-WA801N Wireless Access Point provides business-grade Wi‑Fi for small offices, retail, and surveillance systems, combining 802.11n MIMO performance with practical deployment features. With up to 300 Mbps throughput and two external antennas on the 2.4 GHz band, the TL-WA801N supports smooth HD video streaming, remote monitoring and VoIP while reducing dropouts in steel-and-concrete environments. Passive PoE capability and the included injector let you install the access point up to 100' from power sources—ideal for ceiling mounts above POS terminals or CCTV cameras. Multiple operating modes (Access Point, Range Extender, Client, Multi-SSID) give IT teams flexible options to extend networks, isolate guest traffic or connect non‑wireless devices. Built-in WPA2 encryption and WPS simplify secure setup for surveillance and security deployments. Backed by a 2-year warranty and 24/7 support, the TL-WA801N is a cost-effective choice for reliable networking and monitoring infrastructure. Add it to your network to strengthen coverage for security cameras, access control and business-critical wireless services.

Features

  • Extend reliable 300 Mbps coverage for offices and retail sites—smooth HD video, VoIP and monitoring without buffering
  • Flexible deployment with Passive PoE and included injector—mount on ceilings or walls to optimize signal for surveillance cameras and access control
  • Multiple modes (Access Point, Range Extender, Client, Multi-SSID) let you adapt the device to networking, security or guest Wi‑Fi needs
  • MIMO and two external antennas improve range and penetration through walls—better connectivity in challenging building environments
  • Enterprise-grade WPA2 encryption and easy WPS setup protect surveillance, monitoring and business data while simplifying installation
General Information
Brand Name TP-Link
Manufacturer TP-LINK Technologies Co., Ltd
Product Name 300Mbps Wireless N Access Point
Product Type Wireless Access Point
Product Model TL-WA801N
Packaged Quantity 1
Manufacturer Part Number TL-WA801N
Technical Information
Data Encryption Yes
MIMO Technology Yes
Number of Antennas 2
Wireless LAN Standard 802.11n
Wireless Transmission Speed 39 Mbps
Interfaces/Ports
Number of Network (RJ-45) Ports 1
Network & Communication
Ethernet Technology Gigabit Ethernet
Others
Model Number Replaces TL-WA801ND
Physical Characteristics
Depth 5.1"
Width 7.1"
Height 1.4"
Form Factor Desktop
Antenna Form Factor External
Tuner
Frequency Band 2.40GHz
Warranty
Limited Warranty 2-Year
Wireless Specifications
Encryption Standard WEP, WPA, WPA2, WPA2-PSK
Miscellaneous
Indoor/Outdoor Indoor
Country of Origin CN|VN
Environmentally Friendly Yes
