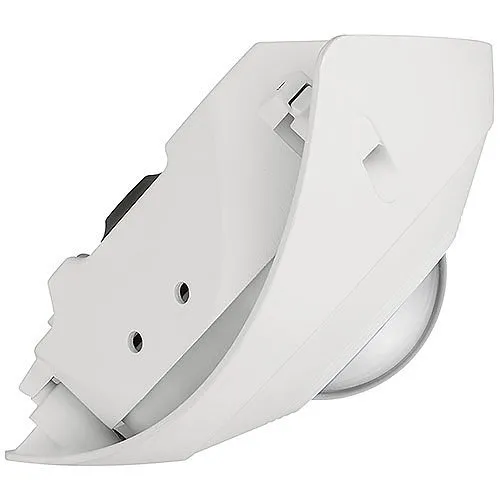

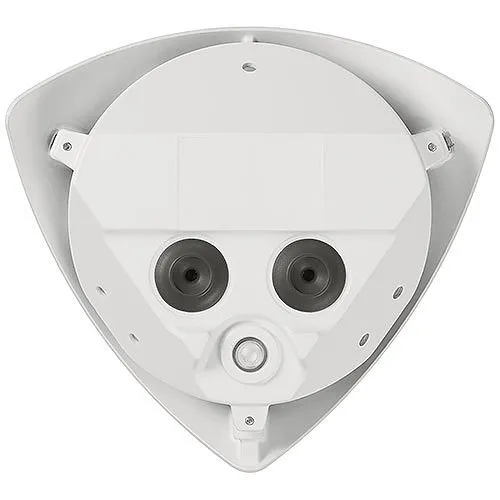

Hanwha TNV-8011C T Series 5MP Anti-Ligature Corner-Mount Camera, 2.3mm Fixed Lens, White

SKU: TNV-8011C Hanwha Vision
Hanwha TNV-8011C 5MP WDR Vandal Corner Camera, 2.3mm Fixed Lens
Product images for Hanwha TNV-8011C T Series 5MP Anti-Ligature Corner-Mount Camera, 2.3mm Fixed Lens, White. 3 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Purpose-built anti-ligature corner design minimizes tamper points and enhances safety in behavioral health, corrections and high-risk environments
  • 5MP resolution with a 2.3mm wide-angle lens delivers clear, actionable video (2592 x 1944) for better identification and evidence capture
  • IP66/IP6K9K weatherproofing and IK10 impact resistance ensure reliable, low-maintenance surveillance in harsh or vandal-prone locations
  • H.265, WiseStream II and 30 fps performance reduce bandwidth and storage costs while maintaining smooth, real-time monitoring
  • On-board microSD storage (up to 128GB) plus built-in analytics and remote management enable resilient, scalable deployments and rapid incident review

Quick Specifications

Product Model
TNV-8011C
Brand Name
Hanwha Vision
Product Name
5MP Anti-ligature Corner-mount Camera
Product Type
Corner Mount Camera
View Full Technical Specifications

Product Information Tabs

Overview

Protect people and property with a camera engineered for safety-first installations. The Hanwha Vision TNV-8011C T Series 5MP anti-ligature corner-mount camera combines a tamper-resistant housing with high-resolution imaging to deliver reliable surveillance in behavioral health, corrections, eldercare and other sensitive facilities. The 5MP sensor (2592 x 1944) and 2.3mm fixed lens provide a wide 131° horizontal field of view for comprehensive monitoring, while WDR and low-light sensitivity keep scenes usable day or night.

Designed for demanding environments, the TNV-8011C carries IP66/IP6K9K ingress protection and IK10 impact resistance for durable, low-maintenance operation. Advanced video codecs (H.265/H.264, WiseStream II) and 30 fps streaming optimize network load and storage, and a microSD slot (up to 128GB) supports local recording for redundancy. Built-in analytics, tamper detection and remote management simplify system integration and help teams respond faster.

If your project requires compliant, secure and vandal-resistant surveillance, the Hanwha Vision 5MP anti-ligature corner camera is a practical choice. Contact us for a quote or specification support to deploy effective security and monitoring solutions.

Features

  • Purpose-built anti-ligature corner design minimizes tamper points and enhances safety in behavioral health, corrections and high-risk environments
  • 5MP resolution with a 2.3mm wide-angle lens delivers clear, actionable video (2592 x 1944) for better identification and evidence capture
  • IP66/IP6K9K weatherproofing and IK10 impact resistance ensure reliable, low-maintenance surveillance in harsh or vandal-prone locations
  • H.265, WiseStream II and 30 fps performance reduce bandwidth and storage costs while maintaining smooth, real-time monitoring
  • On-board microSD storage (up to 128GB) plus built-in analytics and remote management enable resilient, scalable deployments and rapid incident review
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 5MP Anti-ligature Corner-mount Camera
Product Type Corner Mount Camera
Product Model TNV-8011C
Product Series T
Manufacturer Part Number TNV-8011C
Technical Information
Lens Type Fixed
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/2.3
Maximum Frame Rate 30fps
Minimum Focal Length 2.3mm
Connectivity Technology Wired
Field of View (Vertical) 93.4°
Field of View (Horizontal) 131°
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66, IP6K9K
Display & Graphics
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 95% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature 14°F
Exposure
Minimum Illumination 0.02 lux
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 2 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 2.3mm
Lens Included Yes
Maximum Focal Length 2.3mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Depth 3.1"
Width 6.69"
Height 6.49"
Weight 1.83lb
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Product Information
Mount Type Corner Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Alarm Triggering, Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Built-in Mechanical ICR, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Microphone In, Motion Detection, Privacy Masking, SD Card Local Storage, Tamper Detection, Wide Dynamic Range
Country of Origin VN
Impact Protection Rating IK10
