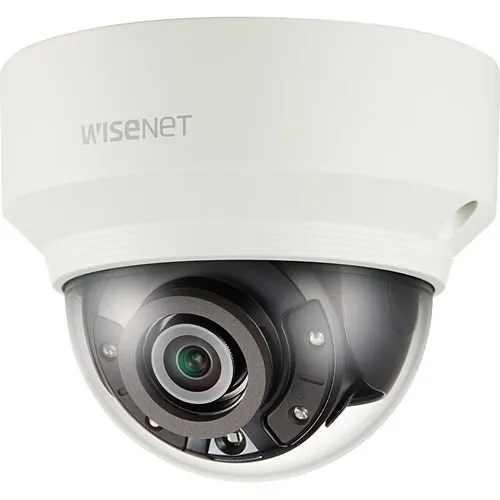

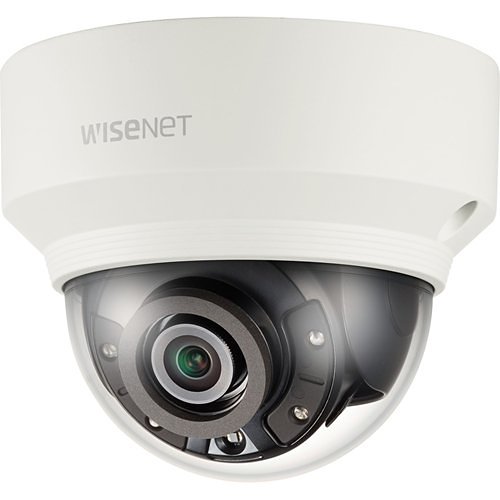

Hanwha XND-6020R X-Series 2MP IR Indoor Dome Camera, 4mm Fixed Lens, White
Key Features
- Crisp, evidence-quality 1080p imaging that improves identification and incident review for indoor security and monitoring
- Advanced low-light and IR performance to maintain reliable surveillance up to ~98 ft for 24/7 coverage
- 150dB WDR and defog deliver clear footage in challenging lighting and backlit scenes, reducing false alarms and missed details
- H.265 + WiseStream II compression and dual SD support reduce bandwidth and storage costs while preserving video quality
- Vandal-resistant IK08 dome and flexible PoE/12VDC/24VAC power options simplify installation and protect hardware in high-traffic areas
Quick Specifications
- Brand Name
- Hanwha Vision
- Manufacturer
- Hanwha Vision
- Product Name
- 2MP Indoor IR Vandal Dome
- Product Type
- Dome Camera
Frequently Bought Together
Hanwha XND-6020R X-Series 2MP IR Indoor Dome Camera, 4mm Fixed Lens, White
$367.20
10 items selected
Total: $2,359.21
Product Information Tabs
Overview
Designed for dependable indoor surveillance, the Hanwha Vision XND-6020R X-Series dome camera delivers clear, actionable video where it matters most. As a 2MP indoor IR vandal dome camera, it combines Full HD imaging with a 4mm fixed lens and industry-leading 150dB Wide Dynamic Range to capture faces and license plates even in difficult lighting. Built-in IR extends night monitoring to roughly 98 ft, ensuring continuous coverage for lobbies, corridors, retail floors and office spaces.
This Hanwha Vision dome supports H.265, H.264 and WiseStream II compression for efficient networking and reduced storage use, plus dual SD card recording for failover protection. Intelligent analytics — including loitering, people counting, sound classification and tamper detection — streamline monitoring and cut false alarms, improving response times. The IK08 impact rating and multiple mounting options make the XND-6020R ideal for high-traffic indoor environments requiring durable, discreet security.
Upgrade your facility monitoring with a camera that balances image quality, analytics and operational efficiency. Contact us to specify the XND-6020R for retail, education, healthcare or corporate security deployments.
Features
- Crisp, evidence-quality 1080p imaging that improves identification and incident review for indoor security and monitoring
- Advanced low-light and IR performance to maintain reliable surveillance up to ~98 ft for 24/7 coverage
- 150dB WDR and defog deliver clear footage in challenging lighting and backlit scenes, reducing false alarms and missed details
- H.265 + WiseStream II compression and dual SD support reduce bandwidth and storage costs while preserving video quality
- Vandal-resistant IK08 dome and flexible PoE/12VDC/24VAC power options simplify installation and protect hardware in high-traffic areas
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 2MP Indoor IR Vandal Dome |
| Product Type | Dome Camera |
| Product Model | XND-6020R |
| Product Series | X |
| Manufacturer Part Number | XND-6020R |
| Technical Information | |
| Lens Type | Fixed |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG, MPEG-4 |
| Maximum Aperture | f/1.4 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 4mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 47.5° |
| Field of View (Horizontal) | 88.6° |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98.43 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | 14°F |
| Exposure | |
| Minimum Illumination | 0.015 lux |
| Longest Shutter Speed | 1/12000 Second |
| Shortest Shutter Speed | 2 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 4mm |
| Maximum Focal Length | 4mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | Ivory |
| Height | 3.5" |
| Weight | 0.84lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 4.3" |
| Mount Type | Ceiling Mount, Corner Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount |
| Storage | |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | CN|KR |
| Impact Protection Rating | IK08 |
