Warehouse: United States

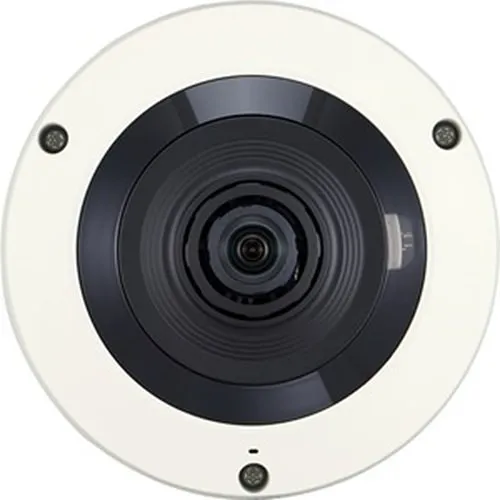

Hanwha XNF-8010R X-Series 6MP IR Indoor Fisheye Camera, 1.6mm Fixed Lens, Ivory

SKU: XNF-8010R Hanwha Vision
Wisenet X-Series XNF-8010R 6 Megapixel Network Camera - Fisheye
Product images for Hanwha XNF-8010R X-Series 6MP IR Indoor Fisheye Camera, 1.6mm Fixed Lens, Ivory. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • 360° situational awareness from a single ceiling mount: one Hanwha XNF-8010R fisheye camera covers wide areas to reduce blind spots and fewer cameras to install
  • High-resolution detail with efficient bandwidth: 6MP sensor and H.265/WiseStream II deliver crisp surveillance while lowering storage and network load
  • Reliable low-light and true WDR performance: built-in IR to 15m (49 ft) and 120dB WDR capture usable footage in challenging lighting and at night
  • Built-in analytics and edge storage: people counting, loitering, queue management, tamper detection plus dual SD for resilient local recording
  • Easy integration and durable design: PoE and 12VDC power options, RJ-45 network port, IP66/dustproof and vandal-resistant housing for long-term installations

Quick Specifications

Brand Name
Hanwha Vision
Manufacturer
Hanwha Group
Product Name
X Series 6 MP sensor 360° Indoor Fisheye
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Optimize your facility's surveillance coverage with the Hanwha Vision XNF-8010R X-Series 6MP indoor fisheye — a single camera engineered to replace multiple fixed cameras while improving monitoring efficiency. This network panoramic camera delivers a 192° fisheye field of view from a 1.6mm fixed lens and a 6MP sensor that preserves critical detail for identification and evidence. Intelligent compression with H.265 and WiseStream II reduces bandwidth and storage costs without sacrificing image quality, while true 120dB WDR and built-in IR (up to 15 m / 49 ft) ensure clear images in backlit or low-light scenes. Built-in analytics — including people counting, loitering and queue management — turn live video into actionable data for operations and security teams. Dual SD card slots and PoE simplify deployment and provide resilient edge recording for continuous monitoring. Ideal for retail, transportation hubs, corporate lobbies and public spaces where wide-area visibility, reduced infrastructure and smarter video are priorities. Contact your Hanwha Vision reseller or add to cart to start consolidating cameras and improving situational awareness today.

Features

  • 360° situational awareness from a single ceiling mount: one Hanwha XNF-8010R fisheye camera covers wide areas to reduce blind spots and fewer cameras to install
  • High-resolution detail with efficient bandwidth: 6MP sensor and H.265/WiseStream II deliver crisp surveillance while lowering storage and network load
  • Reliable low-light and true WDR performance: built-in IR to 15m (49 ft) and 120dB WDR capture usable footage in challenging lighting and at night
  • Built-in analytics and edge storage: people counting, loitering, queue management, tamper detection plus dual SD for resilient local recording
  • Easy integration and durable design: PoE and 12VDC power options, RJ-45 network port, IP66/dustproof and vandal-resistant housing for long-term installations
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name X Series 6 MP sensor 360° Indoor Fisheye
Product Type Network Camera
Product Model XNF-8010R
Product Series X
Manufacturer Part Number XNF-8010R
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View H : 192 ? / V : 192 ? / D : 19
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 1.6mm
Connectivity Technology Wired
Effective Camera Resolution 6MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 49.21 ft
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature 14°F (-10°C)
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 1.6mm
Lens Included Yes
Maximum Focal Length 1.6mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Height 2.2"
Weight 1.61lb
Durability Dustproof, Vandal Resistant, Waterproof
Form Factor Fisheye
Power Description
Input Voltage 12V DC
Product Information
Diameter 5.7"
Mount Type Ceiling Mount, Wall Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features Back Light Compensation (BLC), Built-in IR LED, Day/Night, Highlight Compensation (HLC), SD Card Local Storage
Indoor/Outdoor Indoor
Country of Origin KR
