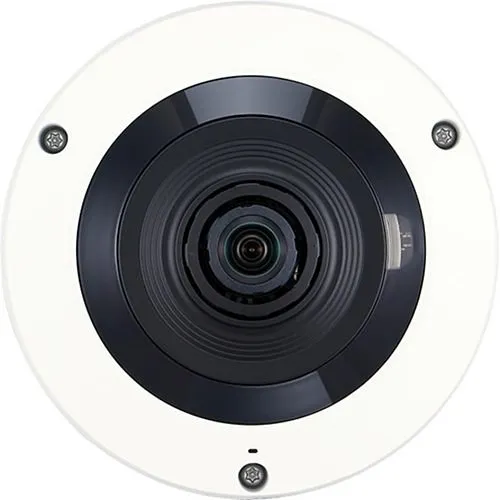

Hanwha XNF-8010RW X-Series 6MP IR Indoor Fisheye Camera, 1.6mm Fixed Lens, White

SKU: XNF-8010RW Hanwha Vision
Wisenet XNF-8010RW 6 Megapixel Network Camera
Product images for Hanwha XNF-8010RW X-Series 6MP IR Indoor Fisheye Camera, 1.6mm Fixed Lens, White. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • True 360° coverage with a 1.6mm fisheye lens to eliminate blind spots and simplify site monitoring
  • 6MP resolution captures actionable detail for identification and evidence-quality video
  • Built-in IR (up to 15 m) and 0.1 lux low-light performance for reliable 24/7 surveillance
  • On-board dewarping, multiple view modes and Digital PTZ for flexible viewing and faster incident review
  • H.265 + WiseStream support and SD card recording reduce bandwidth and storage costs for scalable deployments
  • NDAA-compliant design and PoE power simplify secure, standards-ready installation

Quick Specifications

Brand Name
Hanwha Vision
Manufacturer
Hanwha Vision
Product Name
X series 6 MP sensor 360° Indoor IR Fisheye (white)
Product Type
Fisheye Camera
View Full Technical Specifications

Product Information Tabs

Overview

Optimize indoor security and reduce camera counts with the Hanwha Vision XNF-8010RW 6MP indoor fisheye camera. Designed for enterprise surveillance and perimeter monitoring inside facilities, this panoramic camera delivers full-area coverage with a 1.6mm fisheye lens and a high-resolution 6MP sensor so operators capture clear facial and scene detail without multiple cameras. Built-in 15 m IR and 0.1 lux sensitivity ensure reliable night-time monitoring, while on-board dewarping and multiple view modes (single/double/quad/panoramic) let you present footage the way your security team needs it. H.265 and WiseStream compression reduce network load and storage costs; dual SD slots (up to 512 GB) add resilient local recording. Packed with smart analytics — people counting, heatmap, loitering and tamper detection — the XNF-8010RW streamlines alerts and improves situational awareness. NDAA-compliant and supporting PoE for easy installation, it’s ideal for lobbies, retail, offices and transportation hubs. Upgrade your surveillance strategy with Hanwha Vision panoramic performance — contact sales or add to cart to deploy smarter monitoring today.

Features

  • True 360° coverage with a 1.6mm fisheye lens to eliminate blind spots and simplify site monitoring
  • 6MP resolution captures actionable detail for identification and evidence-quality video
  • Built-in IR (up to 15 m) and 0.1 lux low-light performance for reliable 24/7 surveillance
  • On-board dewarping, multiple view modes and Digital PTZ for flexible viewing and faster incident review
  • H.265 + WiseStream support and SD card recording reduce bandwidth and storage costs for scalable deployments
  • NDAA-compliant design and PoE power simplify secure, standards-ready installation
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name X series 6 MP sensor 360° Indoor IR Fisheye (white)
Product Type Fisheye Camera
Product Model XNF-8010RW
Product Series X
Manufacturer Part Number XNF-8010RW
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 1.6mm
Connectivity Technology Wired
Field of View (Vertical) 192°
Field of View (Horizontal) 192°
Effective Camera Resolution 6MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 49.21 ft
Certifications
NDAA Compliant Yes
Display & Graphics
Maximum Video Resolution 3096 x 2094
Environmental Conditions
Operating Humidity 90% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature 14°F
Exposure
Minimum Illumination 0.1 lux
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 2 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 1.6mm
Lens Included Yes
Maximum Focal Length 1.6mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Width 5.7"
Height 2.2"
Weight 1.61lb
Form Factor Fisheye
Power Description
Input Voltage 12V DC
Product Information
Diameter 5.7"
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features Alarm Triggering, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, White Balance
Indoor/Outdoor Indoor
Country of Origin VN
