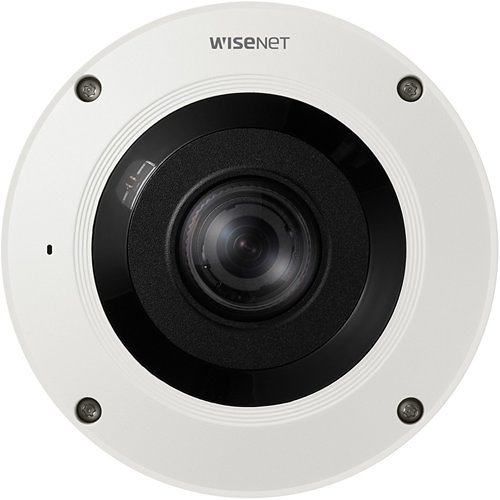

Hanwha XNF-9010RVM Series 12 MP IR Fisheye Camera, Mobile Exclusive, 1.08mm, White
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features

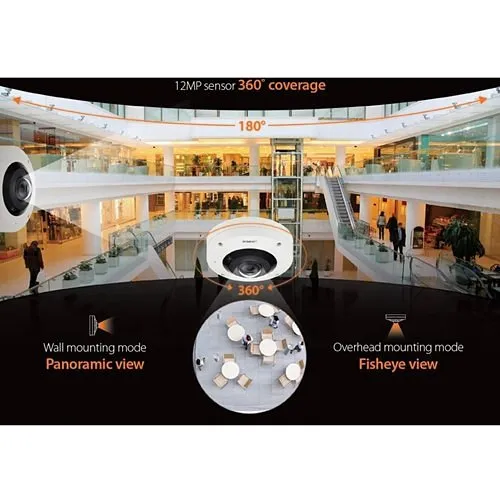

- Complete 360° coverage from a single ceiling or wall-mounted unit to eliminate blind spots and reduce total system cost
- 12MP sensor and 1.08mm stereo-graphic lens deliver high-detail panoramic images for accurate identification and wide-area monitoring
- Wise IR with optimized illumination and 10m night viewing ensures consistent low-light performance for round-the-clock surveillance
- On-board dewarping and multiple view modes (fisheye, single/double/quad panorama) simplify monitoring and reduce need for additional VMS processing
- H.265 + WiseStream II compression lowers bandwidth and storage requirements without sacrificing image quality
- Rugged, NDAA-compliant IP66 / IK10 design withstands harsh environments for reliable outdoor and indoor security deployments
Quick Specifications
- Product Model
- XNF-9010RVM
- Brand Name
- Hanwha Vision
- Product Name
- 12MP IR Fisheye Camera - For Mobile Use
- Product Type
- Network Camera
Frequently Bought Together
Hanwha XNF-9010RVM Series 12 MP IR Fisheye Camera, Mobile Exclusive, 1.08mm, White
$771.12
10 items selected
Total: $2,563.93
Explore the details
Product information
XNF-9010RVM
Overview
Protect large spaces with a single, high-resolution panoramic camera built for reliable security monitoring. The Hanwha Vision XNF-9010RVM 12 MP IR fisheye network camera delivers full 360° situational awareness in one compact unit, making it ideal for retail floors, transportation hubs, warehouses and campus monitoring. The 12MP sensor combined with a 1.08mm stereo-graphic lens provides crisp edge-to-edge detail and enhanced peripheral resolution for top-down or wall-mounted installations. Wise IR maintains balanced illumination up to 10 meters for clear night surveillance, while extreme WDR (120 dB) and 30 fps capture reduce motion artifacts in challenging lighting. On-board dewarping, digital PTZ and multiple view modes (fisheye, single/double/quad panorama) streamline live monitoring and evidence review. H.265, H.264 and WiseStream II support minimize bandwidth and storage demands—critical for networked security deployments. With IP66 weatherproofing, IK10 impact resistance and NDAA compliance, this panoramic camera is built for demanding environments. Add the Hanwha XNF-9010RVM to your system to consolidate cameras, simplify monitoring, and improve perimeter and interior security—contact sales or configure for your next project.
Features
- Complete 360° coverage from a single ceiling or wall-mounted unit to eliminate blind spots and reduce total system cost
- 12MP sensor and 1.08mm stereo-graphic lens deliver high-detail panoramic images for accurate identification and wide-area monitoring
- Wise IR with optimized illumination and 10m night viewing ensures consistent low-light performance for round-the-clock surveillance
- On-board dewarping and multiple view modes (fisheye, single/double/quad panorama) simplify monitoring and reduce need for additional VMS processing
- H.265 + WiseStream II compression lowers bandwidth and storage requirements without sacrificing image quality
- Rugged, NDAA-compliant IP66 / IK10 design withstands harsh environments for reliable outdoor and indoor security deployments
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | 12MP IR Fisheye Camera - For Mobile Use |
| Product Type | Network Camera |
| Product Model | XNF-9010RVM |
| Product Series | X |
| Manufacturer Part Number | XNF-9010RVM |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2.2 |
| Maximum Frame Rate | 30fps |
| Video Signal Format | NTSC, PAL |
| Minimum Focal Length | 1mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 187° |
| Field of View (Horizontal) | 187° |
| Effective Camera Resolution | 12MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 32.81 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 0.95 |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 1.08mm |
| Lens Included | Yes |
| Maximum Focal Length | 1.08mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 2.43lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Fisheye |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 6.3" |
| Mount Type | Wall Mount |
| Storage | |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS |
| Miscellaneous | |
| Features | Alarm Triggering, Audio Compression, Back Light Compensation (BLC), Built-in Card Reader, Built-in HLC, Built-in Microphone, Day/Night, Digital Noise Reduction, Motion Detection, Privacy Masking |
| Country of Origin | VN |
| Impact Protection Rating | IK10 |
