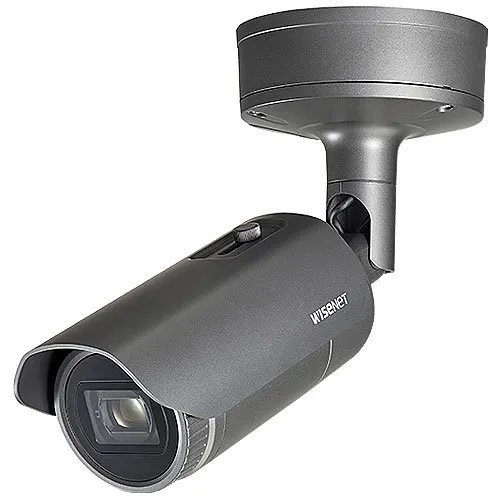

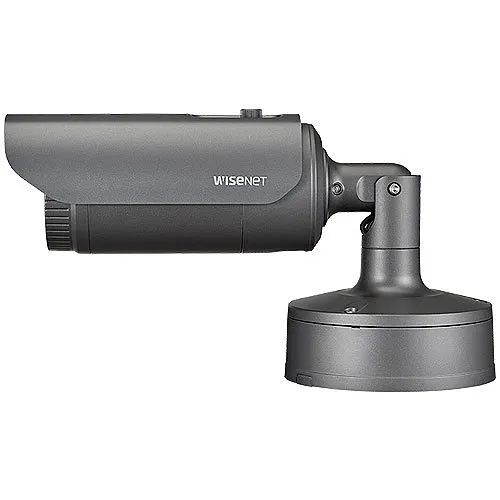

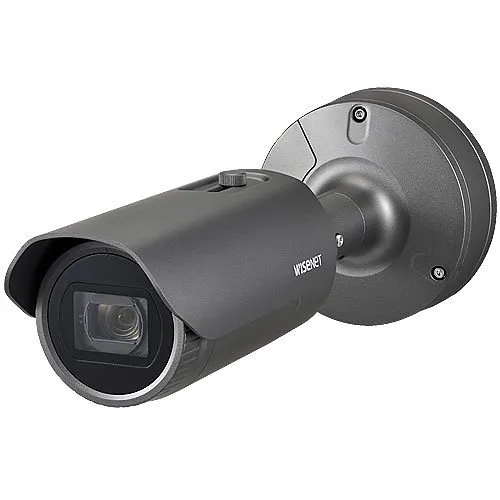

Hanwha XNO-6120R X-Series 2MP 12x Optical Zoom IR Bullet Camera, 5.2-62.4mm Varifocal Lens, Gray

SKU: XNO-6120R Hanwha Vision
Wisenet XNO-6120R 2 Megapixel Indoor/Outdoor Full HD Network Camera - Color - Bullet
Product images for Hanwha XNO-6120R X-Series 2MP 12x Optical Zoom IR Bullet Camera, 5.2-62.4mm Varifocal Lens, Gray. 4 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Clear long-range day/night monitoring with 12x optical zoom and IR up to 70m for reliable perimeter surveillance
  • Superior image quality and bandwidth efficiency using Hanwha Vision X-series chipset with H.265 and 60fps support
  • Exceptional performance in challenging light with 150dB WDR and Defog for improved identification and monitoring
  • Rugged outdoor reliability: IP66/IP67, NEMA 4X and IK10 vandal resistance for harsh environments
  • Smart analytics and proactive security: loitering, directional detection, digital auto-tracking, tamper and audio detection
  • Flexible deployment with RJ-45 network connectivity, on-board SD storage (up to 512GB) and multiple power options

Quick Specifications

Product Model
XNO-6120R
Brand Name
Hanwha Vision
Product Name
2MP Network IR 12X optical zoom bullet camera
Product Type
Zoom Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Built for reliable long-range security monitoring, the Hanwha Vision XNO-6120R is a 2MP 12x optical zoom IR bullet camera that delivers clear, actionable video around the clock. The X-series chipset processes high-quality 1080p footage at up to 60fps while H.265 compression reduces bandwidth and storage costs—ideal for networked surveillance systems. The 5.2–62.4mm varifocal lens and 12x optical zoom let operators identify details at a distance, while infrared illumination (up to ~70m / 230 ft) ensures effective night coverage.

Designed for real-world installations, the camera provides 150dB WDR and Defog to handle backlight and adverse weather, plus WiseStream II support for further efficiency. Built-in analytics—loitering, directional detection, digital auto-tracking, tamper and audio detection—enable proactive security and simplified monitoring workflows. Rugged IP66/IP67 and IK10 ratings mean this bullet camera withstands harsh outdoor conditions and vandal attempts. With local SD storage up to 512GB and flexible power/networking, it integrates easily into existing CCTV or IP security deployments. Ideal for perimeter protection, parking lots, and critical infrastructure—specify the XNO-6120R for dependable surveillance performance.

Features

  • Clear long-range day/night monitoring with 12x optical zoom and IR up to 70m for reliable perimeter surveillance
  • Superior image quality and bandwidth efficiency using Hanwha Vision X-series chipset with H.265 and 60fps support
  • Exceptional performance in challenging light with 150dB WDR and Defog for improved identification and monitoring
  • Rugged outdoor reliability: IP66/IP67, NEMA 4X and IK10 vandal resistance for harsh environments
  • Smart analytics and proactive security: loitering, directional detection, digital auto-tracking, tamper and audio detection
  • Flexible deployment with RJ-45 network connectivity, on-board SD storage (up to 512GB) and multiple power options
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 2MP Network IR 12X optical zoom bullet camera
Product Type Zoom Camera
Product Model XNO-6120R
Product Series X
Manufacturer Part Number XNO-6120R
Technical Information
Night Vision Yes
Optical Zoom 12x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG, MPEG-4
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 60fps
Minimum Focal Length 5.2mm
Connectivity Technology Wired
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 229.66 ft
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 90% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0.03 lux
Longest Shutter Speed 1/12000 Second
Shortest Shutter Speed 2 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 5.2-62.4mm
Lens Included Yes
Minimum Aperture f/3
Maximum Focal Length 62.4mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color Gray
Width 3.6"
Height 14.5"
Weight 4.80lb
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor Bullet
Power Description
Input Voltage 12V DC, 24V AC
Product Information
Diameter 3.6"
Mount Type Pole Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Warranty
Limited Warranty 3-Year
Miscellaneous
Features 2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Alarm Triggering, Audio Compression, Audio Detection, Auto Gain Control, Automatic Defog, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Digital Image Stabilization, Face Detection, Highlight Compensation (HLC), Motion Detection, Privacy Masking, SD Card Local Storage, Wide Dynamic Range
Indoor/Outdoor Indoor
Country of Origin KR
Impact Protection Rating IK10
