Hanwha XNO-8080R X-Series 5MP IR Bullet Camera, 3.7-9.4mm Varifocal Lens, Gray

SKU: XNO-8080R Hanwha Vision
Hanwha XNO-8080R Wisenet X-Series 5MP IR Bullet Camera, 3.7-9.4mm Varifocal Lens

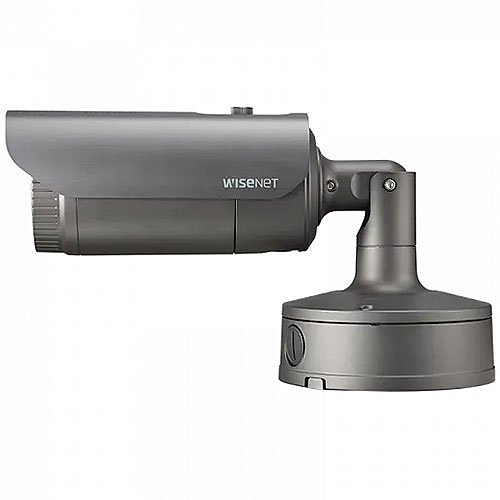

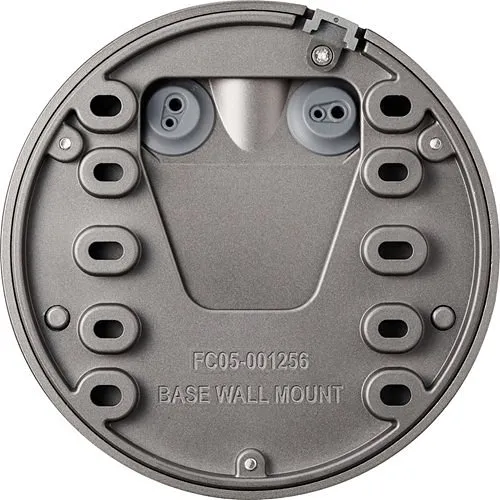

Product images for Hanwha XNO-8080R X-Series 5MP IR Bullet Camera, 3.7-9.4mm Varifocal Lens, Gray. 3 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Delivers actionable 5MP imagery for reliable identification and incident review, even in low light with 50m IR night vision.
  • Motorized 3.7–9.4mm varifocal lens lets integrators quickly adjust framing on-site to cover entrances, perimeters or parking areas.
  • Advanced analytics (loitering, directional/fog detection, sound classification, tamper & motion) reduce false alarms and speed response.
  • Robust outdoor protection (IP66/IP67, NEMA 4X, IK10) ensures continuous operation in harsh environments and high-traffic locations.
  • Efficient streaming and storage with H.265, WiseStream II and multi-codec support to lower bandwidth and retention costs.

Quick Specifications

Product Model
XNO-8080R
Brand Name
Hanwha Vision
Product Line
WiseNet
Product Name
5MP Network IR Bullet Camera
View Full Technical Specifications

Explore the details

Product information

XNO-8080R

Overview

Optimize perimeter and facility monitoring with the Hanwha Vision XNO-8080R X-Series 5MP IR Bullet Camera. Built for commercial security and critical infrastructure, this network bullet camera delivers crisp 5MP resolution and a fast f/1.2 varifocal lens (3.7–9.4 mm) so you can finely tailor coverage for gates, loading docks, parking lots and building exteriors. Low-light performance is strengthened by built-in IR illumination (up to ~50m / 164 ft) and 120dB WDR for balanced detail in high-contrast scenes.

The XNO-8080R reduces operational overhead with efficient H.265 compression and WiseStream II support, while on-board analytics—loitering, directional and fog detection, audio classification and digital auto-tracking—cut false alerts and help security teams prioritize real events. Rated IP66/IP67, NEMA 4X and IK10, this camera stands up to weather and vandalism for long-term outdoor deployment. NDAA and TAA compliance make it suitable for government and enterprise projects.

For integrators and security managers seeking dependable, high-resolution surveillance and lower bandwidth costs, the Hanwha Vision XNO-8080R is an ideal choice. Contact your supplier to specify this camera for perimeter, campus or critical infrastructure monitoring.

Features

  • Delivers actionable 5MP imagery for reliable identification and incident review, even in low light with 50m IR night vision.
  • Motorized 3.7–9.4mm varifocal lens lets integrators quickly adjust framing on-site to cover entrances, perimeters or parking areas.
  • Advanced analytics (loitering, directional/fog detection, sound classification, tamper & motion) reduce false alarms and speed response.
  • Robust outdoor protection (IP66/IP67, NEMA 4X, IK10) ensures continuous operation in harsh environments and high-traffic locations.
  • Efficient streaming and storage with H.265, WiseStream II and multi-codec support to lower bandwidth and retention costs.
53 of 53 specifications
Technical specifications for Hanwha XNO-8080R X-Series 5MP IR Bullet Camera, 3.7-9.4mm Varifocal Lens, Gray
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Line WiseNet
Product Name 5MP Network IR Bullet Camera
Product Type Network Camera
Product Model XNO-8080R
Product Series X
Manufacturer Part Number XNO-8080R
Technical Information
Lens Type Varifocal
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG, MPEG-4
Maximum Aperture f/1.2
Maximum Frame Rate 30fps
Wide Dynamic Range Yes
Video Signal Format NTSC, PAL
Minimum Focal Length 3.70mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Night Vision Distance 164.04'
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 90%
Maximum Operating Temperature 131°F
Minimum Operating Temperature -40°F
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.7-9.4mm
Lens Included Yes
Maximum Focal Length 9.40mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color Gray
Depth 14.50"
Width 3.60"
Height 15.20"
Weight 4.81lb
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof
Form Factor Bullet
Power Description
Input Voltage 12V DC, 24V AC
Product Information
Diameter 3.60"
Mount Type Pole Mount
Storage
Storage Type Memory Card
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Warranty
Limited Warranty 5-Year
Miscellaneous
Features Automatic White Balance, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Wide Dynamic Range
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
