Hanwha XNP-6400 X-Series 2MP PTZ Dome Camera, 40x Optical Zoom Lens, Black/Signal White

SKU: XNP-6400 Hanwha Vision
Wisenet XNP-6400 2 Megapixel Network Camera - Dome

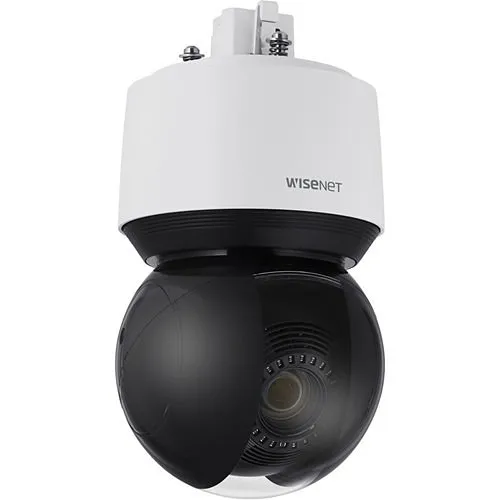

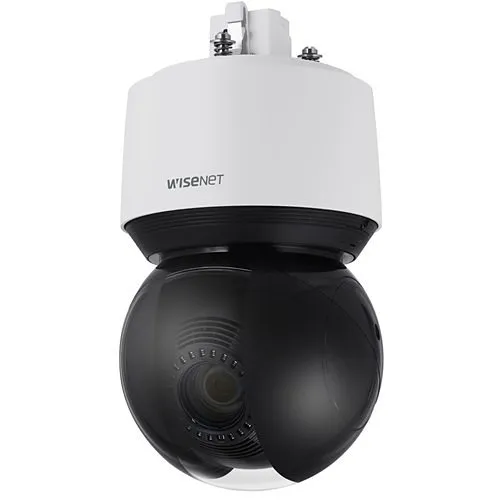

Product images for Hanwha XNP-6400 X-Series 2MP PTZ Dome Camera, 40x Optical Zoom Lens, Black/Signal White. 3 image(s) available. Click on image to view full size.
NDAA Compliant TAA Compliant

Key Features

  • Long-range visual coverage with a 40x optical zoom to identify faces, license plates and distant activity without sacrificing detail
  • Durable, all-weather design (IP66/IK10, -40°F to 131°F) for reliable outdoor perimeter security and continuous surveillance
  • Intelligent on-board analytics and WiseNet 7 processing for automated event detection, object tracking and reduced false alarms
  • Flexible installation and simplified cabling with PoE+ support and multiple mount options to lower deployment time and costs
  • Local failover recording with dual SD slots and built-in stabilization for uninterrupted monitoring in harsh or mobile environments

Quick Specifications

Product Model
XNP-6400
Brand Name
Hanwha Vision
Product Name
2MP Network 40x PTZ Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Keep large sites secured and monitored with confidence using the Hanwha Vision XNP-6400 PTZ camera. Built for enterprise-grade security and remote surveillance, this 2MP PTZ dome combines a powerful 40x optical zoom lens with WiseNet 7 processing to deliver clear, actionable imagery at long distances. The camera’s smart analytics—including auto-tracking for people and vehicles—reduces manual monitoring and speeds incident response, while WiseStream II and H.265 compression optimize bandwidth and storage costs.

Engineered for outdoor deployment, the XNP-6400 features IP66/IK10/NEMA4X-rated protection and an extended temperature range, so it withstands dust, impact and extreme climates. Installers benefit from PoE+ support and a compact PTZ PLUS design that simplifies cabling and mounting on poles, walls or ceilings. With dual SD card slots and digital image stabilization, the camera keeps recording during network interruptions and minimizes motion blur in high-activity zones.

Ideal for perimeter security, critical infrastructure, transportation hubs and campus monitoring, the Hanwha Vision XNP-6400 delivers robust surveillance and actionable insights—contact us to discuss deployment options or request a quote.

Features

  • Long-range visual coverage with a 40x optical zoom to identify faces, license plates and distant activity without sacrificing detail
  • Durable, all-weather design (IP66/IK10, -40°F to 131°F) for reliable outdoor perimeter security and continuous surveillance
  • Intelligent on-board analytics and WiseNet 7 processing for automated event detection, object tracking and reduced false alarms
  • Flexible installation and simplified cabling with PoE+ support and multiple mount options to lower deployment time and costs
  • Local failover recording with dual SD slots and built-in stabilization for uninterrupted monitoring in harsh or mobile environments
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 2MP Network 40x PTZ Camera
Product Type Network Camera
Product Model XNP-6400
Product Series X
Manufacturer Part Number XNP-6400
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 40x
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/4.95
Maximum Frame Rate 60fps
Minimum Focal Length 4.25mm
Connectivity Technology Wired
Field of View (Vertical) 39.4°
Field of View (Horizontal) 65.66°
Effective Camera Resolution 2MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 656.17 ft
Certifications
TAA Compliant Yes
NDAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4.25-170mm
Lens Included Yes
Minimum Aperture f/1.6
Maximum Focal Length 170mm
Network & Communication
Remote Management Yes
Others
Model Number Replaces 8KPWS7-B000, XNP-6320RH, XNP-6321, XNP-6321H
Physical Characteristics
Color Black, White
Width 6.2"
Height 11.6"
Weight 7.05lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor PTZ
Product Information
Diameter 6.2"
Mount Type Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Swan Neck Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats HD
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features Alarm Triggering, Audio Detection, Auto Tracking, Automatic White Balance, Back Light Compensation (BLC), Built-in HLC, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Enter/Exit Detector, Face Detection, Gain Control, HTTPS Encryption, Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Shock Detection, Tamper Detection
Indoor/Outdoor Outdoor
Country of Origin VN
Impact Protection Rating IK10
